Exploring Drafting
Tabular chart
Goodheart-Willcox Publisher

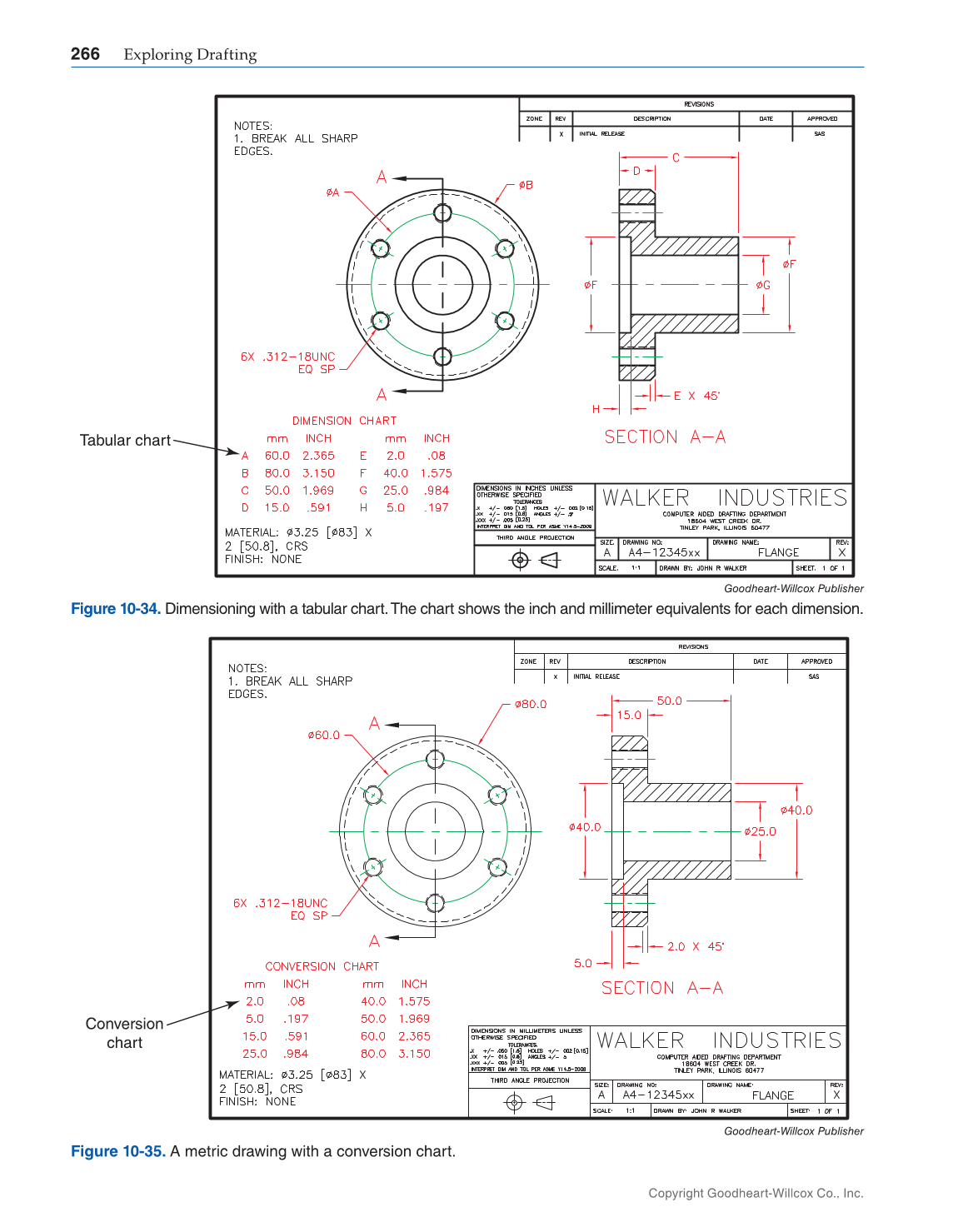

Figure 10-34. Dimensioning with a tabular chart. The chart shows the inch and millimeter equivalents for each dimension.
Conversion
chart
Goodheart-Willcox Publisher
Figure 10-35. A metric drawing with a conversion chart.
