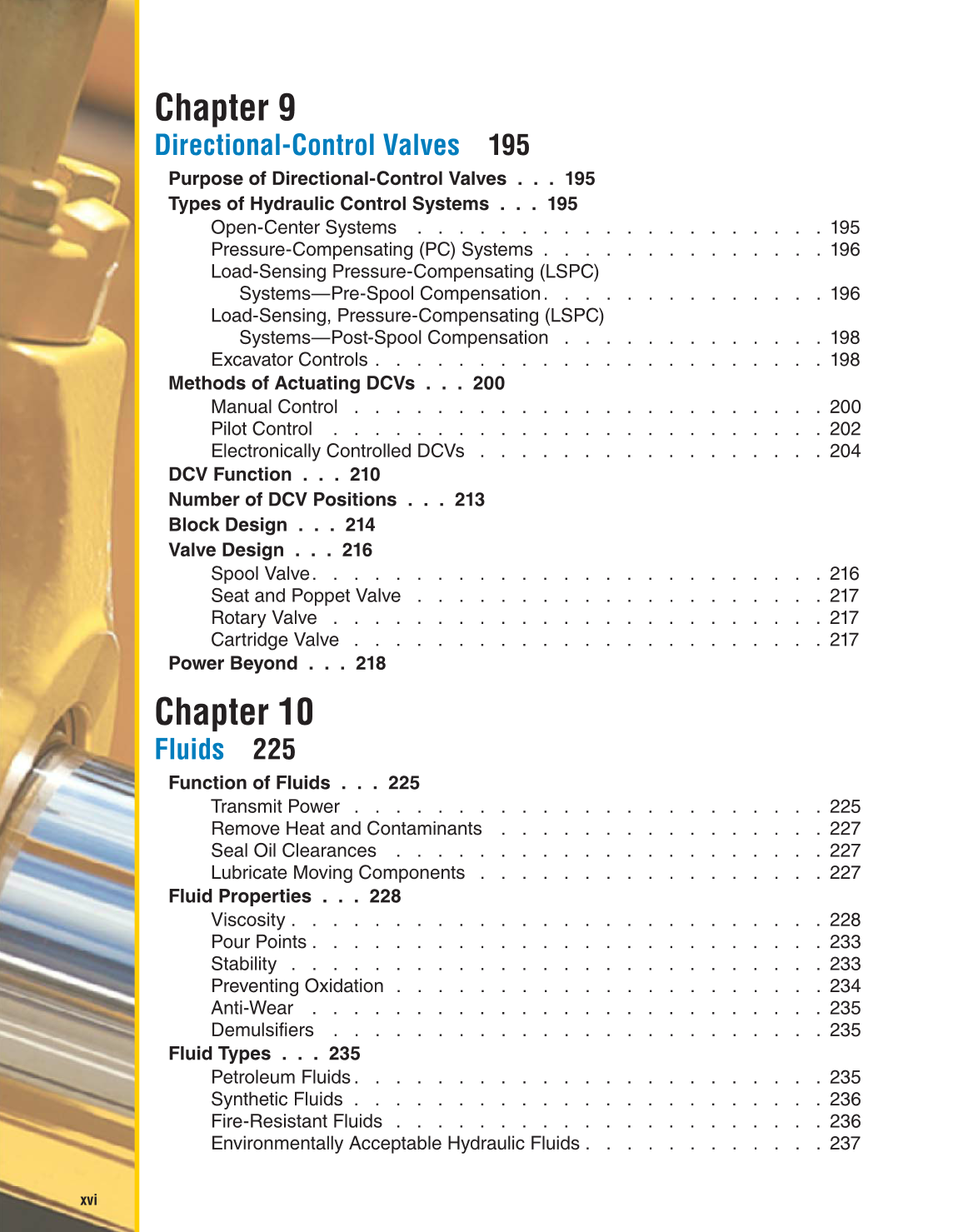

Chapter 9
Directional-Control Valves 195
Purpose of Directional-Control Valves . . . 195
Types of Hydraulic Control Systems . . . 195
Open-Center Systems . . . . . . . . . . . . . . . . . . . . 195
Pressure-Compensating (PC) Systems . . . . . . . . . . . . . . 196
Load-Sensing Pressure-Compensating (LSPC)
Systems—Pre-Spool Compensation. . . . . . . . . . . . . . 196
Load-Sensing, Pressure-Compensating (LSPC)
Systems—Post-Spool Compensation . . . . . . . . . . . . . 198
Excavator Controls . . . . . . . . . . . . . . . . . . . . . . 198
Methods of Actuating DCVs . . . 200
Manual Control . . . . . . . . . . . . . . . . . . . . . . . 200
Pilot Control . . . . . . . . . . . . . . . . . . . . . . . . 202
Electronically Controlled DCVs . . . . . . . . . . . . . . . . . 204
DCV Function . . . 210
Number of DCV Positions . . . 213
Block Design . . . 214
Valve Design . . . 216
Spool Valve. . . . . . . . . . . . . . . . . . . . . . . . . 216
Seat and Poppet Valve . . . . . . . . . . . . . . . . . . . . 217
Rotary Valve . . . . . . . . . . . . . . . . . . . . . . . . 217
Cartridge Valve . . . . . . . . . . . . . . . . . . . . . . . 217
Power Beyond . . . 218
Chapter 10
Fluids 225
Function of Fluids . . . 225
Transmit Power . . . . . . . . . . . . . . . . . . . . . . . 225
Remove Heat and Contaminants . . . . . . . . . . . . . . . . 227
Seal Oil Clearances . . . . . . . . . . . . . . . . . . . . . 227
Lubricate Moving Components . . . . . . . . . . . . . . . . . 227
Fluid Properties . . . 228
Viscosity . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Pour Points . . . . . . . . . . . . . . . . . . . . . . . . . 233
Stability . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Preventing Oxidation . . . . . . . . . . . . . . . . . . . . . 234
Anti-Wear . . . . . . . . . . . . . . . . . . . . . . . . . 235
Demulsifiers . . . . . . . . . . . . . . . . . . . . . . . . 235
Fluid Types . . . 235
Petroleum Fluids. . . . . . . . . . . . . . . . . . . . . . . 235
Synthetic Fluids . . . . . . . . . . . . . . . . . . . . . . . 236
Fire-Resistant Fluids . . . . . . . . . . . . . . . . . . . . . 236
Environmentally Acceptable Hydraulic Fluids . . . . . . . . . . . . 237
xvi
