most realistic shaded display. A more detailed shaded model, a rendered display of the
model, can be created with the
RENDER
command. A rendering is the most realistic
presentation.
Examples of the basic visual styles are shown in Figure 1-14. To change styles,
select one from the
Visual Style Controls
flyout in the viewport controls. Refer to fl
Figure 1-10C. You can also use the
VSCURRENT
command or the drop-down list in
the
View
panel on the
Home
tab or the
Visual Styles
panel on the
View
tab in the ribbon.
See Figure 1-15.
VSCURRENT
Ribbon
Home
View
View
Visual Styles
Type
VSCURRENT
VS

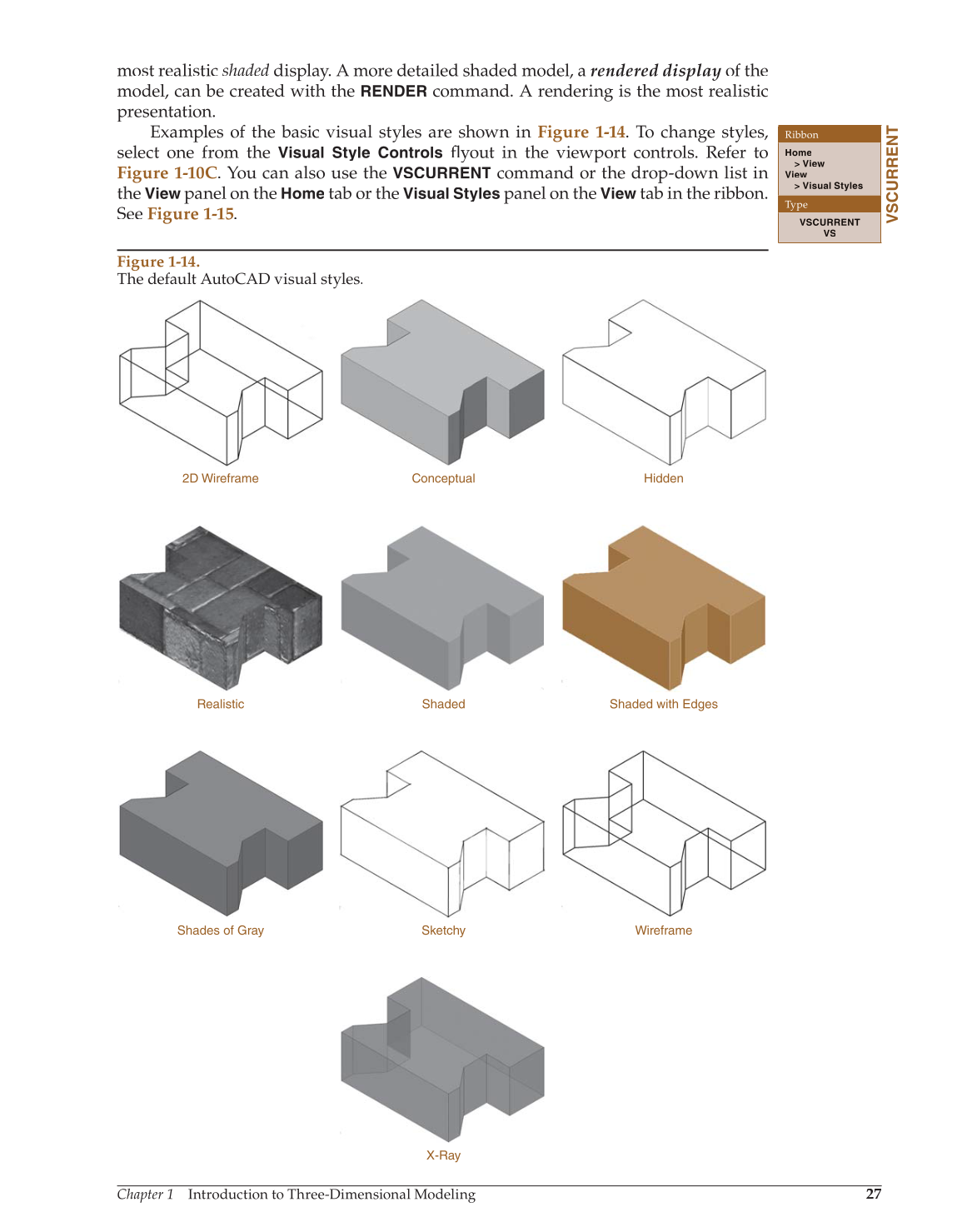

Figure 1-14.
The default AutoCAD visual styles.
Conceptual 2D Wireframe Hidden
Shaded Realistic Shaded with Edges
Sketchy
X-Ray
Shades of Gray Wireframe
