Automotive Engines
Unlike the basic one-cylinder engine just discussed,
automotive engines are multi-cylinder engines, which
means they have more than one piston and cylinder.
Vehicles commonly have 4-, 6-, 8-, or 10-cylinder
engines. The additional cylinders smooth engine operation
because there is less time (degrees of crankshaft rotation)
between power strokes. Additional cylinders also
increase power output.
An actual automotive engine is pictured in
Figure 1-10. Study the shape, location, and relationship
of the major parts.
8 Section 1 Introduction to Automotive Technology

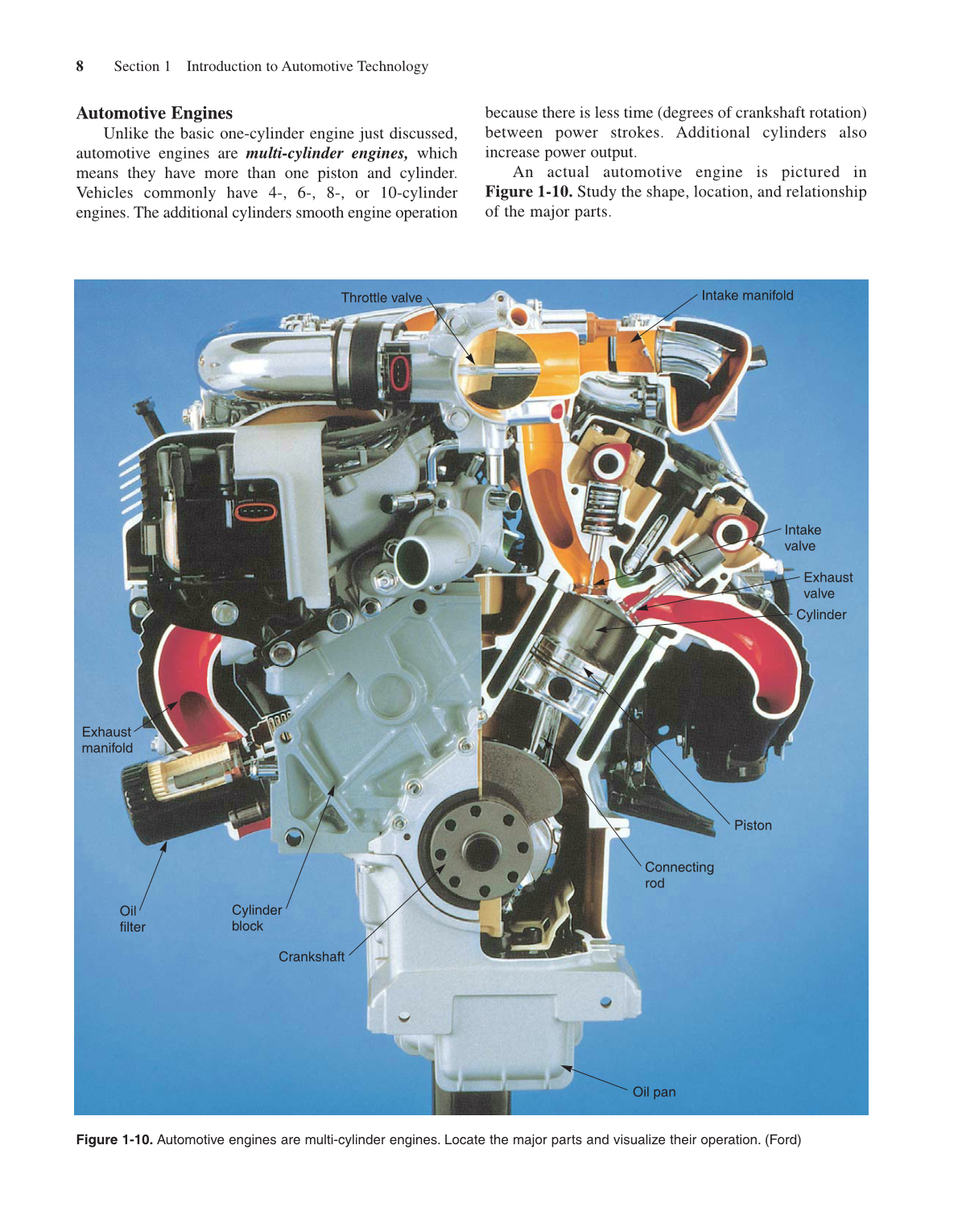

Figure 1-10. Automotive engines are multi-cylinder engines. Locate the major parts and visualize their operation. (Ford)
Exhaust
manifold
Oil
filter
Cylinder
block
Crankshaft
Oil pan
Connecting
rod
Piston
Cylinder
Exhaust
valve
Intake
valve
Intake manifold
Throttle valve
