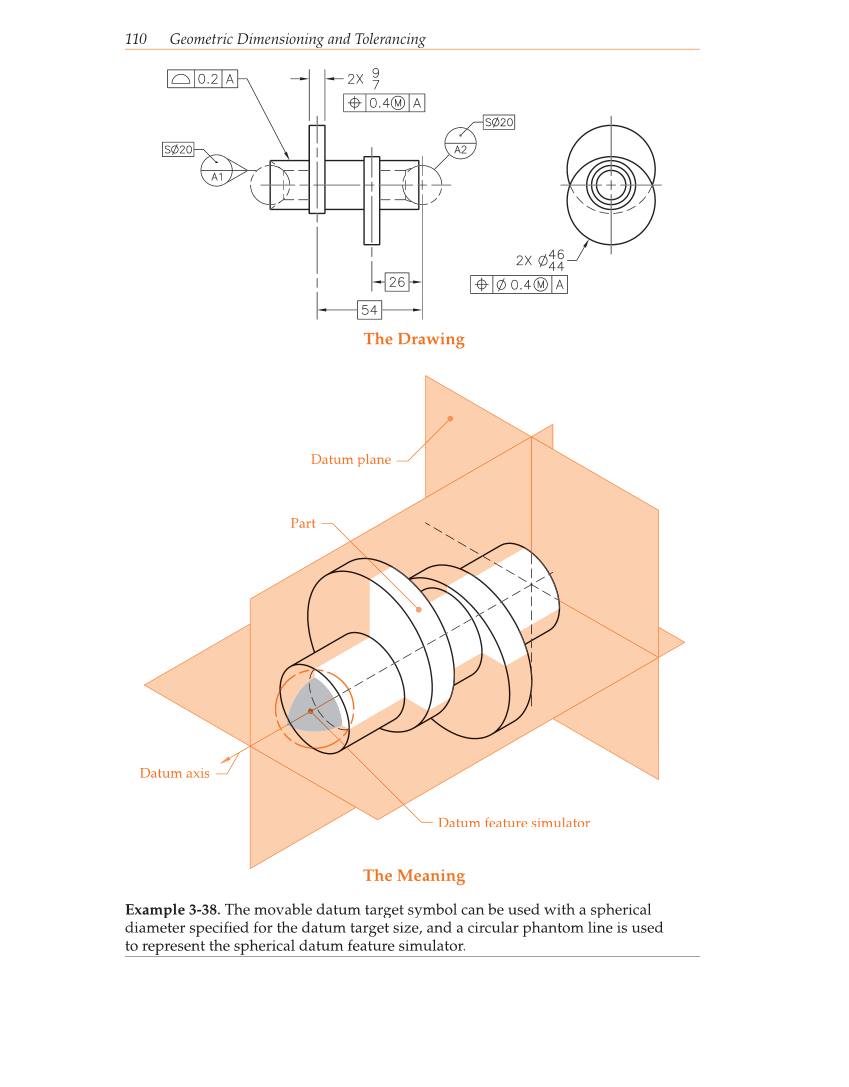

110 Geometric Dimensioning and Tolerancing The Meaning The Drawing Datum plane Part Datum axis Datum feature simulator Example 3-38. The movable datum target symbol can be used with a spherical diameter specifi ed for the datum target size, and a circular phantom line is used to represent the spherical datum feature simulator.
