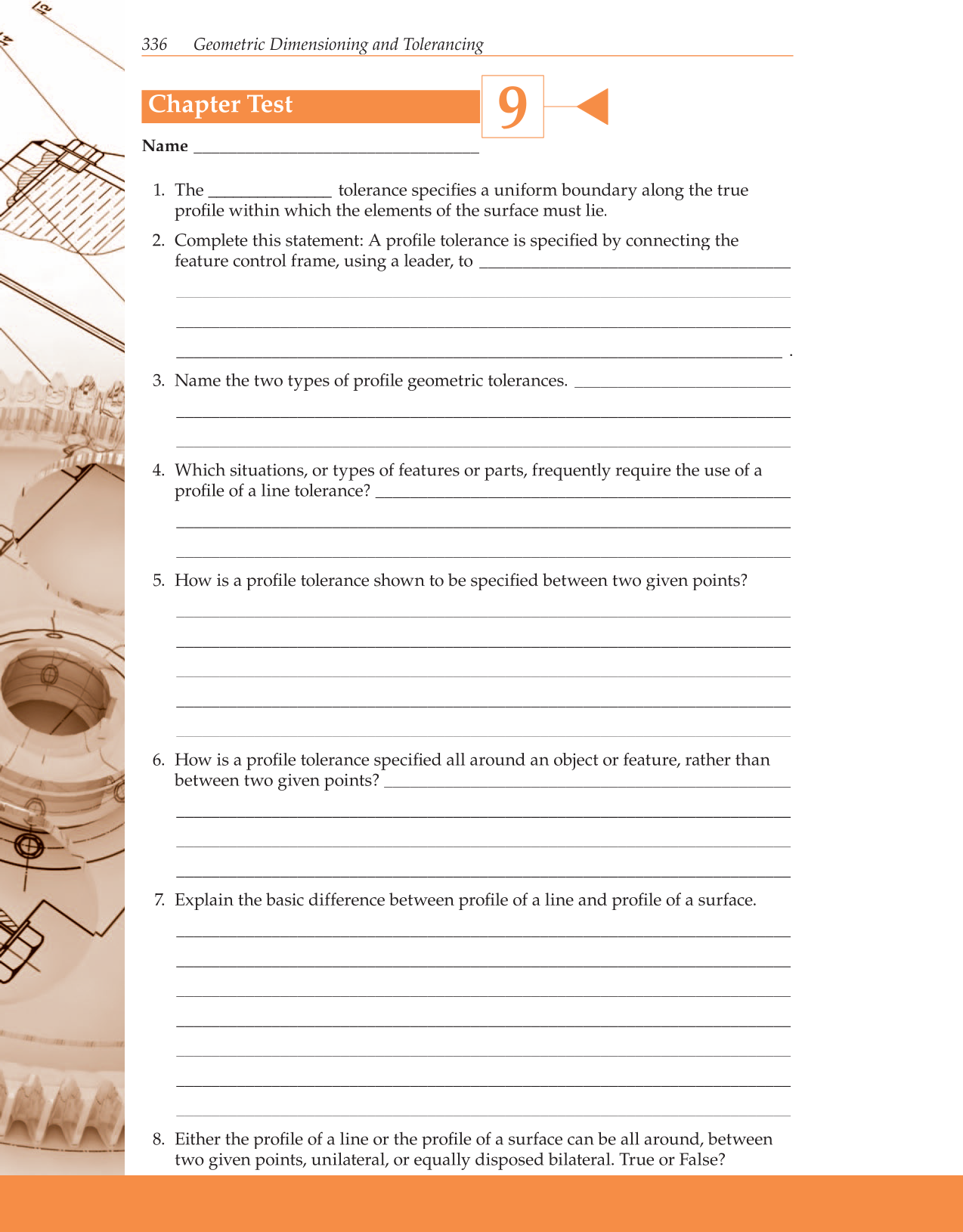

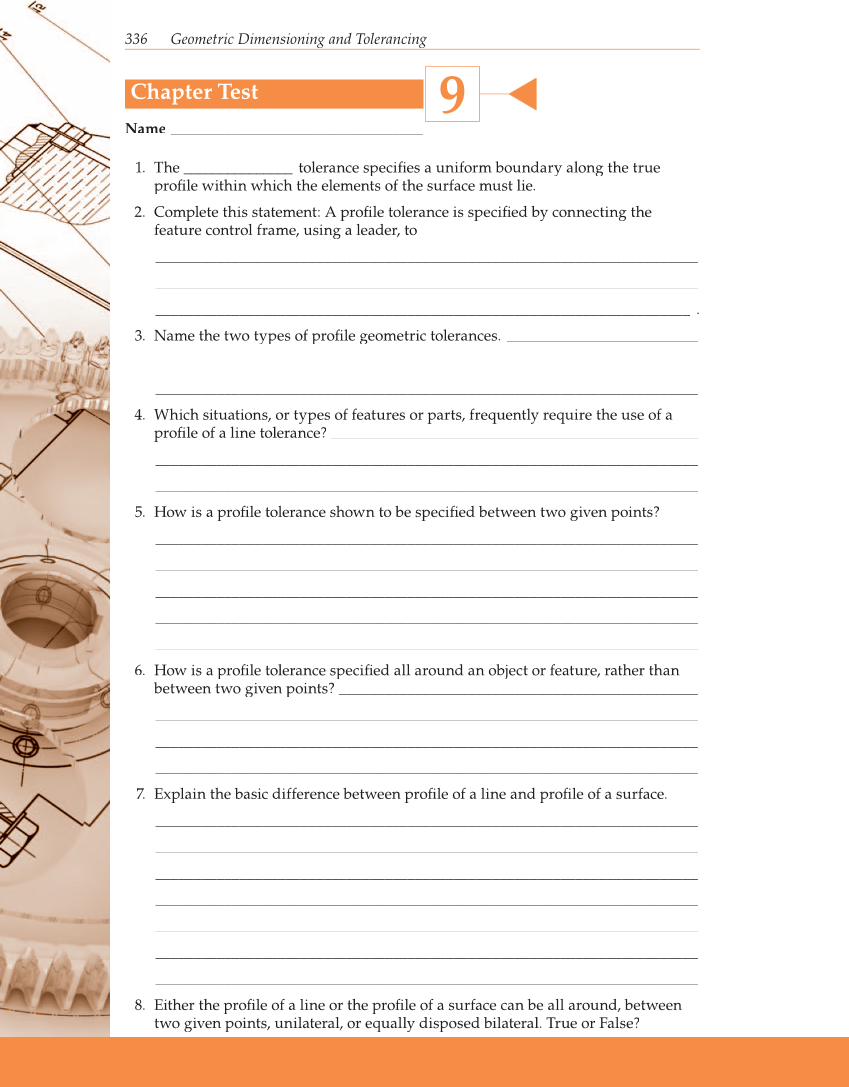

336 Geometric Dimensioning and Tolerancing Chapter Test Name _________________________________ 1. The _______________ tolerance specifi es a uniform boundary along the true profi le within which the elements of the surface must lie. 2. Complete this statement: A profi le tolerance is specifi ed by connecting the feature control frame, using a leader, to ____________________________________ _______________________________________________________________________ _______________________________________________________________________ ______________________________________________________________________ . 3. Name the two types of profi le geometric tolerances. _________________________ _______________________________________________________________________ _______________________________________________________________________ 4. Which situations, or types of features or parts, frequently require the use of a profi le of a line tolerance? ________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 5. How is a profi le tolerance shown to be specifi ed between two given points? _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 6. How is a profi le tolerance specifi ed all around an object or feature, rather than between two given points? _______________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 7. Explain the basic difference between profi le of a line and profi le of a surface. _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ 8. Either the profi le of a line or the profi le of a surface can be all around, between two given points, unilateral, or equally disposed bilateral. True or False? 9
