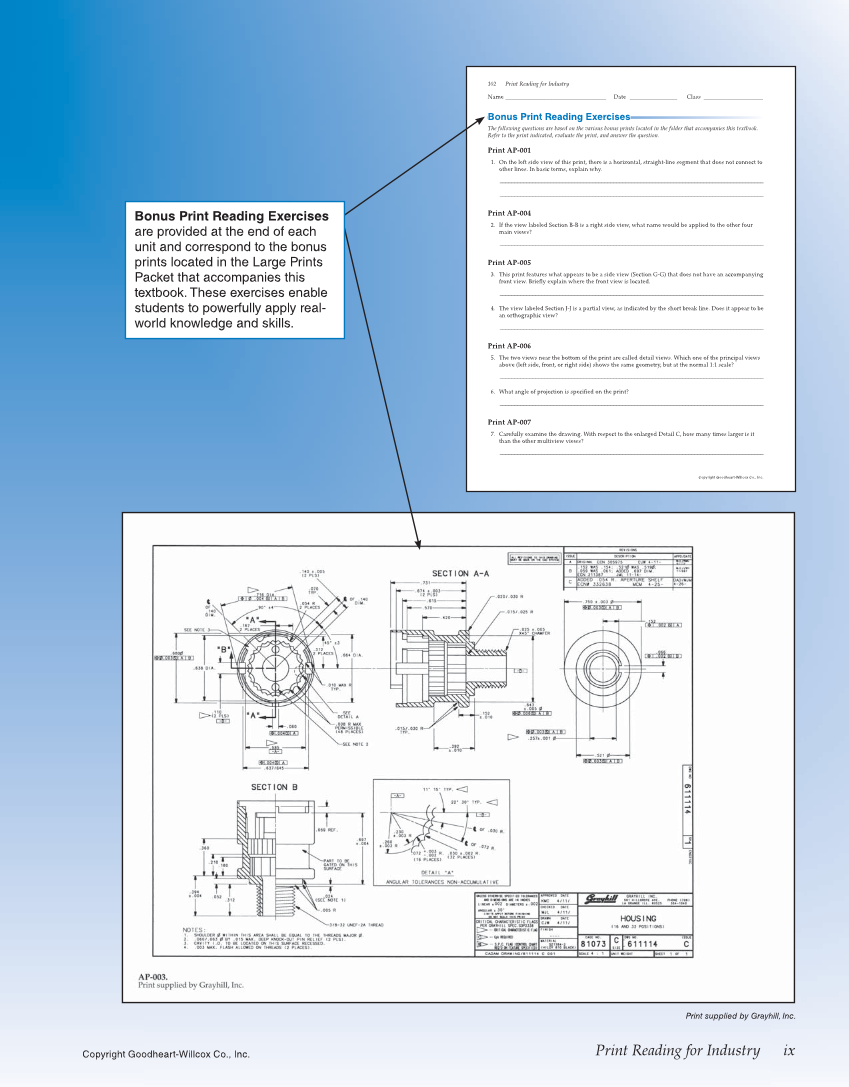

Copyright Goodheart-Willcox Co., Inc. Print Reading for Industry ix 102 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Bonus Print Reading Exercises The following questions are based on the various bonus prints located in the folder that accompanies this textbook. Refer to the print indicated, evaluate the print, and answer the question. Print AP-001 1. On the left side view of this print, there is a horizontal, straight-line segment that does not connect to other lines. In basic terms, explain why. ________________________________________________________________________________________ ________________________________________________________________________________________ Print AP-004 2. If the view labeled Section B-B is a right side view, what name would be applied to the other four main views? ________________________________________________________________________________________ Print AP-005 3. This print features what appears to be a side view (Section G-G) that does not have an accompanying front view. Briefl y explain where the front view is located. ________________________________________________________________________________________ 4. The view labeled Section J-J is a partial view, as indicated by the short break line. Does it appear to be an orthographic view? ________________________________________________________________________________________ Print AP-006 5. The two views near the bottom of the print are called detail views. Which one of the principal views above (left side, front, or right side) shows the same geometry, but at the normal 1:1 scale? ________________________________________________________________________________________ 6. What angle of projection is specifi ed on the print? ________________________________________________________________________________________ Print AP-007 7. Carefully examine the drawing. With respect to the enlarged Detail C, how many times larger is it than the other multiview views? ________________________________________________________________________________________ Bonus Print Reading Exercises are provided at the end of each unit and correspond to the bonus prints located in the Large Prints Packet that accompanies this textbook. These exercises enable students to powerfully apply real- world knowledge and skills. Print supplied by Grayhill, Inc.
