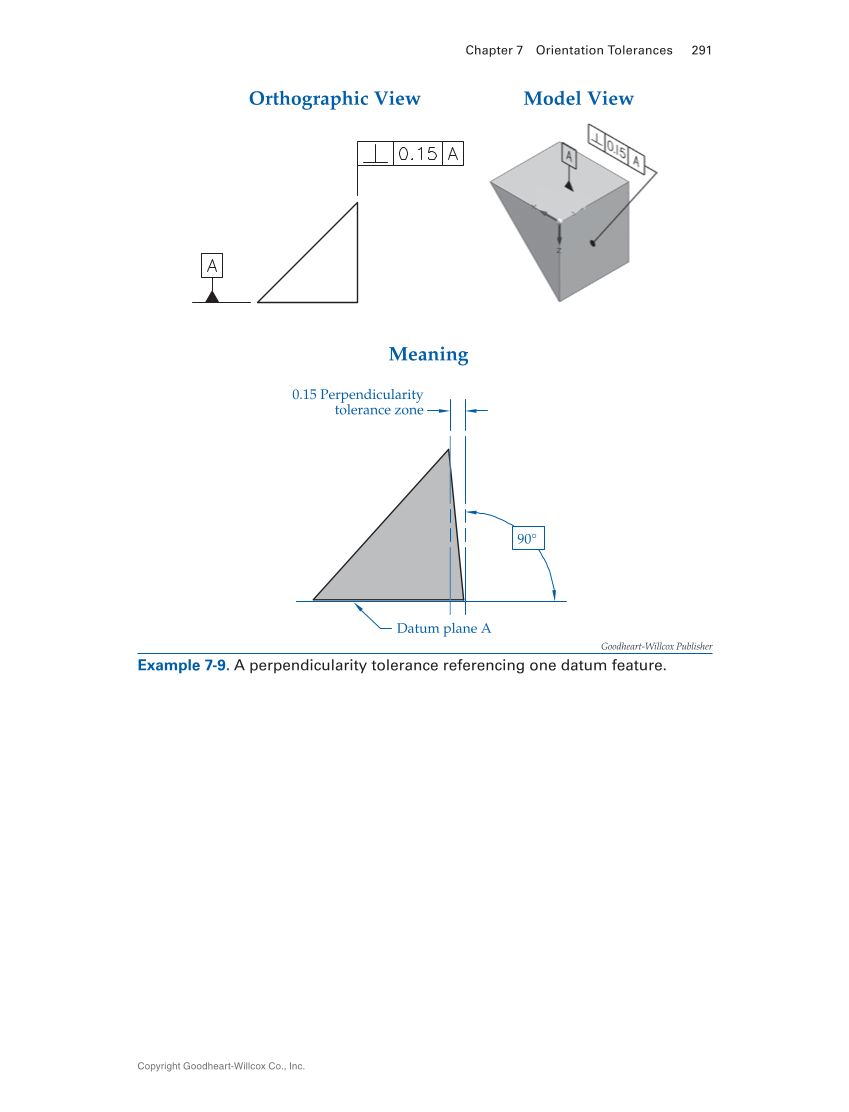

Chapter 7 Orientation Tolerances 291 Copyright Goodheart-Willcox Co., Inc. Orthographic View Meaning Datum plane A Model View 90° 0.15 Perpendicularity tolerance zone Goodheart-Willcox Publisher Example 7-9. A perpendicularity tolerance referencing one datum feature.
