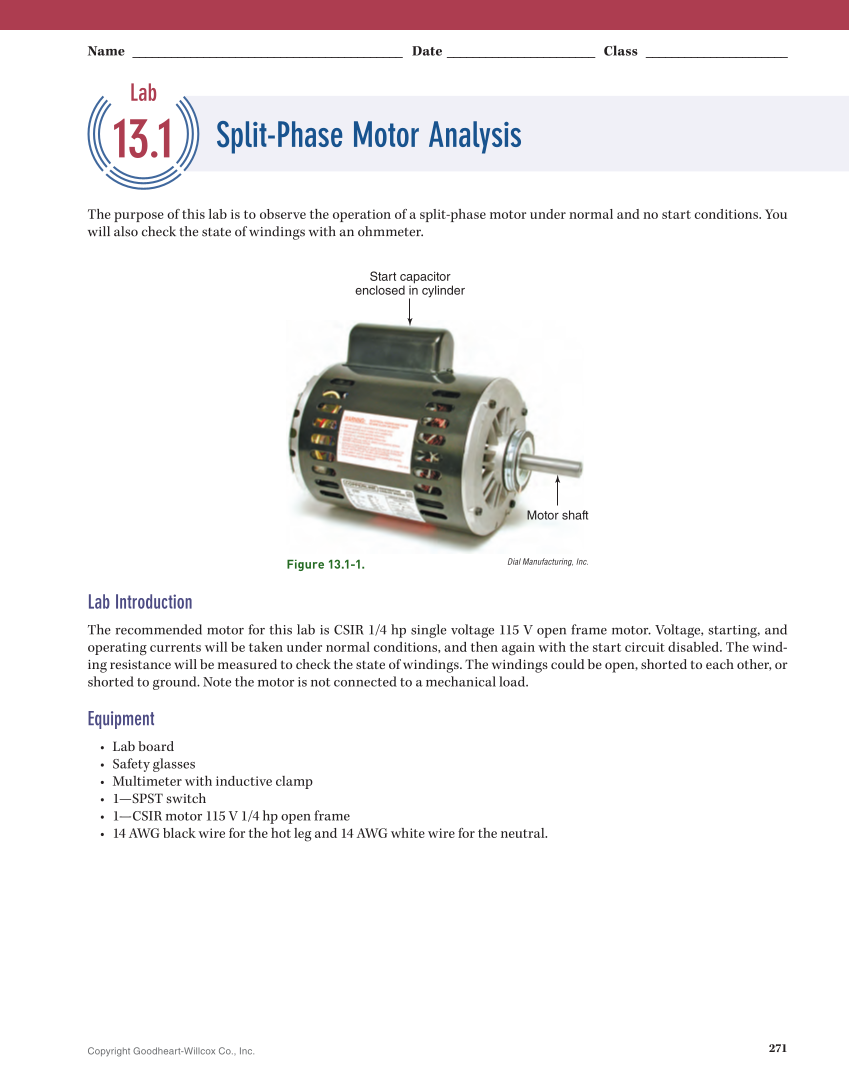

271 Copyright Goodheart-Willcox Co., Inc. Name __________________________________________ Date _______________________ Class ______________________ The purpose of this lab is to observe the operation of a split-phase motor under normal and no start conditions. You will also check the state of windings with an ohmmeter. Lab 13.1 Split-Phase Motor Analysis Start capacitor enclosed in cylinder Motor shaft Dial Manufacturing, Inc. Figure 13.1-1. Lab Introduction The recommended motor for this lab is CSIR 1/4 hp single voltage 115 V open frame motor. Voltage, starting, and operating currents will be taken under normal conditions, and then again with the start circuit disabled. The wind- ing resistance will be measured to check the state of windings. The windings could be open, shorted to each other, or shorted to ground. Note the motor is not connected to a mechanical load. Equipment • Lab board • Safety glasses • Multimeter with inductive clamp • 1—SPST switch • 1—CSIR motor 115 V 1/4 hp open frame • 14 AWG black wire for the hot leg and 14 AWG white wire for the neutral.
