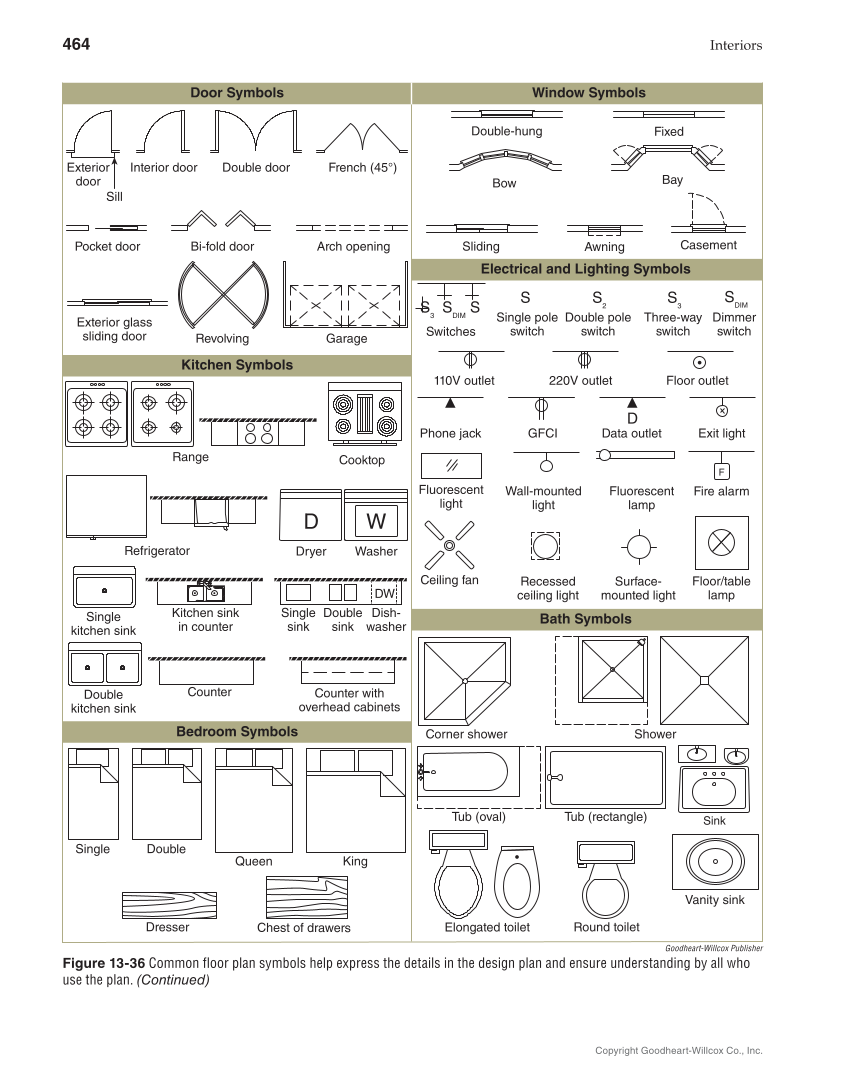

464 Interiors Copyright Goodheart-Willcox Co., Inc. Door Symbols Kitchen Symbols Bedroom Symbols Window Symbols Electrical and Lighting Symbols Bath Symbols D F S 2 S DIM S S 3 W D S 3 S DIM S DW Range Cooktop Double kitchen sink Single kitchen sink Refrigerator Dryer Washer Single sink Double sink Dish- washer Counter Counter with overhead cabinets Exterior glass sliding door Revolving Garage Pocket door Bi-fold door Arch opening Exterior door Interior door Double door French (45°) Sill Double-hung Fixed Sliding Casement Awning Bay Bow 110V outlet 220V outlet Floor outlet Phone jack GFCI Data outlet Exit light Fluorescent light Wall-mounted light Fire alarm Floor/table lamp Ceiling fan Recessed ceiling light Surface- mounted light Fluorescent lamp Single pole switch Double pole switch Three-way switch Dimmer switch Switches Corner shower Tub (oval) Tub (rectangle) Shower Sink Vanity sink Elongated toilet Round toilet Single Double Queen King Dresser Chest of drawers Kitchen sink in counter Goodheart-Willcox Publisher Figure 13-36 Common floor plan symbols help express the details in the design plan and ensure understanding by all who use the plan. (Continued)
