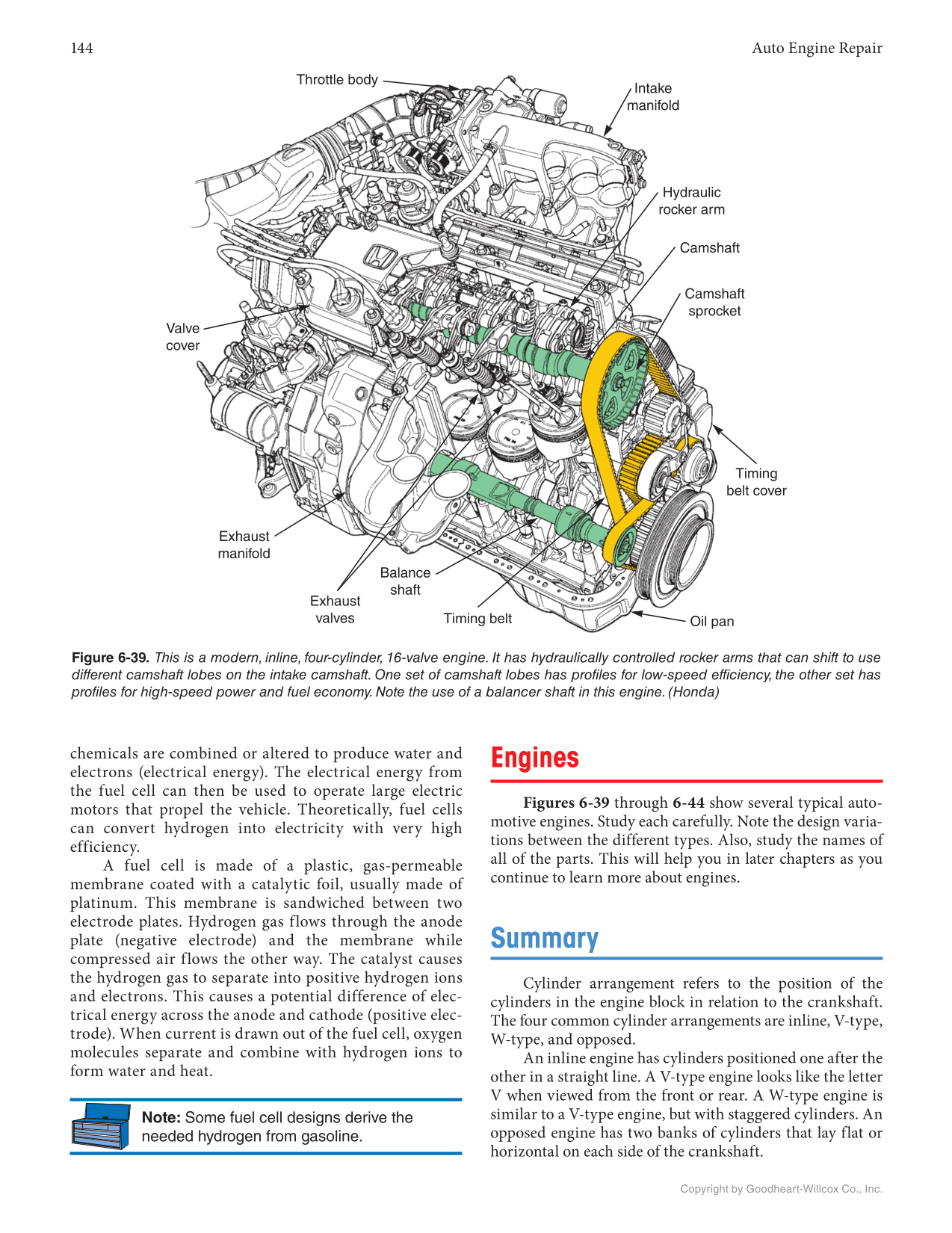

144  Auto  Engine  Repair  Copyright  by  Goodheart-Willcox  Co.,  Inc.  Throttle  body  Intake  manifold  Hydraulic  rocker  arm  Camshaft  Camshaft  sprocket  Timing  belt  cover  Oil  pan  Timing  belt  Balance  shaft  Exhaust  valves  Exhaust  manifold  Valve  cover  Figure  6-39.  This  is  a  modern,  inline,  four-cylinder,  16-valve  engine.  It  has  hydraulically  controlled  rocker  arms  that  can  shift  to  use  different  camshaft  lobes  on  the  intake  camshaft.  One  set  of  camshaft  lobes  has  profiles  for  low-speed  efficiency,  the  other  set  has  profiles  for  high-speed  power  and  fuel  economy.  Note  the  use  of  a  balancer  shaft  in  this  engine.  (Honda)  chemicals  are  combined  or  altered  to  produce  water  and  electrons  (electrical  energy).  The  electrical  energy  from  the  fuel  cell  can  then  be  used  to  operate  large  electric  motors  that  propel  the  vehicle.  Theoretically,  fuel  cells  can  convert  hydrogen  into  electricity  with  very  high  efficiency.  A  fuel  cell  is  made  of  a  plastic,  gas-permeable  membrane  coated  with  a  catalytic  foil,  usually  made  of  platinum.  This  membrane  is  sandwiched  between  two  electrode  plates.  Hydrogen  gas  flows  through  the  anode  plate  (negative  electrode)  and  the  membrane  while  compressed  air  flows  the  other  way.  The  catalyst  causes  the  hydrogen  gas  to  separate  into  positive  hydrogen  ions  and  electrons.  This  causes  a  potential  difference  of  elec-  trical  energy  across  the  anode  and  cathode  (positive  elec-  trode).  When  current  is  drawn  out  of  the  fuel  cell,  oxygen  molecules  separate  and  combine  with  hydrogen  ions  to  form  water  and  heat.  Note:  Some  fuel  cell  designs  derive  the  needed  hydrogen  from  gasoline.  Engines  Figures  6-39  through  6-44  show  several  typical  auto-  motive  engines.  Study  each  carefully.  Note  the  design  varia-  tions  between  the  different  types.  Also,  study  the  names  of  all  of  the  parts.  This  will  help  you  in  later  chapters  as  you  continue  to  learn  more  about  engines.  Summary  Cylinder  arrangement  refers  to  the  position  of  the  cylinders  in  the  engine  block  in  relation  to  the  crankshaft.  The  four  common  cylinder  arrangements  are  inline,  V-type,  W-type,  and  opposed.  An  inline  engine  has  cylinders  positioned  one  after  the  other  in  a  straight  line.  A  V-type  engine  looks  like  the  letter  V  when  viewed  from  the  front  or  rear.  A  W-type  engine  is  similar  to  a  V-type  engine,  but  with  staggered  cylinders.  An  opposed  engine  has  two  banks  of  cylinders  that  lay  flat  or  horizontal  on  each  side  of  the  crankshaft.
