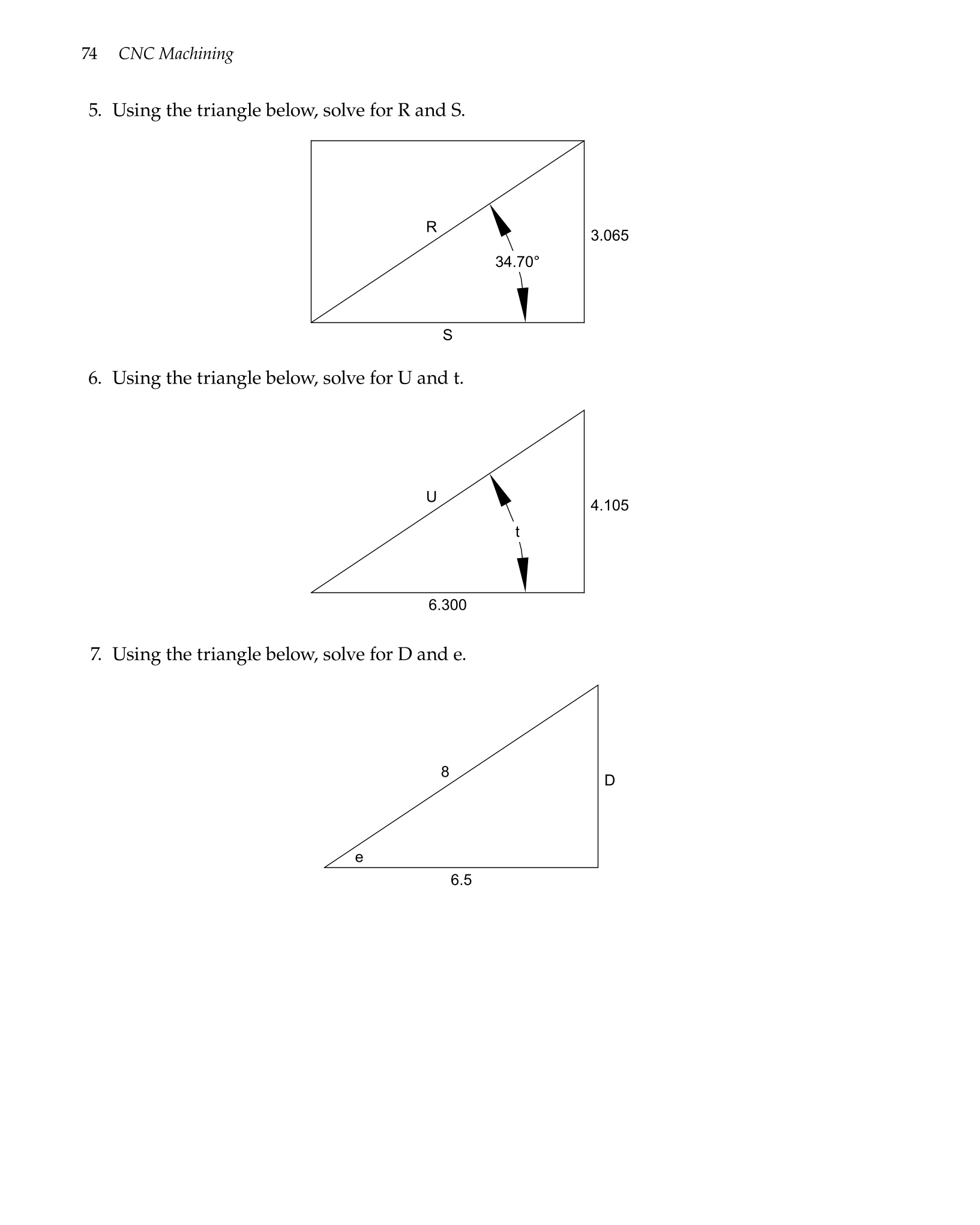

74 CNC Machining
5. Using the triangle below, solve for R and S.
34.70°
R
S
3.065
34.70°
6. Using the triangle below, solve for U and t.
t
U
6.300
4.105
t
7. Using the triangle below, solve for D and e.
8
6.5
D
e
