Chapter 15 Construction Scheduling 263
Computer-Aided Scheduling
The use of computer-aided scheduling software has made preparing both bar charts
and CPM networks much easier than it was in the past. The construction manager inputs
information about each task involved in the project and the computer generates either a bar
chart or a CPM network. The completed schedule can be printed or sent via e-mail to those
who need a copy.
Once work begins, the chart or network is routinely updated by entering current progress
on various jobs. CPM software recalculates the critical path, taking into account the actual
time required to complete finished tasks. Reports are produced that identify problems and
summarize cost.
While it is possible to prepare both bar charts and CPM networks manually, computers
save a lot of time. Frequent updating of the schedule as work progresses makes the computer
even more valuable.
T T
echnology echnology
Link L
ink

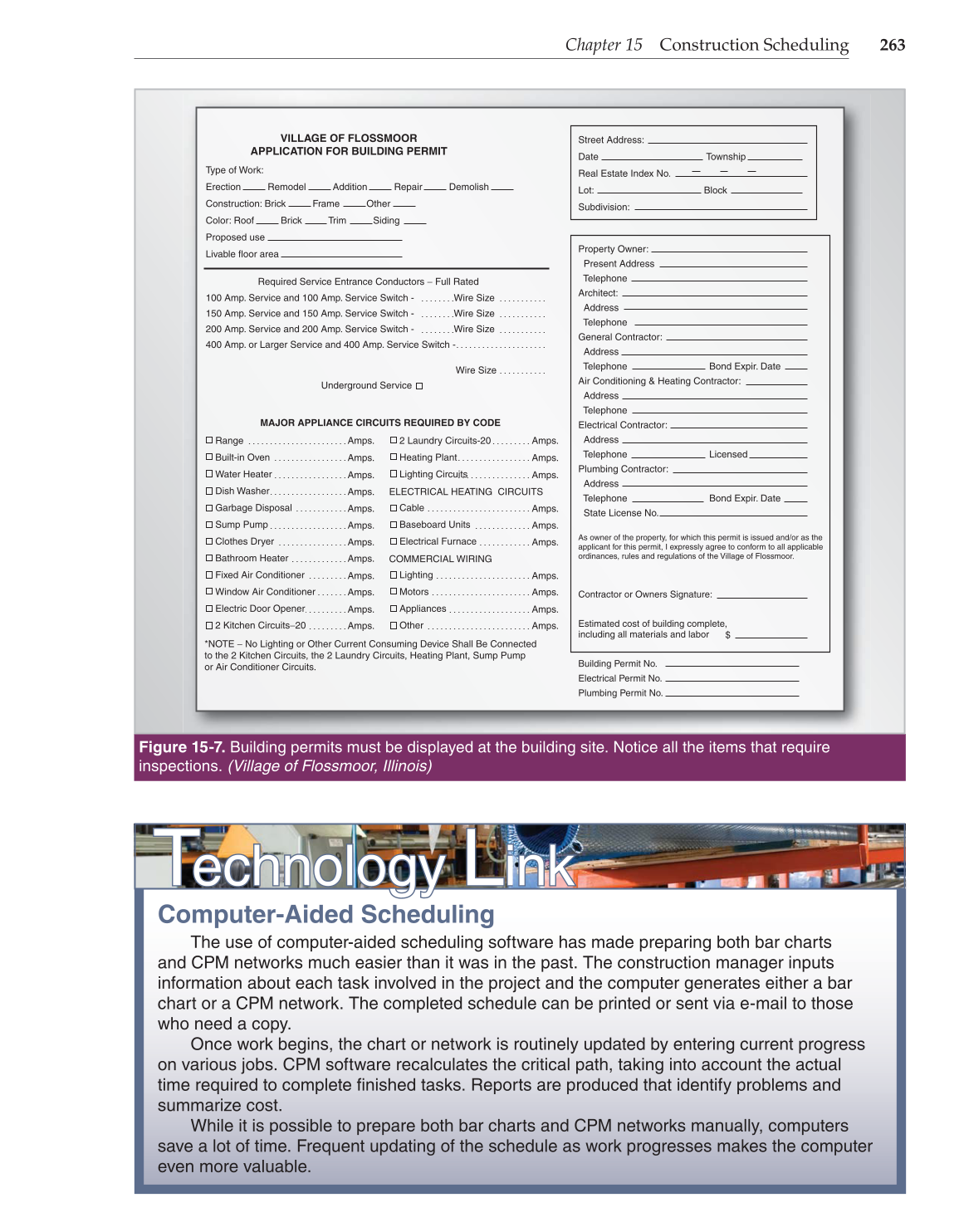

Figure 15-7. Building permits must be displayed at the building site. Notice all the items that require
inspections. (Village of Flossmoor, Illinois)
Type of Work:
Erection Remodel Addition Repair Demolish
Construction: Brick Frame Other
Color: Roof Brick Trim Siding
Proposed use
Livable floor area
Required Service Entrance Conductors − Full Rated
Underground Service
Range
Built-in Oven
Water Heater
Dish Washer
Garbage Disposal
Sump Pump
Clothes Dryer
Bathroom Heater
Fixed Air Conditioner
Window Air Conditioner
Electric Door Opener
2 Kitchen Circuits−20
*NOTE − No Lighting or Other Current Consuming Device Shall Be Connected
to the 2 Kitchen Circuits, the 2 Laundry Circuits, Heating Plant, Sump Pump
or Air Conditioner Circuits.
100 Amp. Service and 100 Amp. Service Switch - Wire Size
150 Amp. Service and 150 Amp. Service Switch - Wire Size
200 Amp. Service and 200 Amp. Service Switch - Wire Size
400 Amp. or Larger Service and 400 Amp. Service Switch -
Wire Size
VILLAGE OF FLOSSMOOR
APPLICATION FOR BUILDING PERMIT
MAJOR APPLIANCE CIRCUITS REQUIRED BY CODE
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
2 Laundry Circuits-20
Heating Plant
Lighting Circuits
Cable
Baseboard Units
Electrical Furnace
Lighting
Motors
Appliances
Other
Street Address:
Date Township
Real Estate Index No.
Lot: Block
Subdivision:
Property Owner:
Present Address
Telephone
Architect:
Address
Telephone
General Contractor:
Address
Telephone Bond Expir. Date
Air Conditioning & Heating Contractor:
Address
Telephone
Electrical Contractor:
Address
Telephone Licensed
Plumbing Contractor:
Address
Telephone Bond Expir. Date
State License No.
As owner of the property, for which this permit is issued and/or as the
applicant for this permit, I expressly agree to conform to all applicable
ordinances, rules and regulations of the Village of Flossmoor.
Contractor or Owners Signature:
Estimated cost of building complete,
including all materials and labor
Building Permit No.
Electrical Permit No.
Plumbing Permit No.
ELECTRICAL HEATING CIRCUITS
COMMERCIAL WIRING
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
Amps.
$
