126 Section 1 Introduction to Drafting

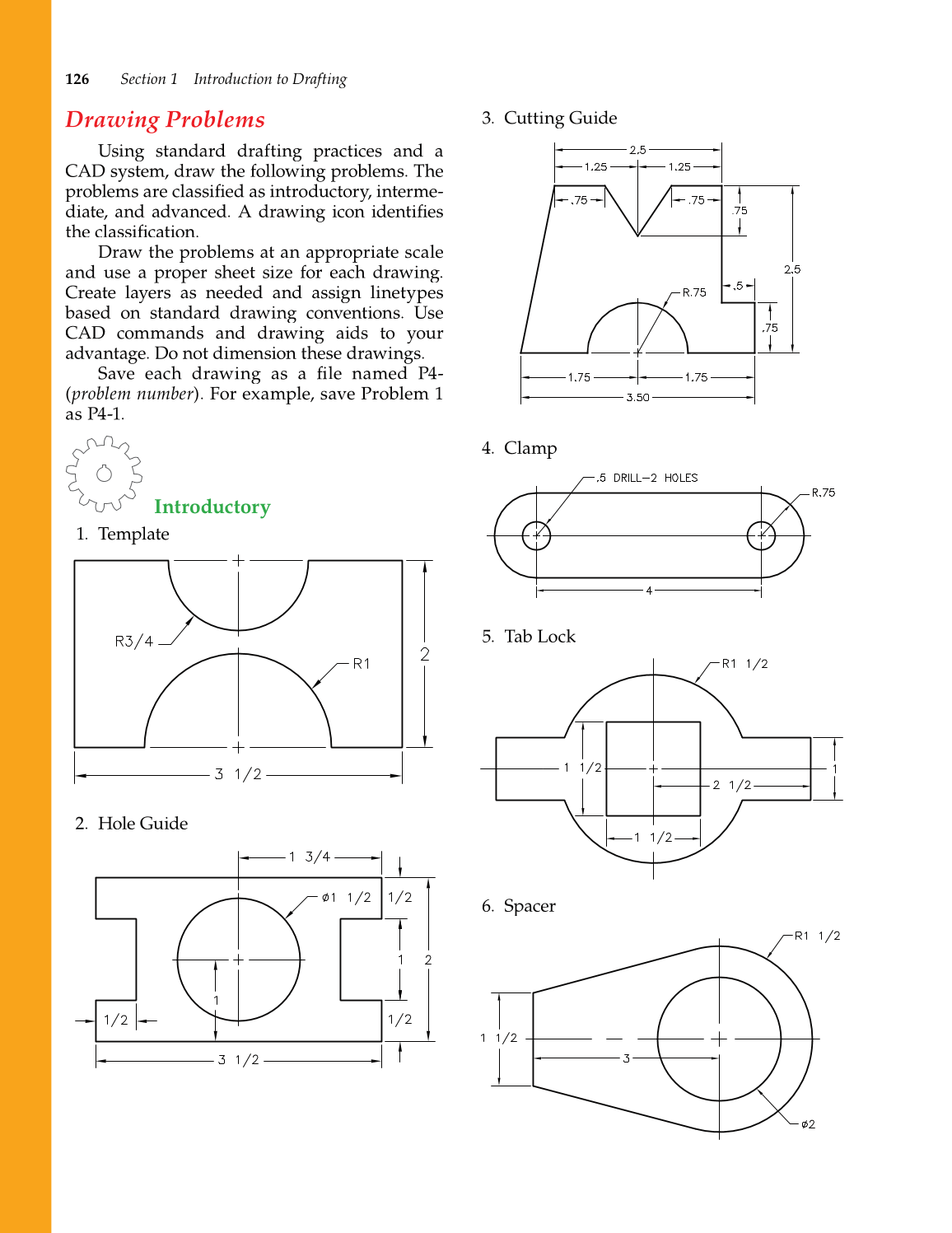

Drawing Problems
Using standard drafting practices and a
CAD system, draw the following problems. The
problems are classified as introductory, interme- fi
diate, and advanced. A drawing icon identifiesfi
the classifi fication.
Draw the problems at an appropriate scale
and use a proper sheet size for each drawing.
Create layers as needed and assign linetypes
based on standard drawing conventions. Use
CAD commands and drawing aids to your
advantage. Do not dimension these drawings.
Save each drawing as a file named P4- fi
(problem number). For example, save Problem 1
as P4-1.
Introductory
1. Template
2. Hole Guide
3. Cutting Guide
4. Clamp
5. Tab Lock
6. Spacer
