Chapter 7 Computer-Aided Drafting and Design 181
4X
4X
R1
4
∅3
4
1
22
3
4
8X 45°
1

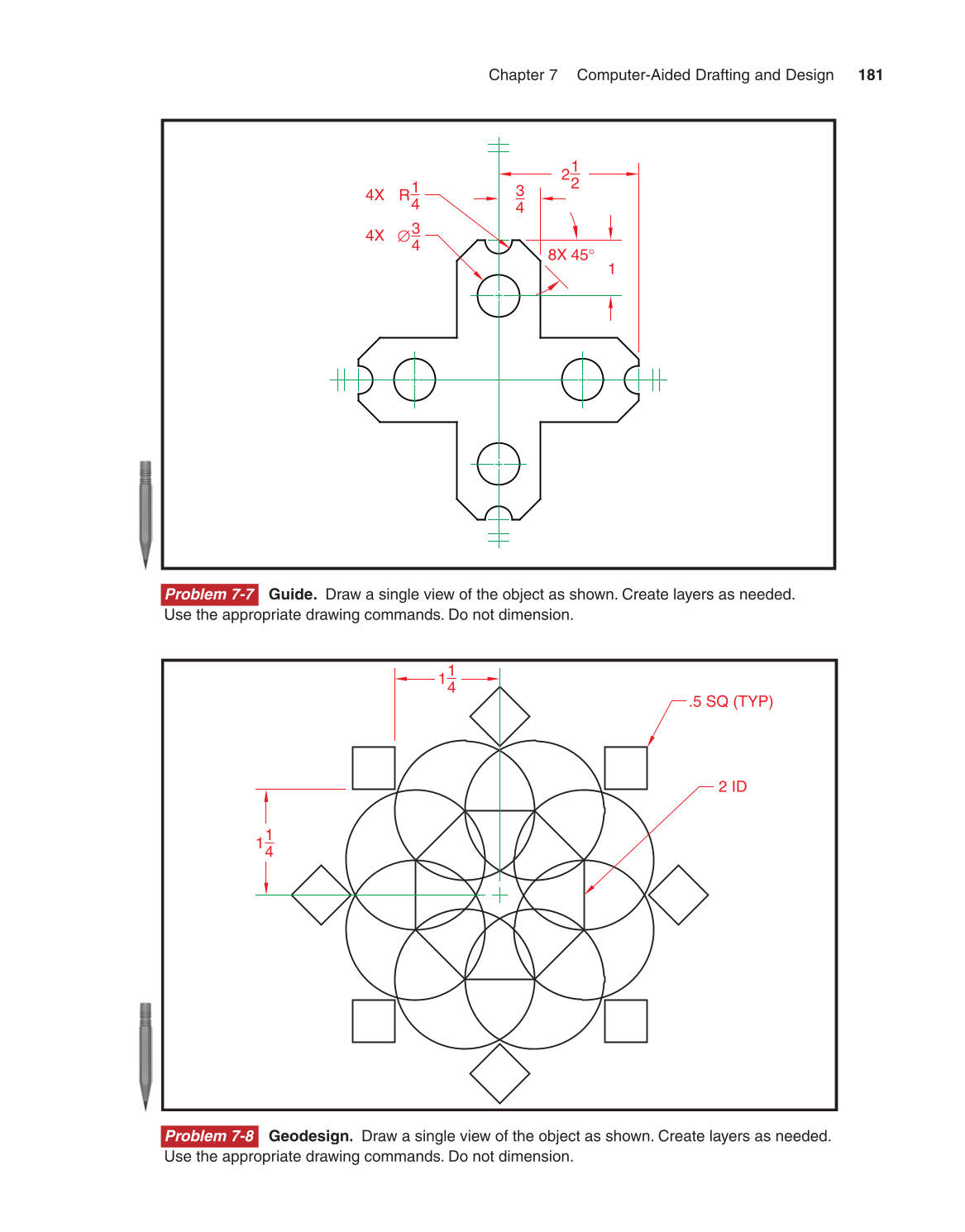

Problem 7-7 Guide. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
1
14
141
2 ID
.5 SQ (TYP)

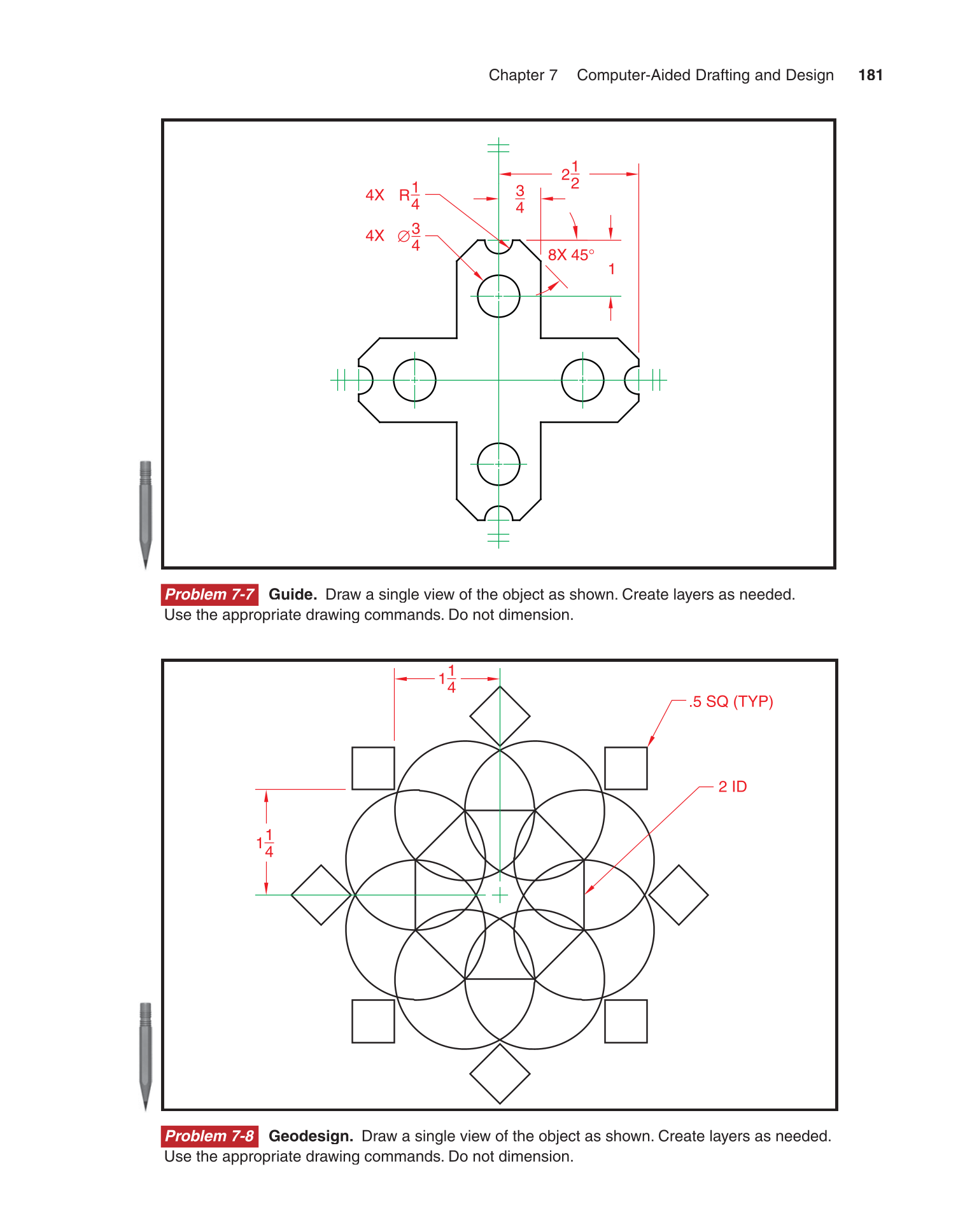

Problem 7-8 Geodesign. Draw a single view of the object as shown. Create layers as needed.
Use the appropriate drawing commands. Do not dimension.
