Third
angle
Top
Bottom
Front Left Rear Right

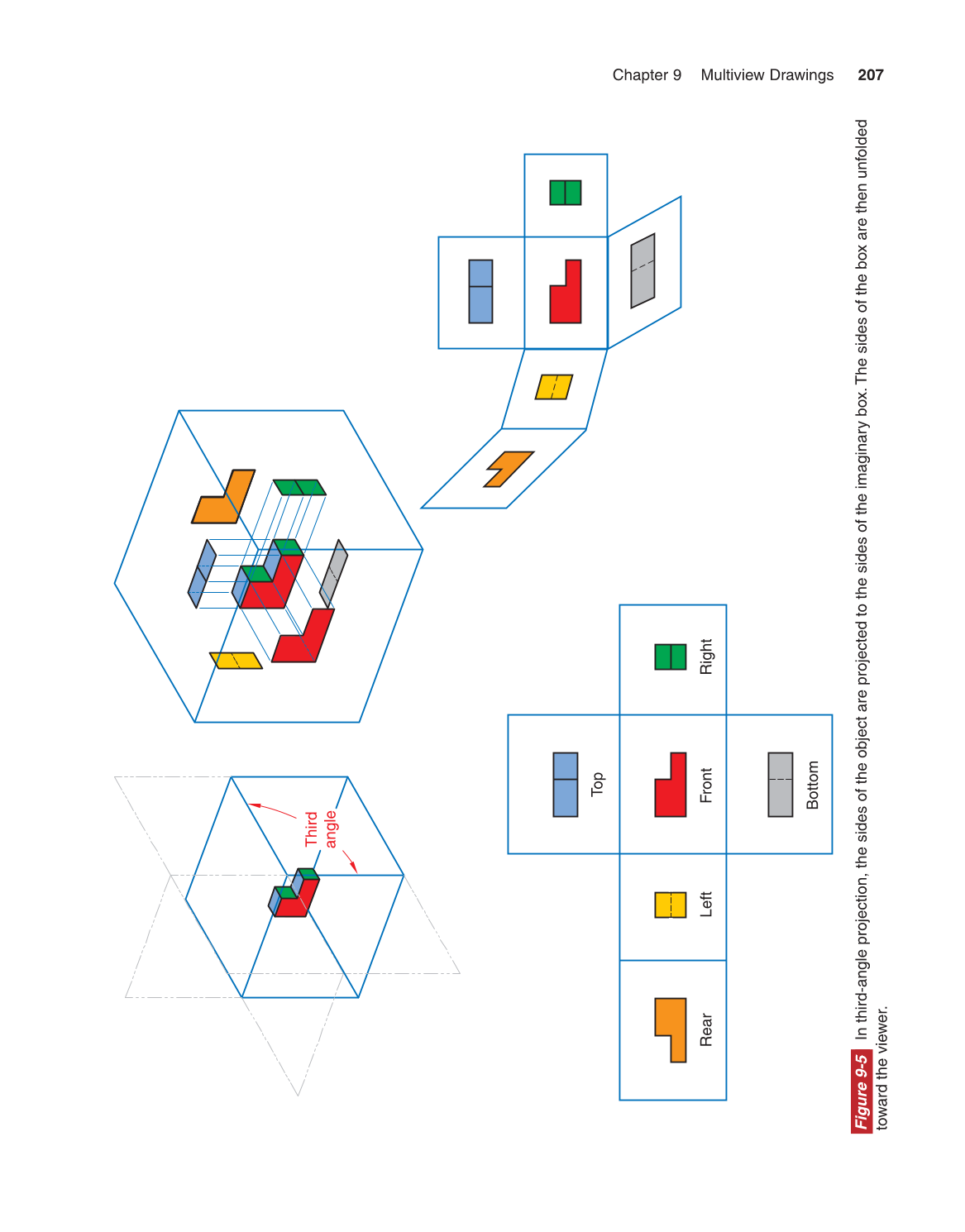

Figure 9-5 In third-angle projection, the sides ofthe object are projected to the sides ofthe imaginary box. The sides ofthe box are then unf olded
toward the viewer.
