214 Exploring Drafting
Foreshortened length
Foreshortened surfaces
Top view
Inclined surface
(edge view)
Front view
Side view
Foreshortened length
True
Length

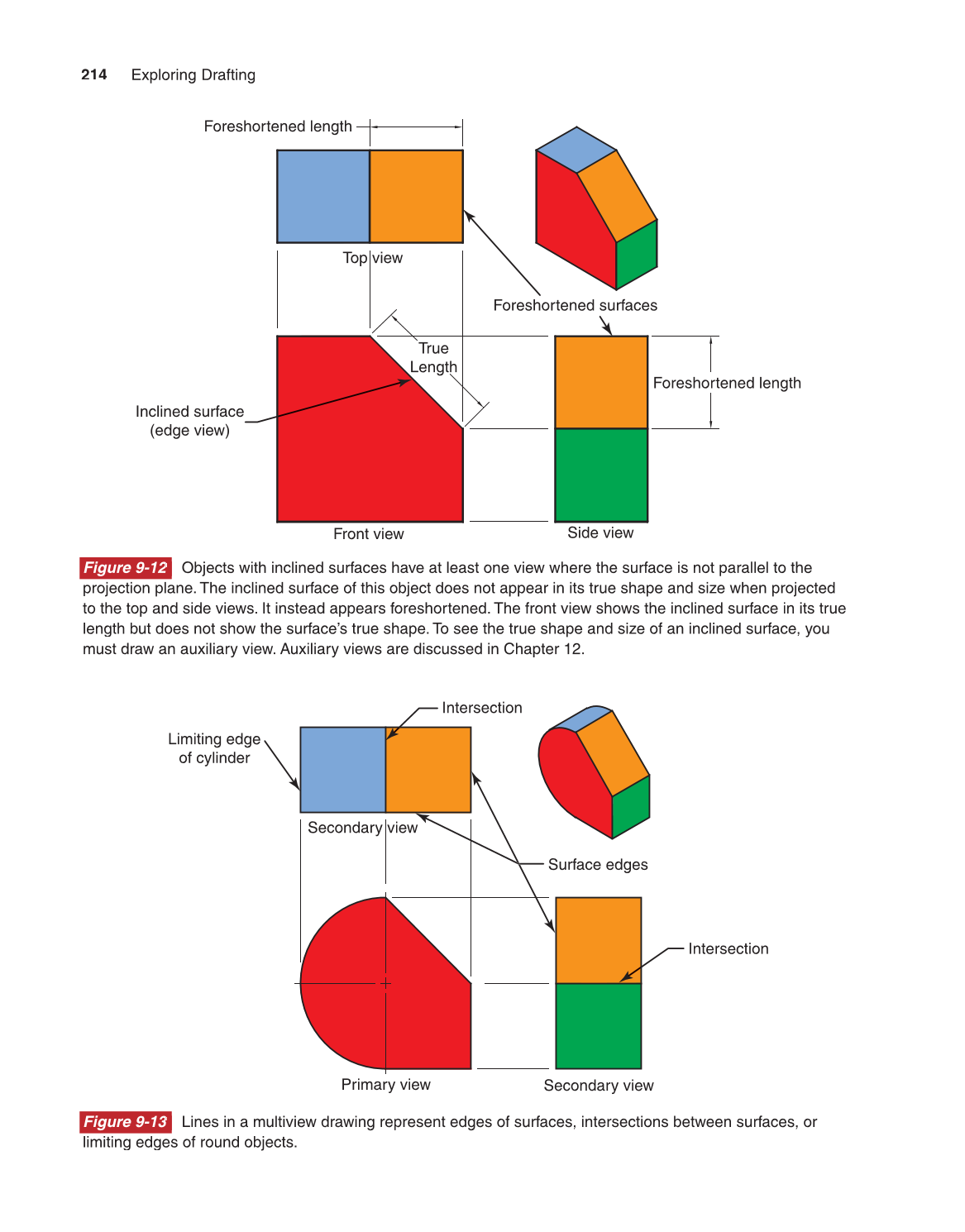

Figure 9-12 Objects with inclined surfaces have at least one view where the surface is not parallel to the
projection plane. The inclined surface of this object does not appear in its true shape and size when projected
to the top and side views. It instead appears foreshortened. The front view shows the inclined surface in its true
length but does not show the surface’s true shape. To see the true shape and size of an inclined surface, you
must draw an auxiliary view. Auxiliary views are discussed in Chapter 12.
Limiting edge
of cylinder
Intersection
Intersection
Secondary view
Secondary view
Primary view
Surface edges
Figure 9-13 Lines in a multiview drawing represent edges of surfaces, intersections between surfaces, or
limiting edges of round objects.
