170
Exploring Drafting
Parallel
Vertical
Equal
Equal
Parallel
Vertical
Equal
Equal
Horizontal
Horizontal
A
B
Goodheart-Willcox Publisher

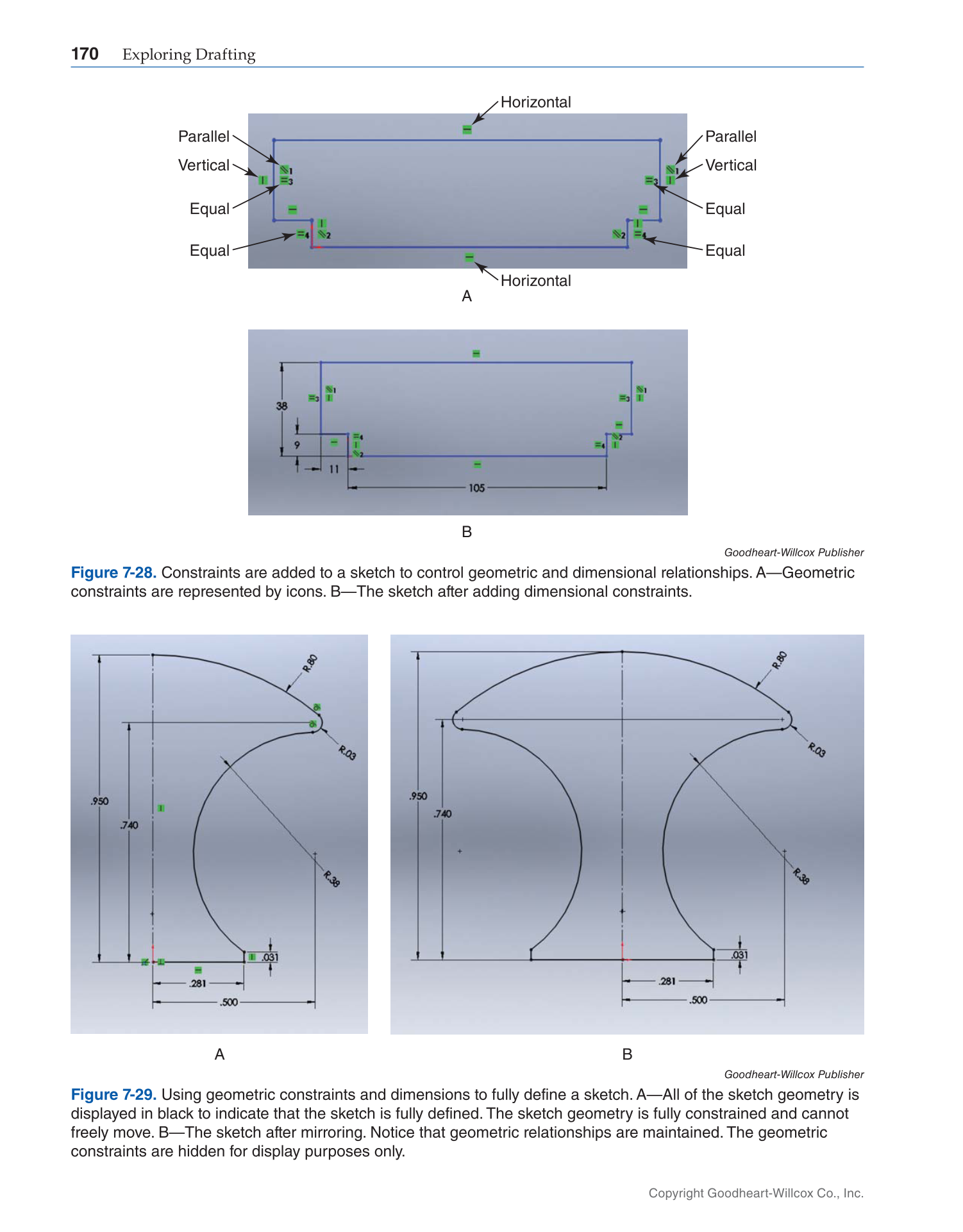

Figure 7-28. Constraints are added to a sketch to control geometric and dimensional relationships. A—Geometric
constraints are represented by icons. B—The sketch after adding dimensional constraints.
A B
Goodheart-Willcox Publisher
Figure 7-29. Using geometric constraints and dimensions to fully define a sketch. A—All of the sketch geometry is
displayed in black to indicate that the sketch is fully defined. The sketch geometry is fully constrained and cannot
freely move. B—The sketch after mirroring. Notice that geometric relationships are maintained. The geometric
constraints are hidden for display purposes only.
