Drawing Problems Drawing Problems
4
2
∅2
4X
∅1
2
221
5
4X
R1
2

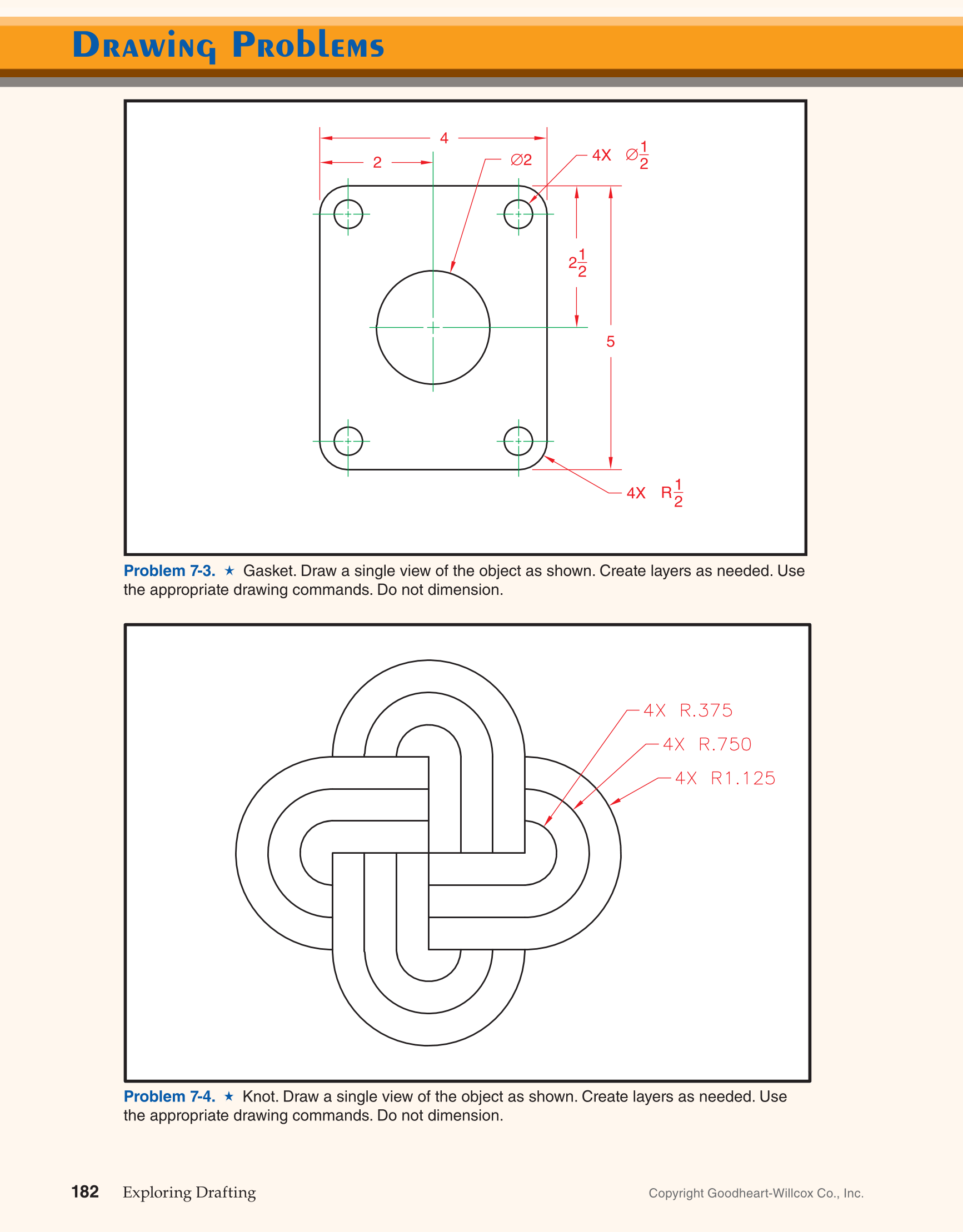

Problem 7-3. Gasket. Draw a single view of the object as shown. Create layers as needed. Use
the appropriate drawing commands. Do not dimension.
Problem 7-4. Knot. Draw a single view of the object as shown. Create layers as needed. Use
the appropriate drawing commands. Do not dimension.
