Chapter 7 Computer-Aided Drafting and Design
195
4.0
Ø.875
2.50
1.75
.50
.0625
THREADED SHAFT
Ø1.375
Ø.625
CLAMP HEAD
CLAMP BASE
5/8-11UNC
.03 X 45° CHAMFER BOTH ENDS
Ø.625
Ø1.25
R.1875
1.875
.44
.88

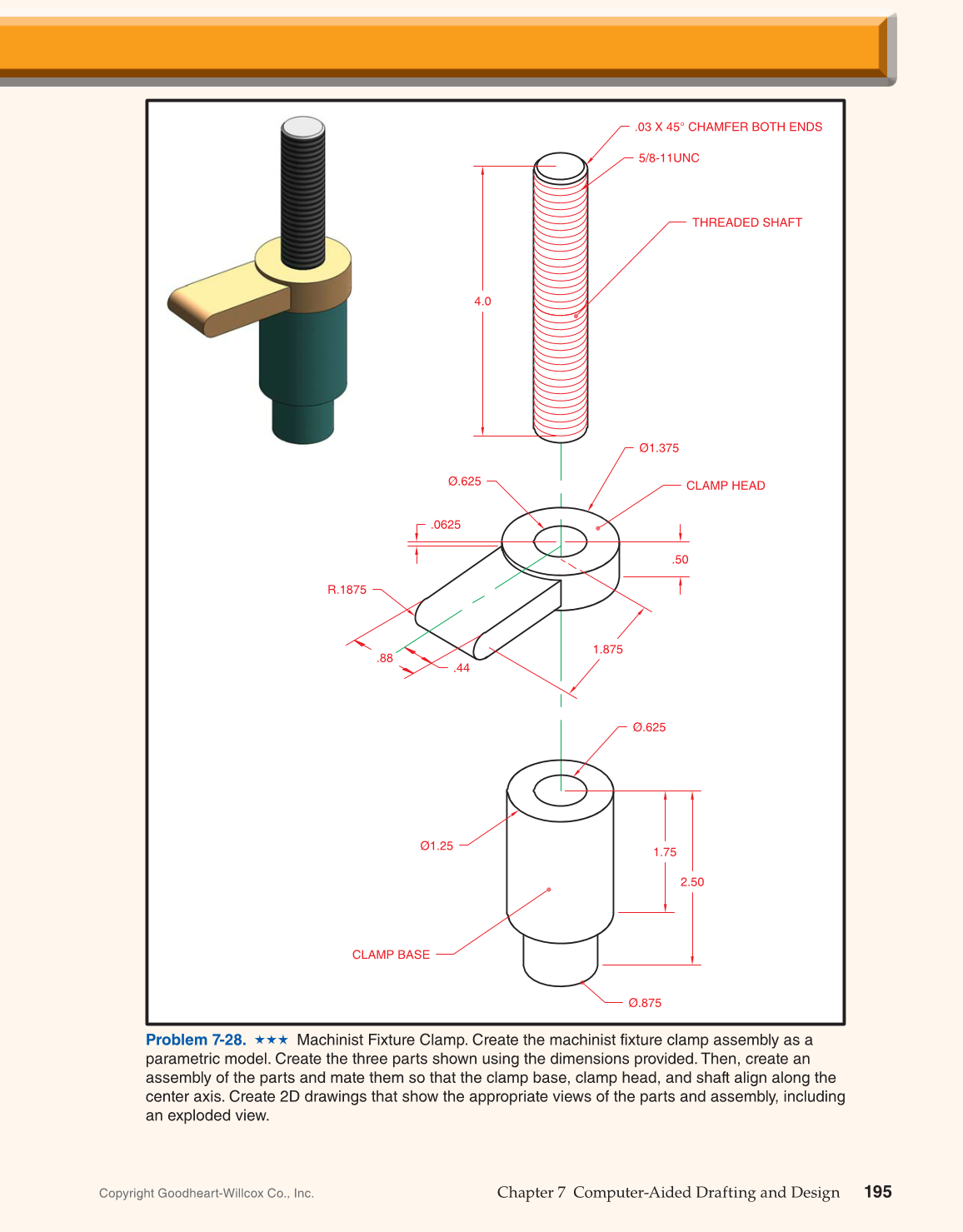

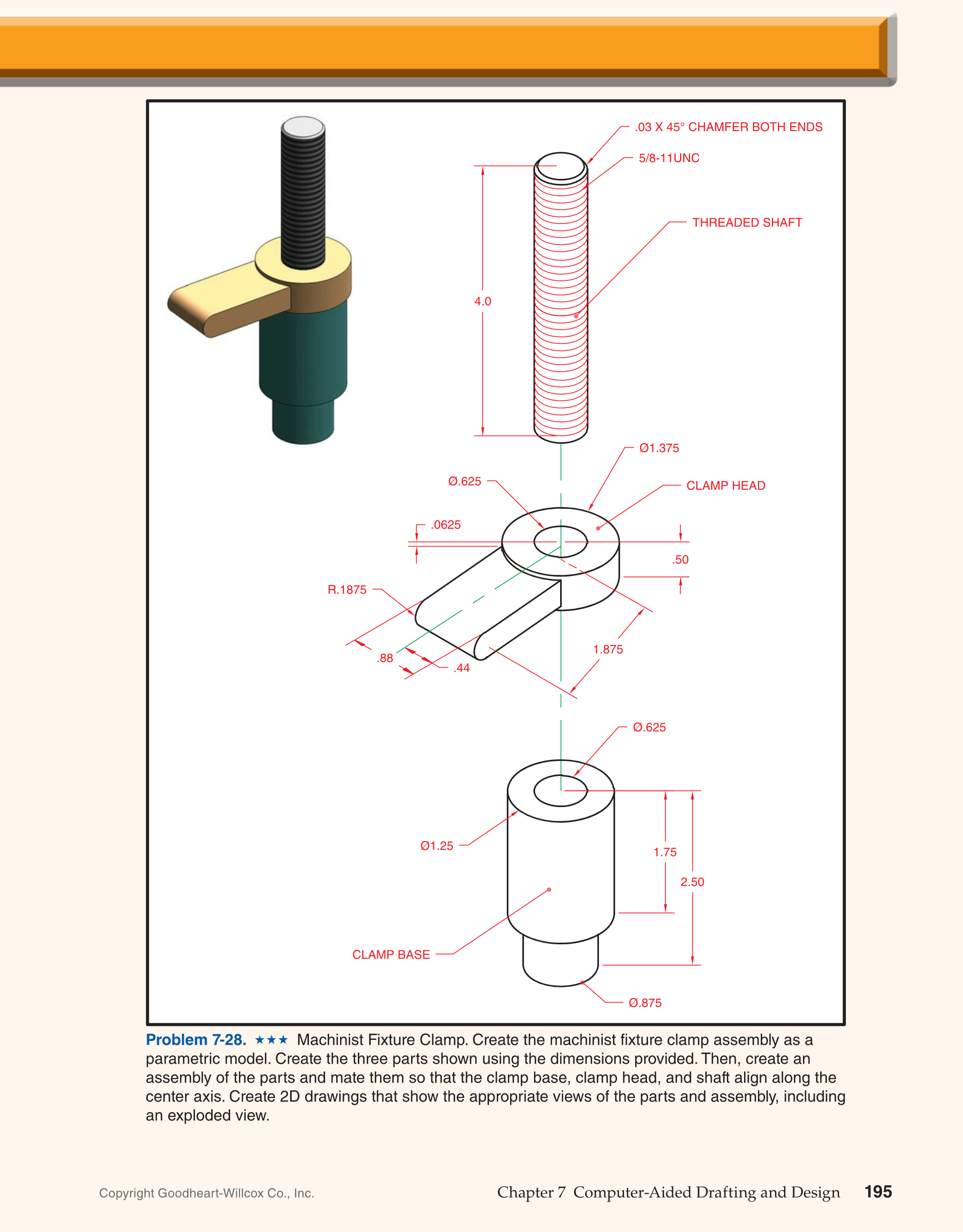

Problem 7-28. Machinist Fixture Clamp. Create the machinist fixture clamp assembly as a
parametric model. Create the three parts shown using the dimensions provided. Then, create an
assembly of the parts and mate them so that the clamp base, clamp head, and shaft align along the
center axis. Create 2D drawings that show the appropriate views of the parts and assembly, including
an exploded view.
