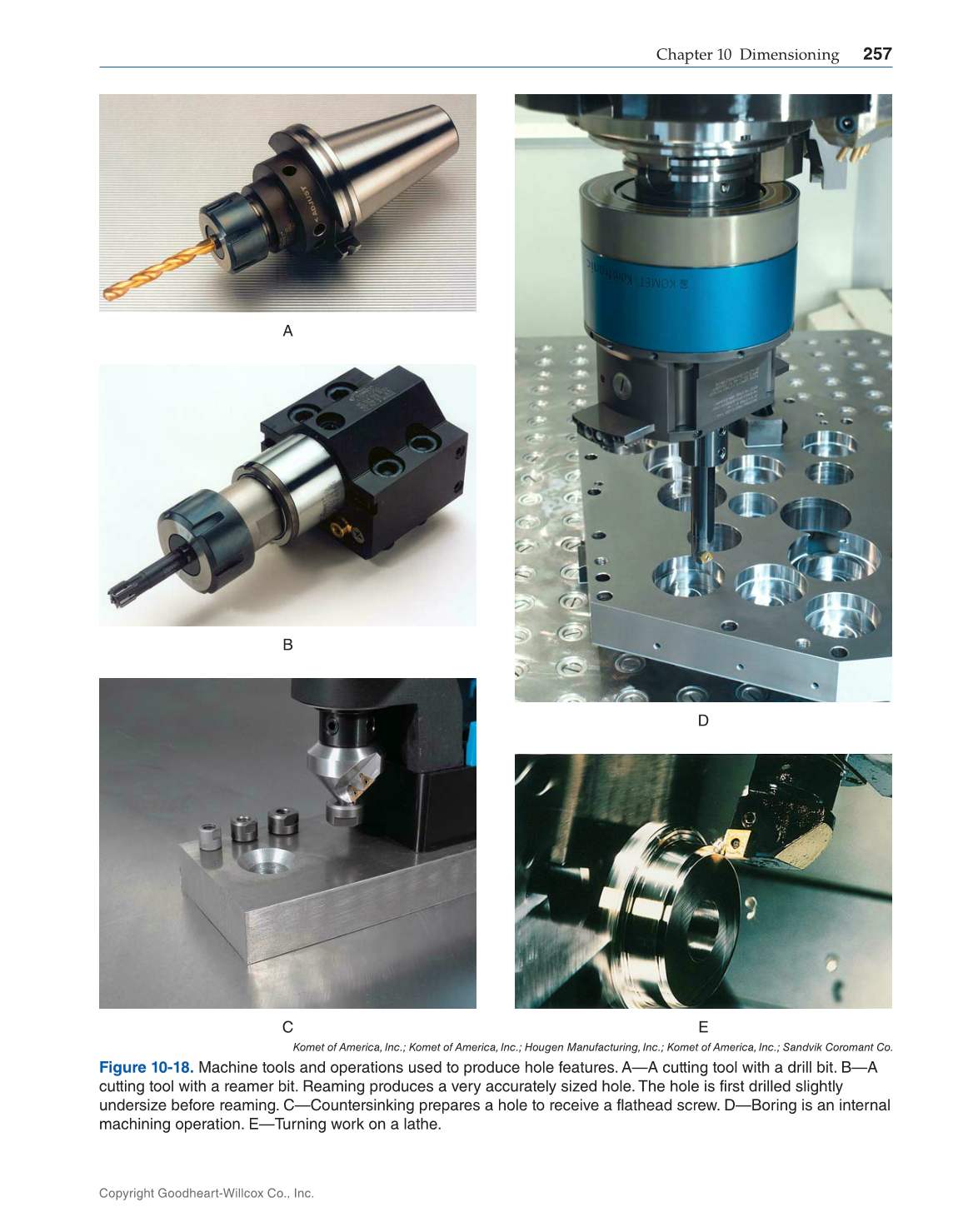

Figure 10-18. Machine tools and operations used to produce hole features. A—A cutting tool with a drill bit. B—A
cutting tool with a reamer bit. Reaming produces a very accurately sized hole. The hole is first drilled slightly
undersize before reaming. C—Countersinking prepares a hole to receive a flathead screw. D—Boring is an internal
machining operation. E—Turning work on a lathe.
