Chapter 10 Dimensioning
273
Tolerance zone for ∅.750 hole
Drawing
∅.012
Tolerance zone
∅.750
4.0
4.0
Tolerance zone for ∅.752 hole
∅.010
Tolerance zone
∅.752
4.0
4.0
Goodheart-Willcox Publisher

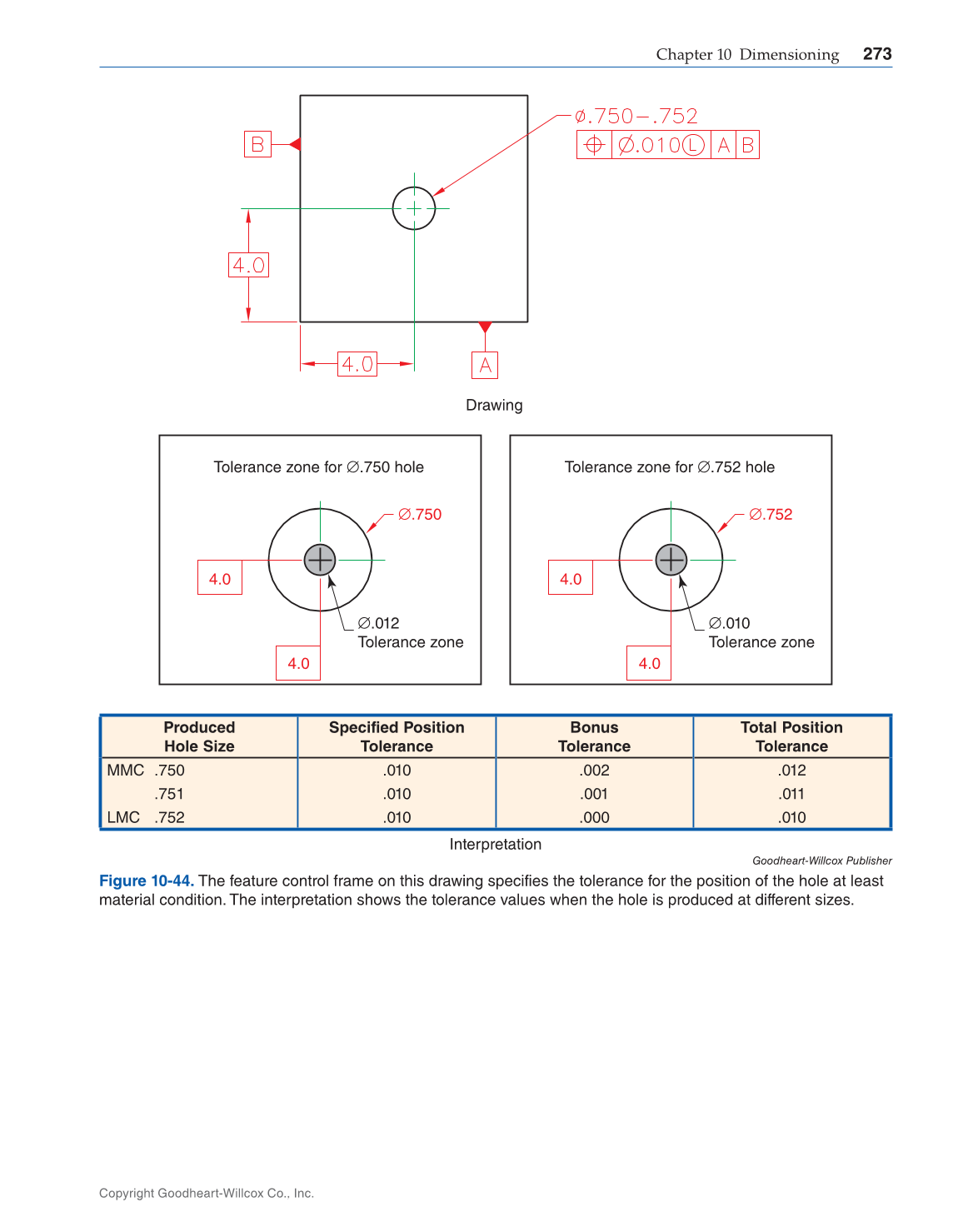

Figure 10-44. The feature control frame on this drawing specifies the tolerance for the position of the hole at least
material condition. The interpretation shows the tolerance values when the hole is produced at different sizes.
Produced
Hole Size
Specified Position
Tolerance
Bonus
Tolerance
Total Position
Tolerance
MMC .750
.751
LMC .752
.010
.010
.010
.002
.001
.000
.012
.011
.010
Interpretation
