the near (arrow) side, Figure 6-18. Whenever the weld
symbol is placed above the reference line, the weld is to
be made on the other side of the joint, Figure 6-19. By
placing dimensions on the symbols, the exact size of the
weld can be indicated. The complete welding symbol
gives the welder instructions for preparing the base
material, welding process, weld surface contour, and fin-
ish. See Figure 6-20.
Weld Positions
Many weldments are made on site, so the welder
must be able to weld in all positions—flat, horizontal,
Chapter 6 Weld Joints and Weld Types 53

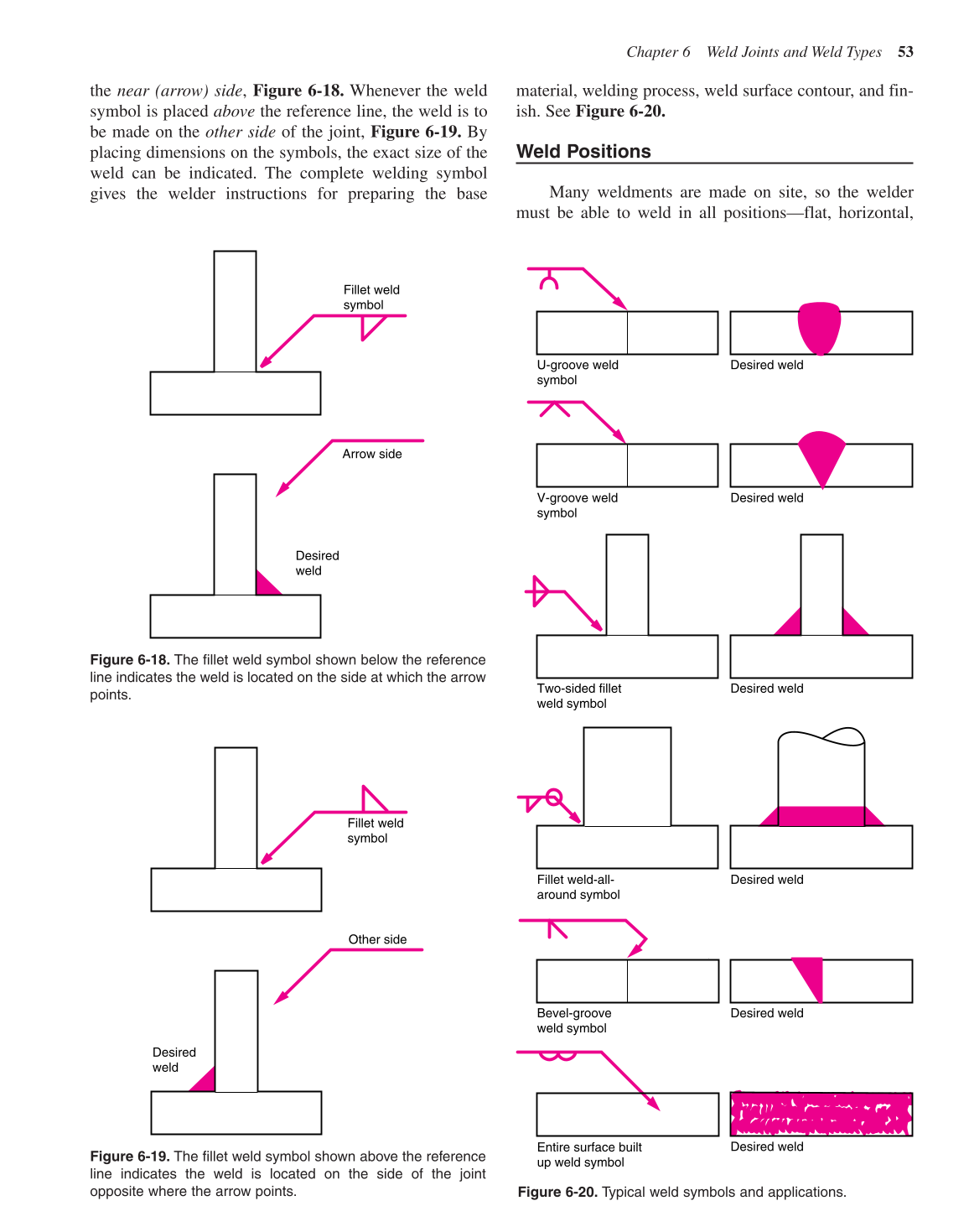

Figure 6-18. The fillet weld symbol shown below the reference
line indicates the weld is located on the side at which the arrow
points.
Desired
weld
Arrow side
Fillet weld
symbol
Figure 6-19. The fillet weld symbol shown above the reference
line indicates the weld is located on the side of the joint
opposite where the arrow points.
Desired
weld
Other side
Fillet weld
symbol
Figure 6-20. Typical weld symbols and applications.
Bevel-groove
weld symbol
Desired weld Entire surface built
up weld symbol
Desired weld
Two-sided fillet
weld symbol
Fillet weld-all-
around symbol
Desired weld
Desired weld
Desired weld
V-groove weld
symbol
Desired weld U-groove weld
symbol
