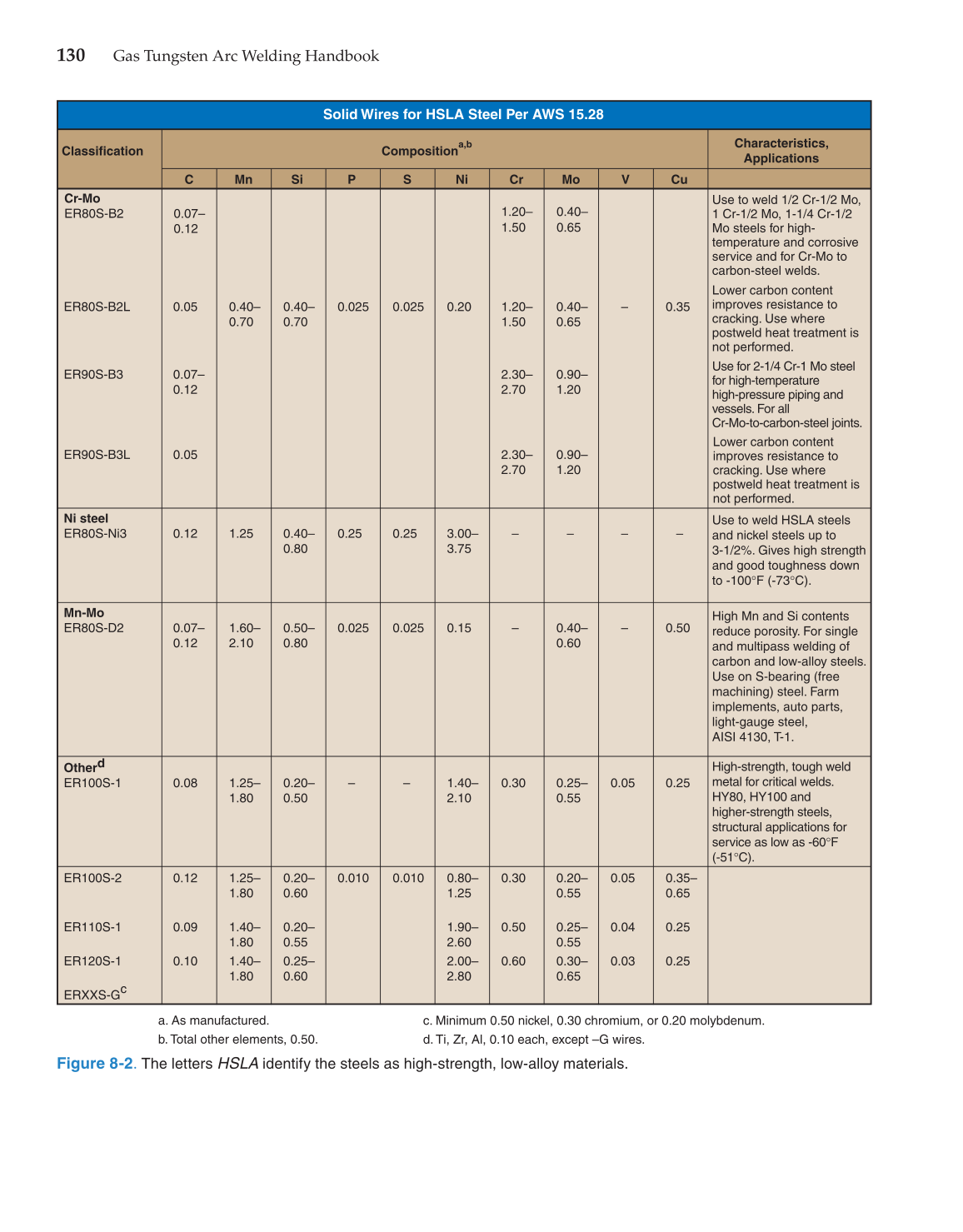

130
Gas Tungsten Arc Welding Handbook
Solid Wires for HSLA Steel Per AWS 15.28
Classification
Compositiona,b
Characteristics,
Applications
C Mn Si P S Ni Cr Mo V Cu
Cr-Mo
ER80S-B2 0.07–
0.12
Use to weld 1/2 Cr-1/2 Mo,
1 Cr-1/2 Mo, 1-1/4 Cr-1/2
Mo steels for high-
temperature and corrosive
service and for Cr-Mo to
carbon-steel welds.
Lower carbon content
improves resistance to
cracking. Use where
postweld heat treatment is
not performed.
Use for 2-1/4 Cr-1 Mo steel
for high-temperature
high-pressure piping and
vessels. For all
Cr-Mo-to-carbon-steel joints.
Lower carbon content
improves resistance to
cracking. Use where
postweld heat treatment is
not performed.
Use to weld HSLA steels
and nickel steels up to
3-1/2%. Gives high strength
and good toughness down
to -100°F (-73°C).
High Mn and Si contents
reduce porosity. For single
and multipass welding of
carbon and low-alloy steels.
Use on S-bearing (free
machining) steel. Farm
implements, auto parts,
light-gauge steel,
AISI 4130, T-1.
High-strength, tough weld
metal for critical welds.
HY80, HY100 and
higher-strength steels,
structural applications for
service as low as -60°F
(-51°C).
ER80S-B2L 0.05 0.40– 0.40– 0.025 0.025 0.20 1.20– 0.40– – 0.35
0.70 0.70 1.50 0.65
ER90S-B3 0.07– 2.30– 0.90–
0.12 2.70 1.20
ER90S-B3L 0.05 2.30– 0.90–
2.70 1.20
Ni steel
ER80S-Ni3 0.12 1.25 0.40– 0.25 0.25 3.00– – – – –
0.80 3.75
Mn-Mo
ER80S-D2 0.07– 1.60– 0.50– 0.025 0.025 0.15 – 0.40– – 0.50
0.12 2.10 0.80 0.60
Otherd
ER100S-1 0.08 1.25– 0.20– – – 1.40– 0.30 0.25– 0.05 0.25
1.80 0.50 2.10 0.55
ER100S-2 0.12 1.25– 0.20– 0.010 0.010 0.80– 0.30 0.20– 0.05 0.35–
1.80 0.60 1.25 0.55 0.65
ER110S-1 0.09 1.40– 0.20– 1.90– 0.50 0.25– 0.04 0.25
1.80 0.55 2.60 0.55
ER120S-1 0.10 1.40– 0.25– 2.00– 0.60 0.30– 0.03 0.25
1.80 0.60 2.80 0.65
ERXXS-Gc
1.20– 0.40–
1.50 0.65
a. As manufactured.
b. Total other elements, 0.50.
c. Minimum 0.50 nickel, 0.30 chromium, or 0.20 molybdenum.
d. Ti, Zr, Al, 0.10 each, except –G wires.
Figure 8-2.
The letters
HSLA
identify the steels as high-strength, low-alloy materials.
