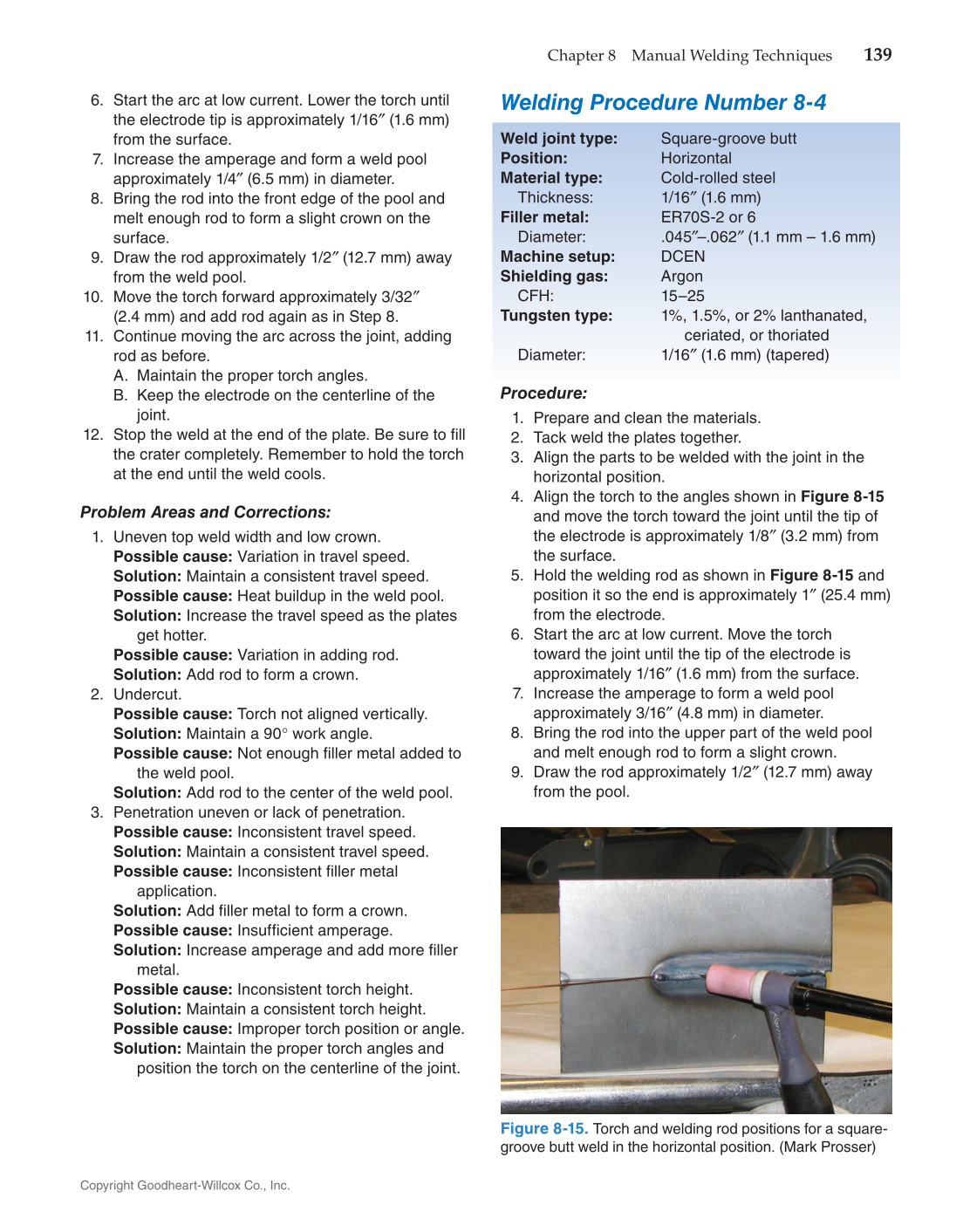

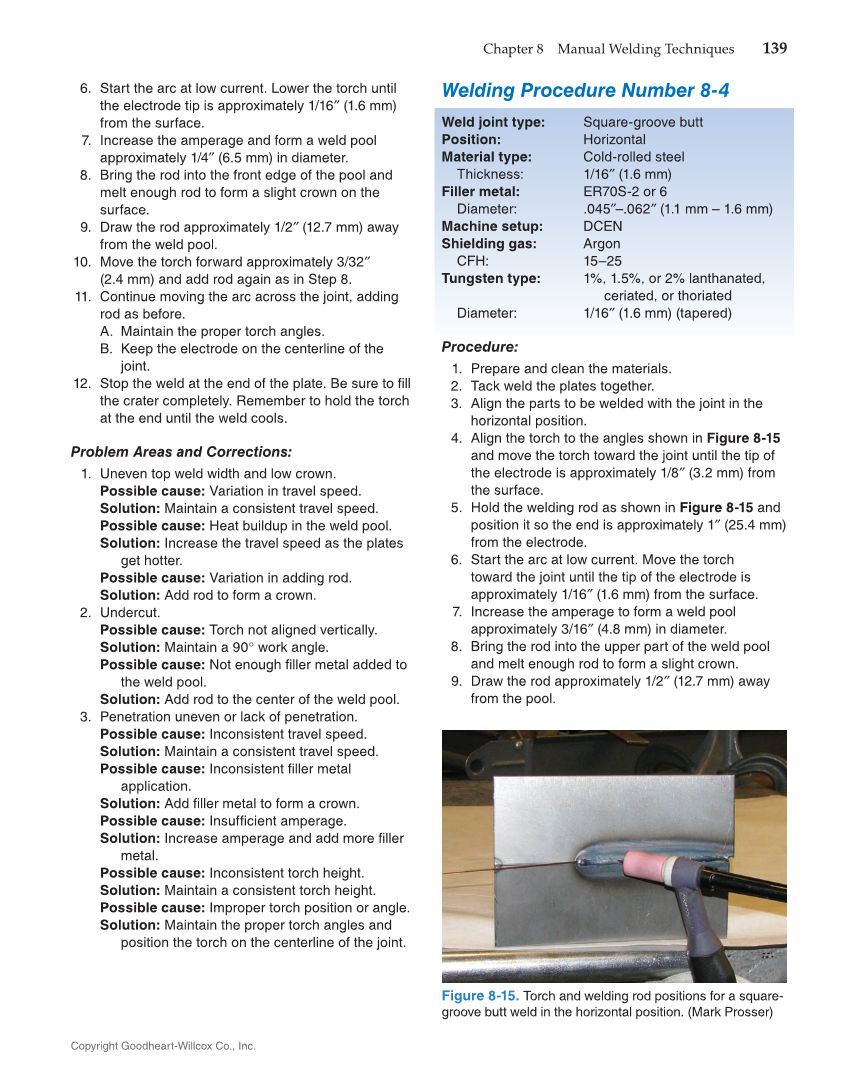

Copyright  Goodheart-Willcox  Co.,  Inc.  Chapter  8  Manual  Welding  Techniques  139  6.  Start  the  arc  at  low  current.  Lower  the  torch  until  the  electrode  tip  is  approximately  1/16″  (1.6  mm)  from  the  surface.  7.  Increase  the  amperage  and  form  a  weld  pool  approximately  1/4″  (6.5  mm)  in  diameter.  8.  Bring  the  rod  into  the  front  edge  of  the  pool  and  melt  enough  rod  to  form  a  slight  crown  on  the  surface.  9.  Draw  the  rod  approximately  1/2″  (12.7  mm)  away  from  the  weld  pool.  10.  Move  the  torch  forward  approximately  3/32″  (2.4  mm)  and  add  rod  again  as  in  Step  8.  11.  Continue  moving  the  arc  across  the  joint,  adding  rod  as  before.  A.  Maintain  the  proper  torch  angles.  B.  Keep  the  electrode  on  the  centerline  of  the  joint.  12.  Stop  the  weld  at  the  end  of  the  plate.  Be  sure  to  fill  the  crater  completely.  Remember  to  hold  the  torch  at  the  end  until  the  weld  cools.  Problem  Areas  and  Corrections:  1.  Uneven  top  weld  width  and  low  crown.  Possible  cause:  Variation  in  travel  speed.  Solution:  Maintain  a  consistent  travel  speed.  Possible  cause:  Heat  buildup  in  the  weld  pool.  Solution:  Increase  the  travel  speed  as  the  plates  get  hotter.  Possible  cause:  Variation  in  adding  rod.  Solution:  Add  rod  to  form  a  crown.  2.  Undercut.  Possible  cause:  Torch  not  aligned  vertically.  Solution:  Maintain  a  90°  work  angle.  Possible  cause:  Not  enough  filler  metal  added  to  the  weld  pool.  Solution:  Add  rod  to  the  center  of  the  weld  pool.  3.  Penetration  uneven  or  lack  of  penetration.  Possible  cause:  Inconsistent  travel  speed.  Solution:  Maintain  a  consistent  travel  speed.  Possible  cause:  Inconsistent  filler  metal  application.  Solution:  Add  filler  metal  to  form  a  crown.  Possible  cause:  Insufficient  amperage.  Solution:  Increase  amperage  and  add  more  filler  metal.  Possible  cause:  Inconsistent  torch  height.  Solution:  Maintain  a  consistent  torch  height.  Possible  cause:  Improper  torch  position  or  angle.  Solution:  Maintain  the  proper  torch  angles  and  position  the  torch  on  the  centerline  of  the  joint.  Welding  Procedure  Number  8-4  Weld  joint  type:  Square-groove  butt  Position:  Horizontal  Material  type:  Cold-rolled  steel  Thickness:  1/16″  (1.6  mm)  Filler  metal:  ER70S-2  or  6  Diameter:  .045″–.062″  (1.1  mm  –  1.6  mm)  Machine  setup:  DCEN  Shielding  gas:  Argon  CFH:  15–25  Tungsten  type:  1%,  1.5%,  or  2%  lanthanated,  ceriated,  or  thoriated  Diameter:  1/16″  (1.6  mm)  (tapered)  Procedure:  1.  Prepare  and  clean  the  materials.  2.  Tack  weld  the  plates  together.  3.  Align  the  parts  to  be  welded  with  the  joint  in  the  horizontal  position.  4.  Align  the  torch  to  the  angles  shown  in  Figure  8-15  and  move  the  torch  toward  the  joint  until  the  tip  of  the  electrode  is  approximately  1/8″  (3.2  mm)  from  the  surface.  5.  Hold  the  welding  rod  as  shown  in  Figure  8-15  and  position  it  so  the  end  is  approximately  1″  (25.4  mm)  from  the  electrode.  6.  Start  the  arc  at  low  current.  Move  the  torch  toward  the  joint  until  the  tip  of  the  electrode  is  approximately  1/16″  (1.6  mm)  from  the  surface.  7.  Increase  the  amperage  to  form  a  weld  pool  approximately  3/16″  (4.8  mm)  in  diameter.  8.  Bring  the  rod  into  the  upper  part  of  the  weld  pool  and  melt  enough  rod  to  form  a  slight  crown.  9.  Draw  the  rod  approximately  1/2″  (12.7  mm)  away  from  the  pool.  Figure  8-15.  Torch  and  welding  rod  positions  for  a  square-  groove  butt  weld  in  the  horizontal  position.  (Mark  Prosser)
