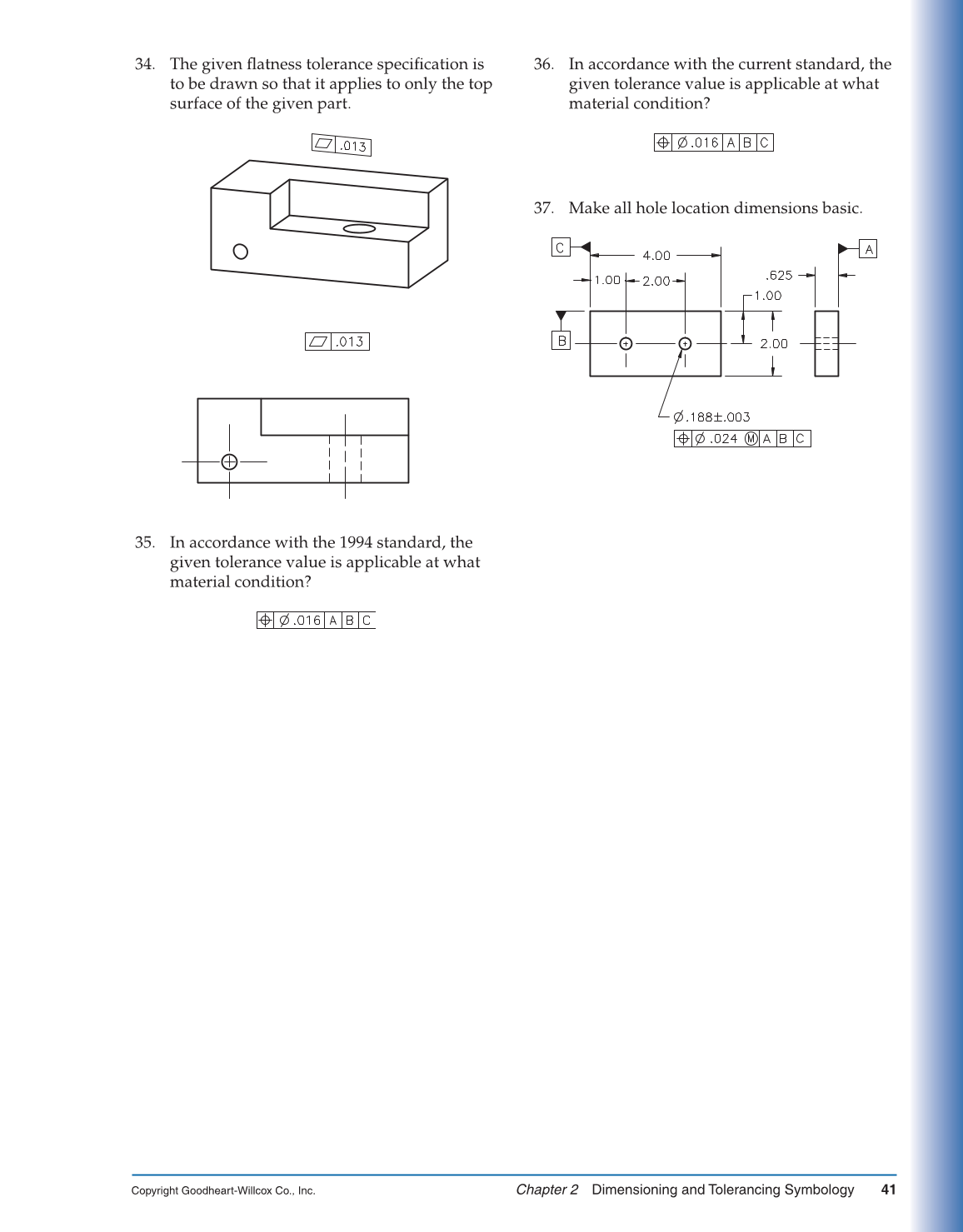

34. The given fl atness tolerance specifi cation is
to be drawn so that it applies to only the top
surface of the given part.
35. In accordance with the 1994 standard, the
given tolerance value is applicable at what
material condition?
36. In accordance with the current standard, the
given tolerance value is applicable at what
material condition?
37. Make all hole location dimensions basic.
