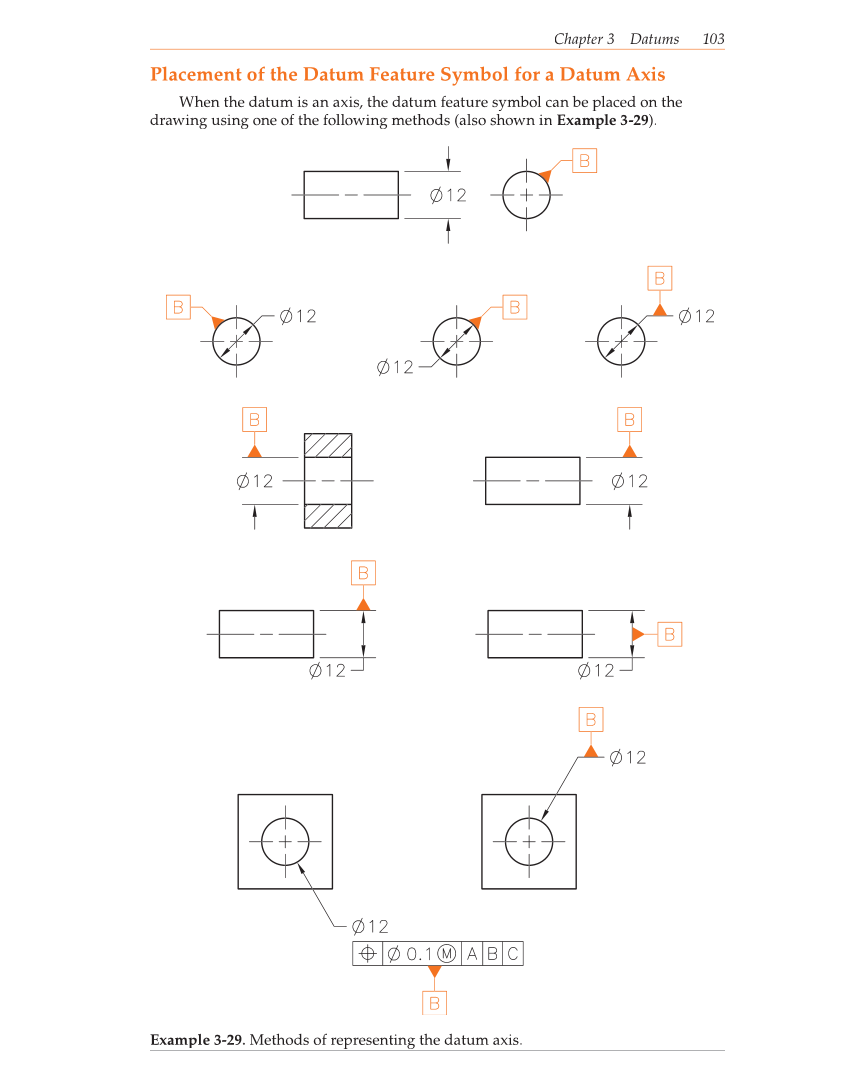

Chapter 3 Datums 103 Placement of the Datum Feature Symbol for a Datum Axis When the datum is an axis, the datum feature symbol can be placed on the drawing using one of the following methods (also shown in Example 3-29). Example 3-29. Methods of representing the datum axis.
