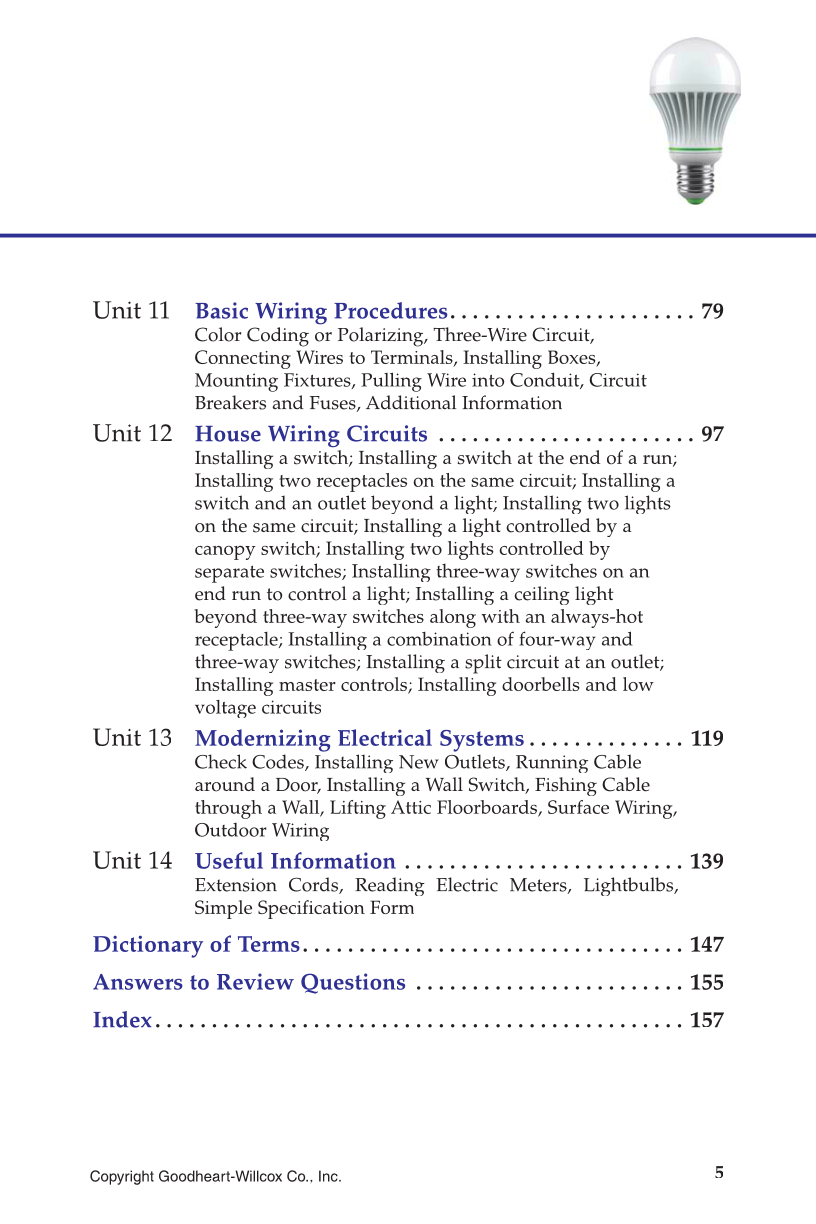

Unit 11
Basic Wiring Procedures. . . . . . . . . . . . . . . . . . . . . . 79
Color Coding or Polarizing, Three-Wire Circuit,
Connecting Wires to Terminals, Installing Boxes,
Mounting Fixtures, Pulling Wire into Conduit, Circuit
Breakers and Fuses, Additional Information
Unit 12
House Wiring Circuits . . . . . . . . . . . . . . . . . . . . . . . 97
Installing a switch; Installing a switch at the end of a run;
Installing two receptacles on the same circuit; Installing a
switch and an outlet beyond a light; Installing two lights
on the same circuit; Installing a light controlled by a
canopy switch; Installing two lights controlled by
separate switches; Installing three-way switches on an
end run to control a light; Installing a ceiling light
beyond three-way switches along with an always-hot
receptacle; Installing a combination of four-way and
three-way switches; Installing a split circuit at an outlet;
Installing master controls; Installing doorbells and low
voltage circuits
Unit 13
Modernizing Electrical Systems . . . . . . . . . . . . . . 119
Check Codes, Installing New Outlets, Running Cable
around a Door, Installing a Wall Switch, Fishing Cable
through a Wall, Lifting Attic Floorboards, Surface Wiring,
Outdoor Wiring
Unit 14
Useful Information . . . . . . . . . . . . . . . . . . . . . . . . . 139
Extension Cords, Reading Electric Meters, Lightbulbs,
Simple Specification Form
Dictionary of Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Answers to Review Questions . . . . . . . . . . . . . . . . . . . . . . . . 155
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
