Unit 10 Basic Wiring Systems 71
Clamping connector
Anti-short bushing
Set-screw connector
Anti-short bushing

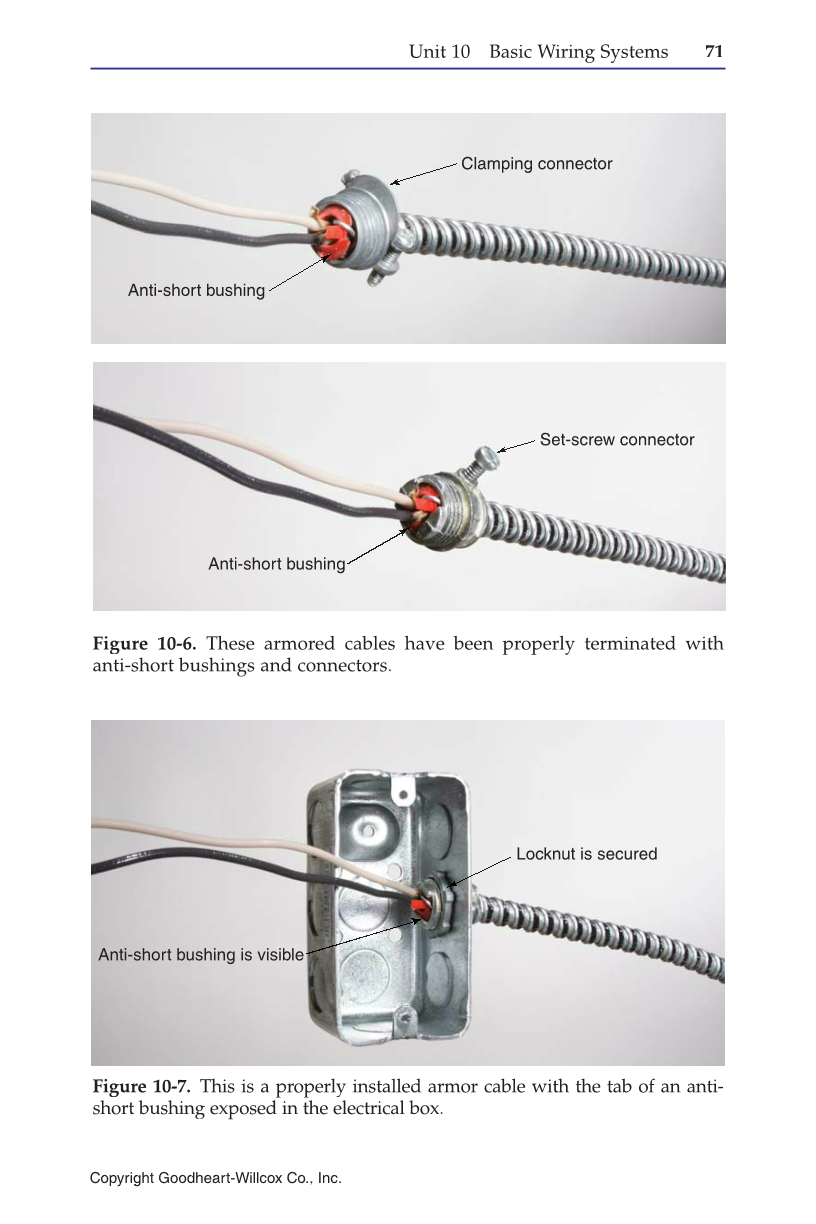

Figure 10-6. These armored cables have been properly terminated with
anti-short bushings and connectors.
Anti-short bushing is visible
Locknut is secured
Figure 10-7. This is a properly installed armor cable with the tab of an anti-
short bushing exposed in the electrical box.
