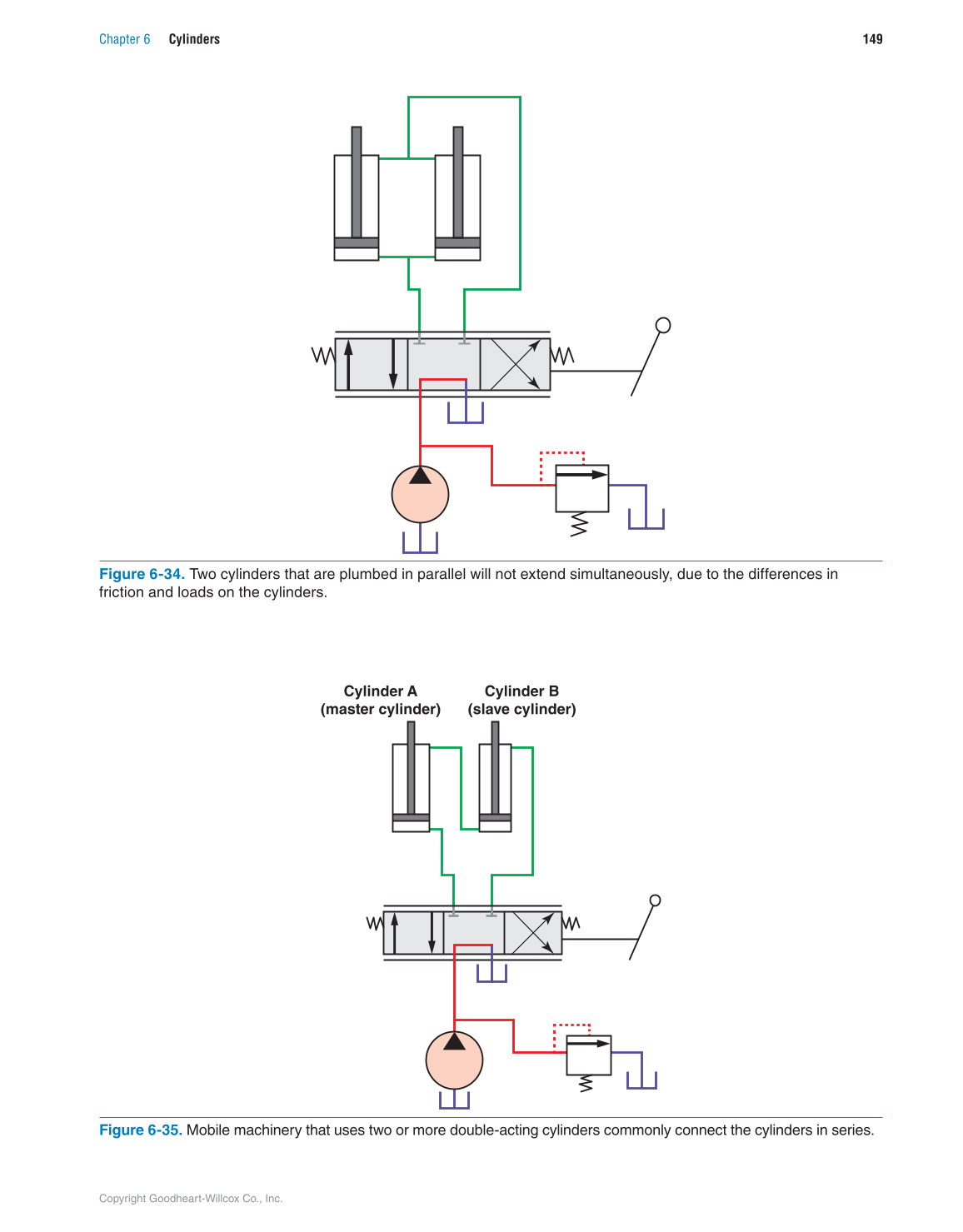

Figure 6-34. Two cylinders that are plumbed in parallel will not extend simultaneously, due to the differences in
friction and loads on the cylinders.
Figure 6-35. Mobile machinery that uses two or more double-acting cylinders commonly connect the cylinders in series.
Cylinder A
(master cylinder)
Cylinder B
(slave cylinder)
