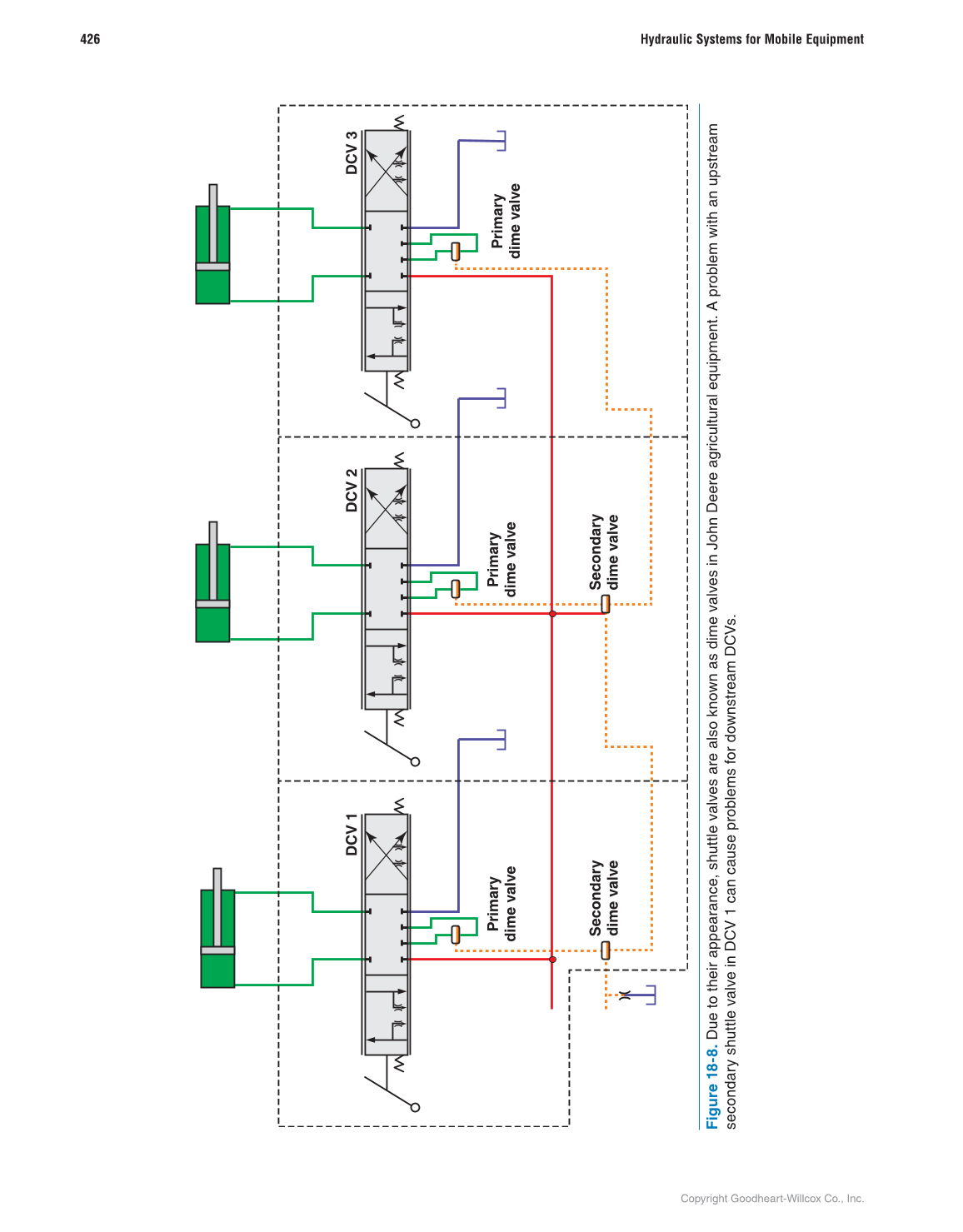

Figure 18-8. Due to their appearance, shuttle valves are also known as dime valves in John Deere agricultural equipment. A problem with an upstream
secondary shuttle valve in DCV 1 can cause problems for downstream DCVs.
DCV 1 DCV 2 DCV 3
Secondary
dime valve
Secondary
dime valve
Primary
dime valve
Primary
dime valve
Primary
dime valve
