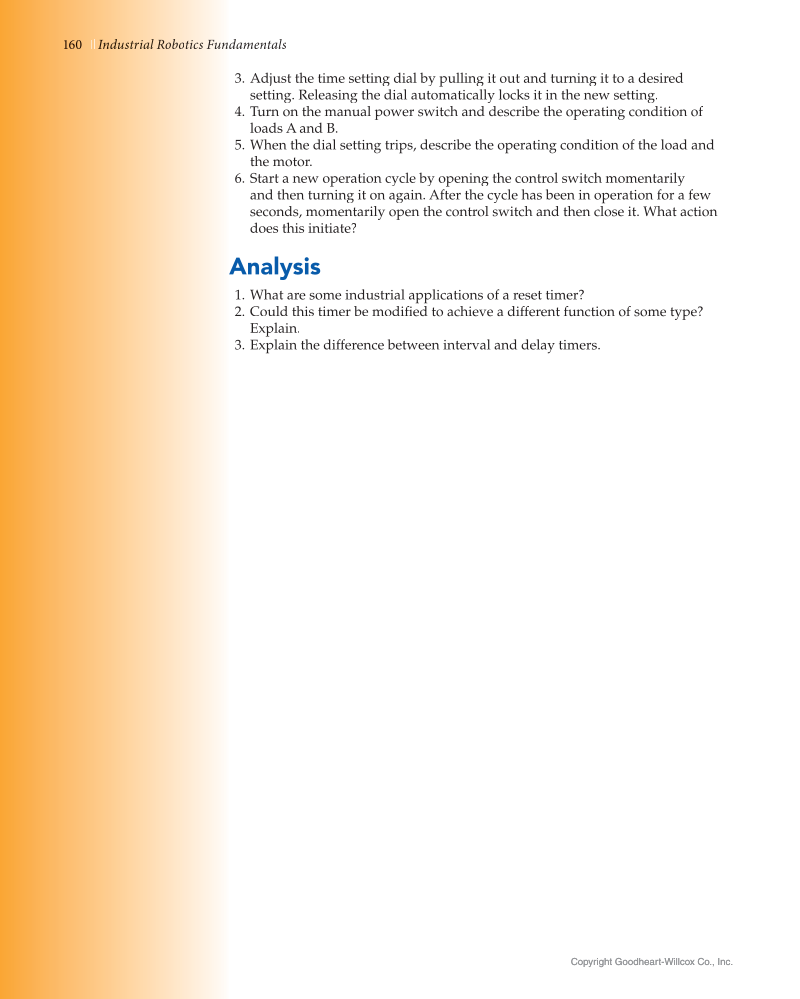

160 0 damentals Industri I d d s ia l l Rob o bo tics i s Fu un Copyright Goodheart-Willcox Co., Inc. Copyright Goodheart-Willcox Co., Inc. 3. Adjust the time setting dial by pulling it out and turning it to a desired setting. Releasing the dial automatically locks it in the new setting. 4. Turn on the manual power switch and describe the operating condition of loads A and B. 5. When the dial setting trips, describe the operating condition of the load and the motor. 6. Start a new operation cycle by opening the control switch momentarily and then turning it on again. After the cycle has been in operation for a few seconds, momentarily open the control switch and then close it. What action does this initiate? Analysis 1. What are some industrial applications of a reset timer? 2. Could this timer be modifi to achieve a different function of some type? fied Explain. 3. Explain the difference between interval and delay timers.
