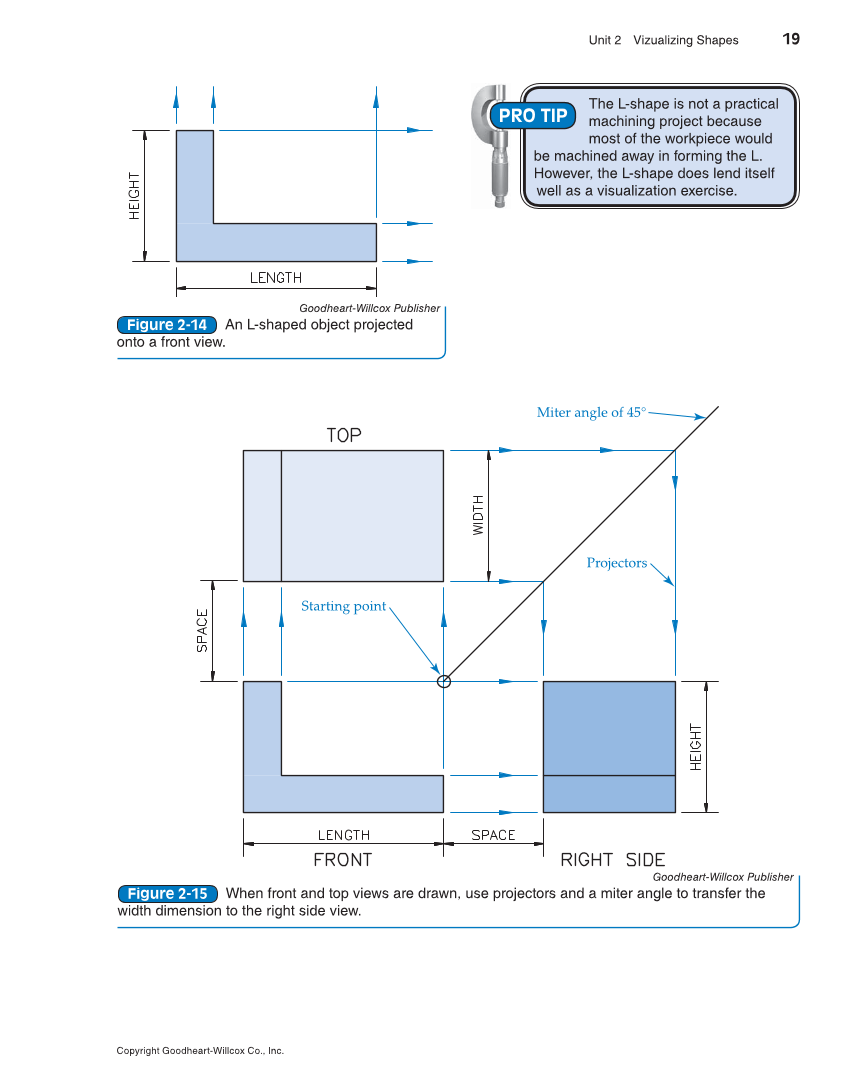

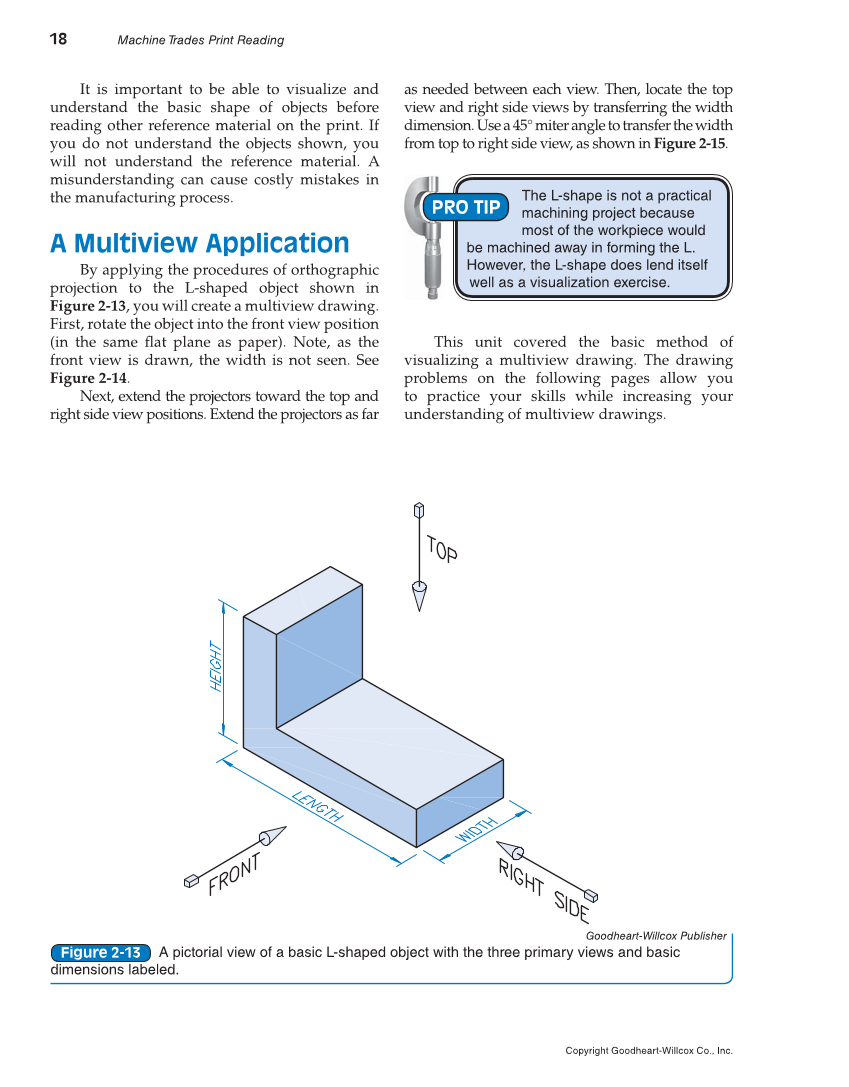

Unit 2 Vizualizing Shapes 19 Copyright Goodheart-Willcox Co., Inc. Goodheart-Willcox Publisher An L-shaped object projected onto a front view. Figure 2-14 Goodheart-Willcox Publisher When front and top views are drawn, use projectors and a miter angle to transfer the width dimension to the right side view. Figure 2-15 Starting point Projectors Miter angle of 45° The L-shape is not a practical machining project because most of the workpiece would be machined away in forming the L. However, the L-shape does lend itself well as a visualization exercise. PRO TIP
