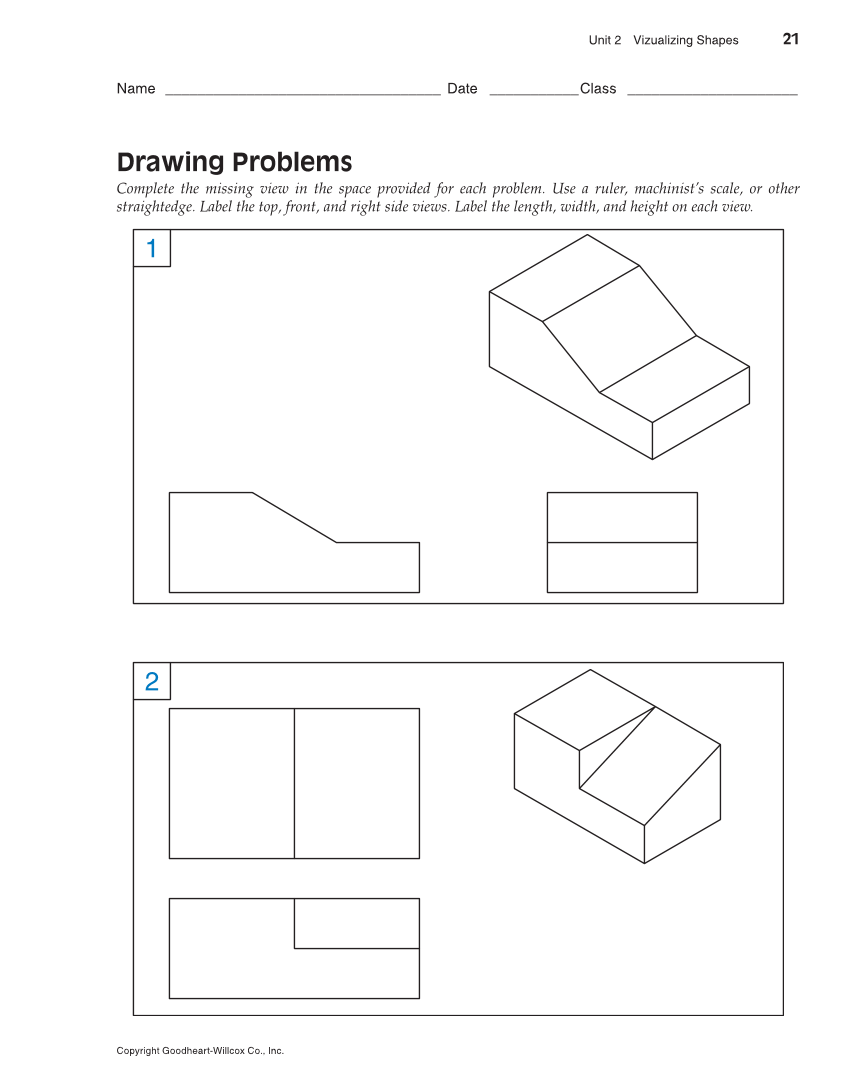

Unit 2 Vizualizing Shapes 21 Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ___________Class _____________________ Drawing Problems Complete the missing view in the space provided for each problem. Use a ruler, machinist’s scale, or other straightedge. Label the top, front, and right side views. Label the length, width, and height on each view. 1 2
