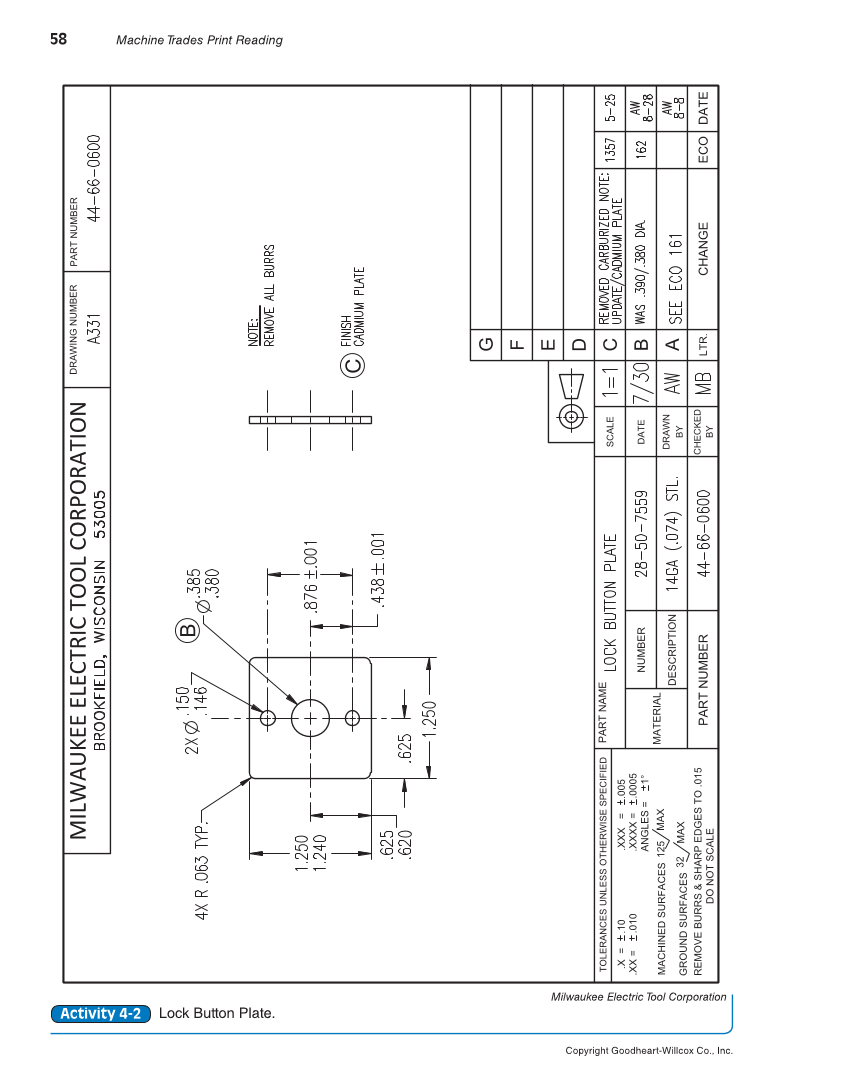

58 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Milwaukee Electric Tool Corporation Lock Button Plate. Activity 4-2 MATERIAL DRAWN CHECKED MILWAUKEE ELECTRIC TOOL CORPORATION PART NAME DATE SCALE BY BY CHANGE A LTR. B C DATE NUMBER DESCRIPTION PART NUMBER TOLERANCES UNLESS OTHERWISE SPECIFIED .X = .10 .XX = .010 DO NOT SCALE REMOVE BURRS & SHARP EDGES TO .015 ANGLES = 1° GROUND SURFACES MACHINED SURFACES 32 125 MAX MAX PART NUMBER DRAWING NUMBER ECO D E F G B C .XXXX = .0005 .XXX = .005
