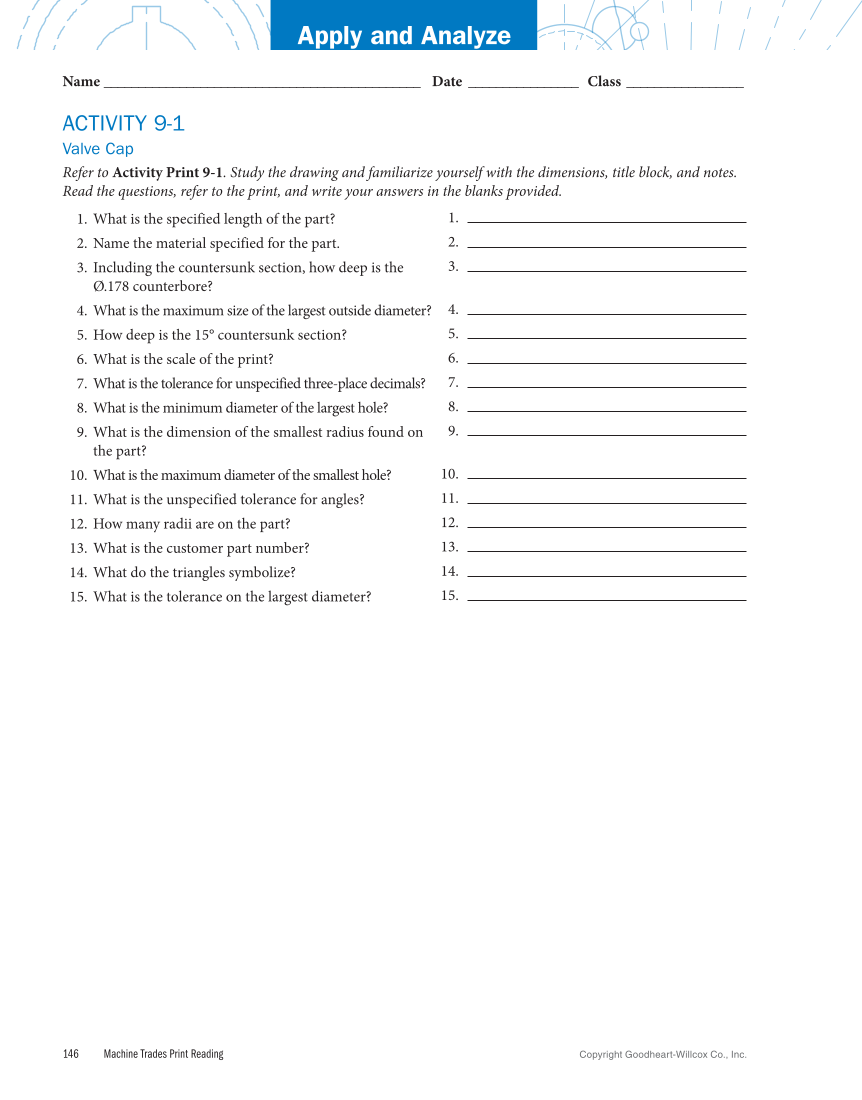

146 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Name _______________________________________________ Date _ ________________ Class __________________ Apply and Analyze ACTIVITY 9-1 Valve Cap Refer to Activity Print 9‑1. Study the drawing and familiarize yourself with the dimensions, title block, and notes. Read the questions, refer to the print, and write your answers in the blanks provided. 1. What is the specified length of the part? 2. Name the material specified for the part. 3. Including the countersunk section, how deep is the Ø.178 counterbore? 4. What is the maximum size of the largest outside diameter? 5. How deep is the 15° countersunk section? 6. What is the scale of the print? 7. What is the tolerance for unspecified three-place decimals? 8. What is the minimum diameter of the largest hole? 9. What is the dimension of the smallest radius found on the part? 10. What is the maximum diameter of the smallest hole? 11. What is the unspecified tolerance for angles? 12. How many radii are on the part? 13. What is the customer part number? 14. What do the triangles symbolize? 15. What is the tolerance on the largest diameter? 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.
