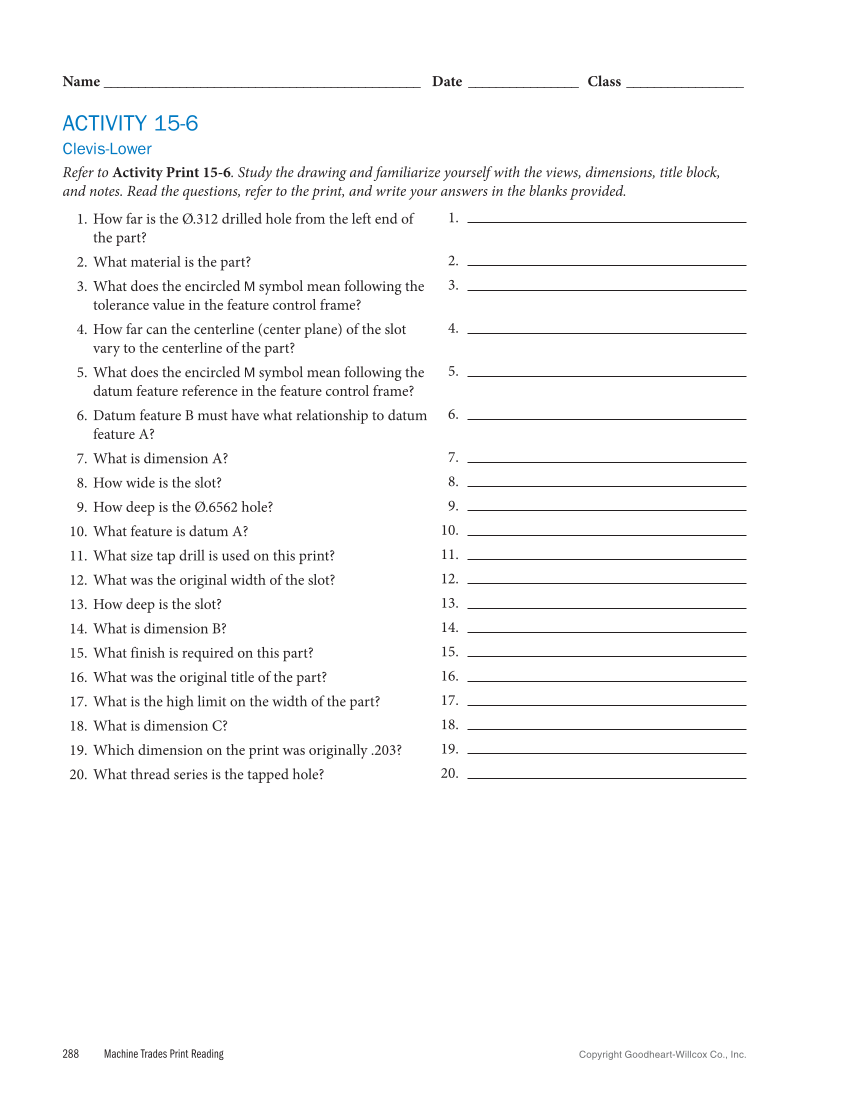

288 Machine Trades Print Reading Copyright Goodheart-Willcox Co., Inc. Name _______________________________________________ Date _ ________________ Class __________________ ACTIVITY 15-6 Clevis-Lower Refer to Activity Print 15‑6. Study the drawing and familiarize yourself with the views, dimensions, title block, and notes. Read the questions, refer to the print, and write your answers in the blanks provided. 1. How far is the Ø.312 drilled hole from the left end of the part? 2. What material is the part? 3. What does the encircled M symbol mean following the tolerance value in the feature control frame? 4. How far can the centerline (center plane) of the slot vary to the centerline of the part? 5. What does the encircled M symbol mean following the datum feature reference in the feature control frame? 6. Datum feature B must have what relationship to datum feature A? 7. What is dimension A? 8. How wide is the slot? 9. How deep is the Ø.6562 hole? 10. What feature is datum A? 11. What size tap drill is used on this print? 12. What was the original width of the slot? 13. How deep is the slot? 14. What is dimension B? 15. What finish is required on this part? 16. What was the original title of the part? 17. What is the high limit on the width of the part? 18. What is dimension C? 19. Which dimension on the print was originally .203? 20. What thread series is the tapped hole? 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.
