Machining Fundamentals
4

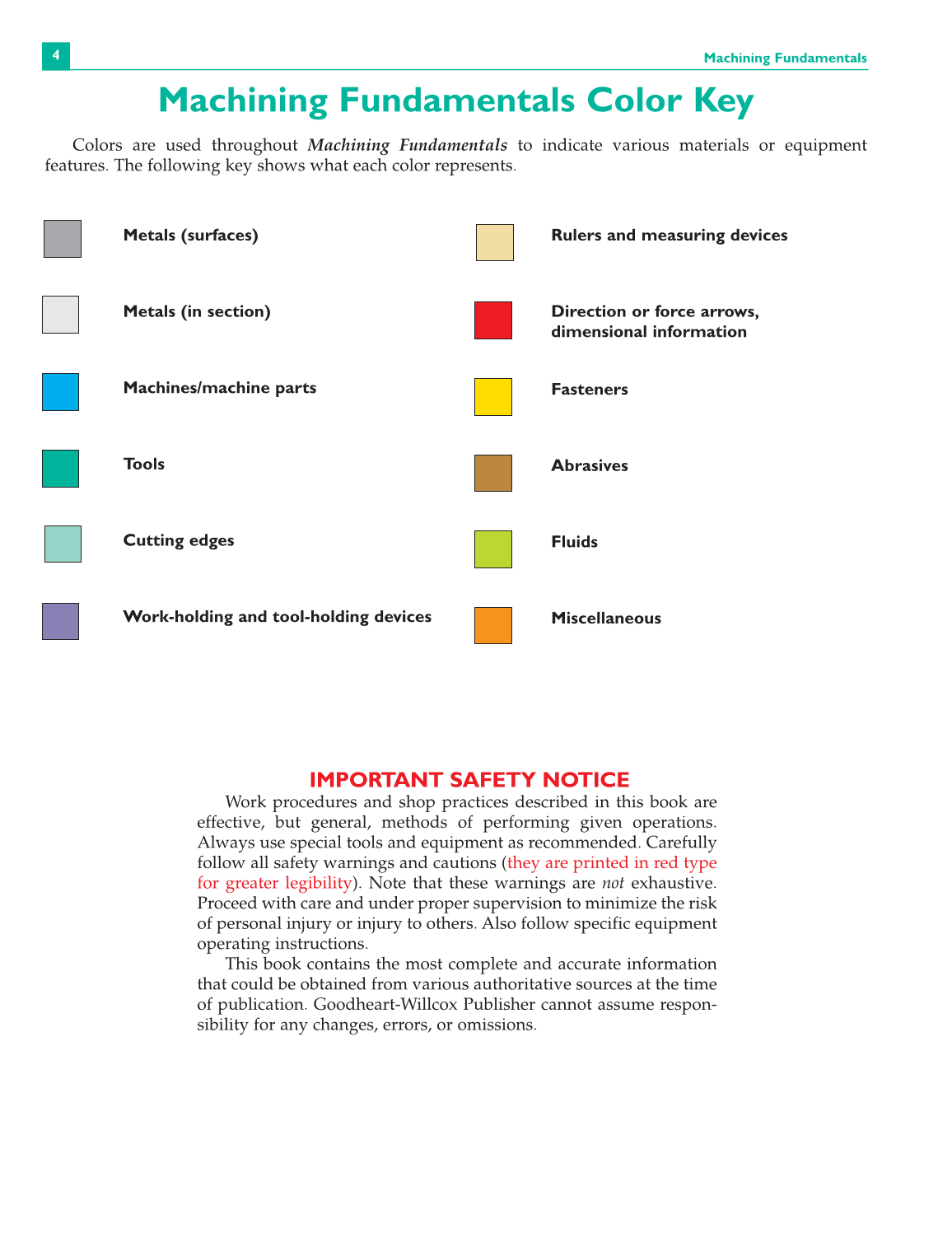

Machining Fundamentals Color Key
Colors are used throughout Machining Fundamentals to indicate various materials or equipment
features. The following key shows what each color represents.
IMPORTANT SAFETY NOTICE
Work procedures and shop practices described in this book are
effective, but general, methods of performing given operations.
Always use special tools and equipment as recommended. Carefully
follow all safety warnings and cautions (they are printed in red type
for greater legibility). Note that these warnings are not exhaustive.
Proceed with care and under proper supervision to minimize the risk
of personal injury or injury to others. Also follow specific equipment
operating instructions.
This book contains the most complete and accurate information
that could be obtained from various authoritative sources at the time
of publication. Goodheart-Willcox Publisher cannot assume respon-
sibility for any changes, errors, or omissions.
Metals (surfaces)
Metals (in section)
Machines/machine parts
Tools
Cutting edges
Work-holding and tool-holding devices
Rulers and measuring devices
Direction or force arrows,
dimensional information
Fasteners
Abrasives
Fluids
Miscellaneous
