Chapter 4 Measurement
77

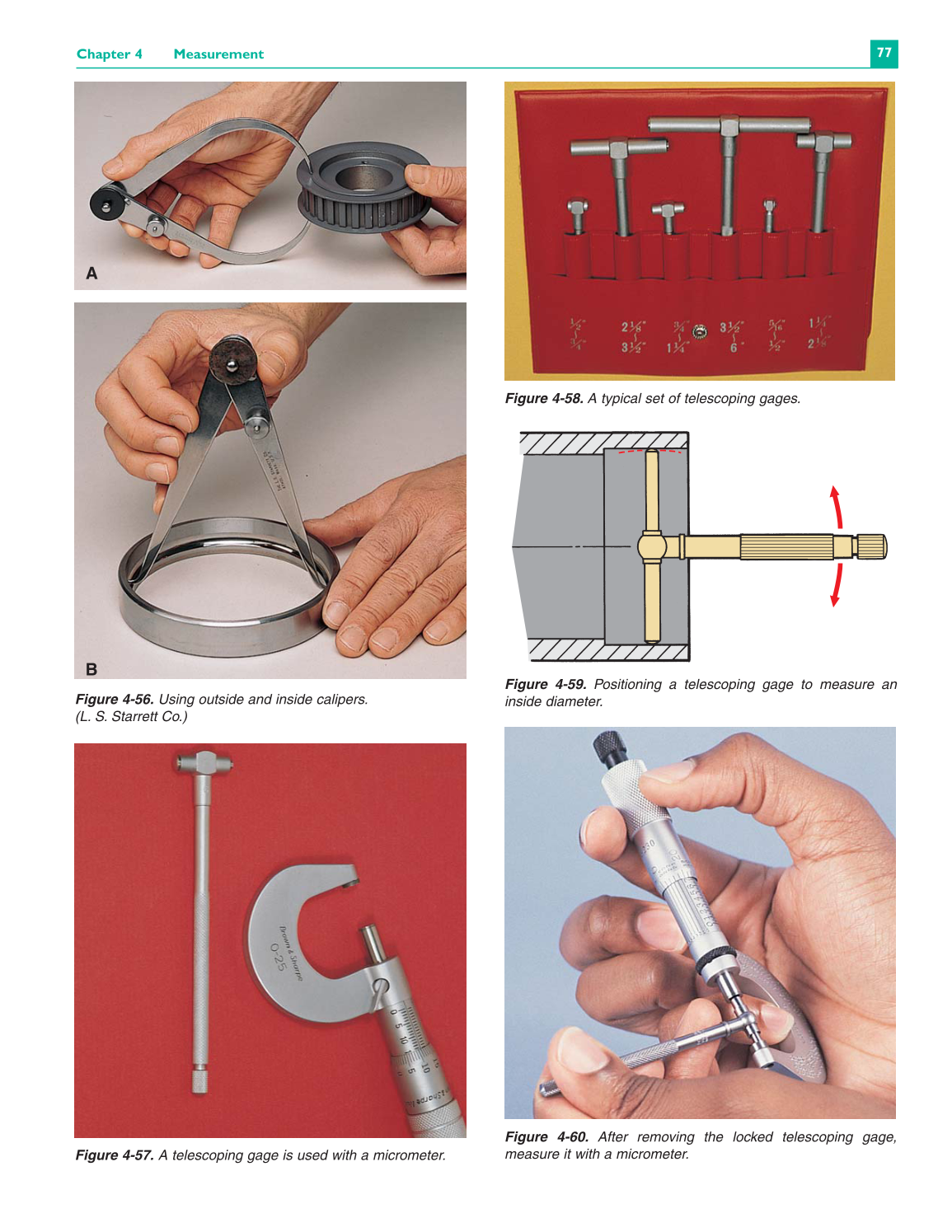

Figure 4-56. Using outside and inside calipers.
(L. S. Starrett Co.)
Figure 4-57. A telescoping gage is used with a micrometer.
Figure 4-58. A typical set of telescoping gages.
Figure 4-59. Positioning a telescoping gage to measure an
inside diameter.
Figure 4-60. After removing the locked telescoping gage,
measure it with a micrometer.
B
A
