Differential
side gear
Preload
spring
Ring gear
mounting surfaces
Multiple-disc
clutch sets
Differential
spider gear
Differential
case

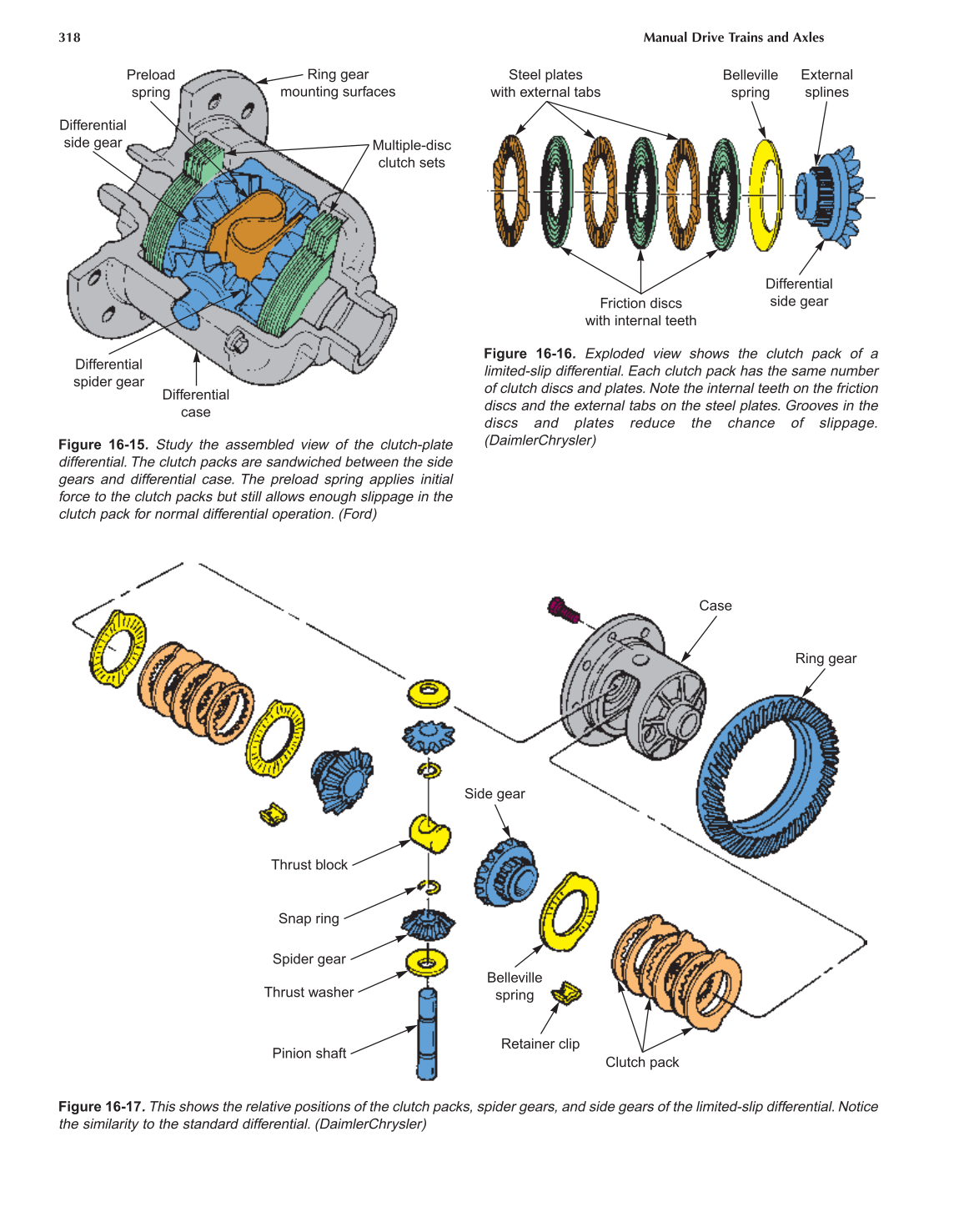

Figure 16-15. Study the assembled view of the clutch-plate
differential. The clutch packs are sandwiched between the side
gears and differential case. The preload spring applies initial
force to the clutch packs but still allows enough slippage in the
clutch pack for normal differential operation. (Ford)
Steel plates
with external tabs
Belleville
spring
External
splines
Differential
side gear
Friction discs
with internal teeth
Figure 16-16. Exploded view shows the clutch pack of a
limited-slip differential. Each clutch pack has the same number
of clutch discs and plates. Note the internal teeth on the friction
discs and the external tabs on the steel plates. Grooves in the
discs and plates reduce the chance of slippage.
(DaimlerChrysler)
Thrust block
Snap ring
Spider gear
Thrust washer
Pinion shaft
Side gear
Belleville
spring
Retainer clip
Clutch pack
Ring gear
Case
Figure 16-17. This shows the relative positions of the clutch packs, spider gears, and side gears of the limited-slip differential. Notice
the similarity to the standard differential. (DaimlerChrysler)
