Chapter 10 Manual Transaxle Construction and Operation 207
Copyright by Goodheart-Willcox Co., Inc.
56
57
58
59
60
61
14
13
**
47
**
48
53
54
14
55
Replace
71
72
68
69
70
73
74
**
51
43
10
1
Replace
2
3
4
Replace
5
6
Replace
7
8
44
45
**
46
**
49
**
42
**
41
**
40
**
50
*
52
96
95
Replace
97
94
93
92
15
Replace
91
90
89
80
79
75
76
**
77
*
78
14
84
85
86
87
81
82
83
38
37
88
31
14
13
12
11
30
29
28
27
26
98
25
24
23
**
22
*
21
20
19
18
17
16
32
33
34
98
35
36
39
62
63
64
65
66
67
* 4–speed only
** 5–speed only
26. Needle bearing
27. Spacer collar
28. Synchro ring
29. Synchro spring
30. Reverse gear
31. Synchro hub
32. Synchro spring
33. Synchro ring
34. Countershaft 1st gear
35. Needle bearing
36. Countershaft
37. Needle bearing
38. Oil barrier
39. 5th reverse shift fork shaft
40. Roller (5-speed only)
41. 5th detent spring (5-speed only)
42. 5th shift fork (5-speed only)
43. Oil guide plate
44. Thrust shim
45. Ball bearing
46. Synchro hub (5-speed only)
47. Synchro sleeve (5-speed only)
48. Synchro spring (5-speed only)
49. Synchro ring (5-speed only)
50. 5th gear (5-speed only)
51. Needle bearing (5-speed only)
52. Collar (4-speed only)
53. 3rd/4th shift fork
54. Shift piece
55. Spring pin
56. Spacer collar
57. 4th gear
58. Needle bearing
59. Synchro ring
60. Synchro spring
61. Synchro hub
62. Synchro sleeve
63. Synchro spring
64. Synchro ring
65. 3rd gear
66. Needle bearing
67. Mainshaft
68. Spring washer
69. Ball bearing
70. Oil seal
71. Reverse idler gear
72. Reverse idler shaft
73. Reverse shift holder
74. Magnet
75. Reverse select spring
76. Reverse return select
77. Shift arm C (5-speed only)
78. Shift arm C (4-speed only)
79. Shift arm A
80. Reverse lock cam
81. Shift arm B
82. Interlock
83. Dowel pin
84. Spring
85. Spring collar
86. Spring bolt
87. Spring
88. Shift rod
89. Boot
90. Shim
91. Differential assembly
92. 28 mm plug
93. 1st/2nd select spring
94. Shift arm shaft
95. Oil seal
96. Clutch housing
97. Interlock guide bolt
98. Friction damper
1. Washer
2. Oil drain plug
3. 32 mm sealing bolt
4. Oil seal
5. Oil filler bolt
6. Sealing washer
7. Transmission housing
8. Back-up light switch
9. Clutch cable bracket
10. Breather tube
11. 1st/2nd shift fork
12. 1st/2nd shift fork shaft
13. Shift fork spring
14. Steel ball
15. Spring pin
16. Snap ring
17. Countershaft locknut
18. Washer
19. Ball bearing
20. Needle bearing
21. Collar (4-speed only)
22. Countershaft 5th gear
23. Countershaft 4th gear
24. Countershaft 3rd gear
25. Countershaft 2nd gear
9

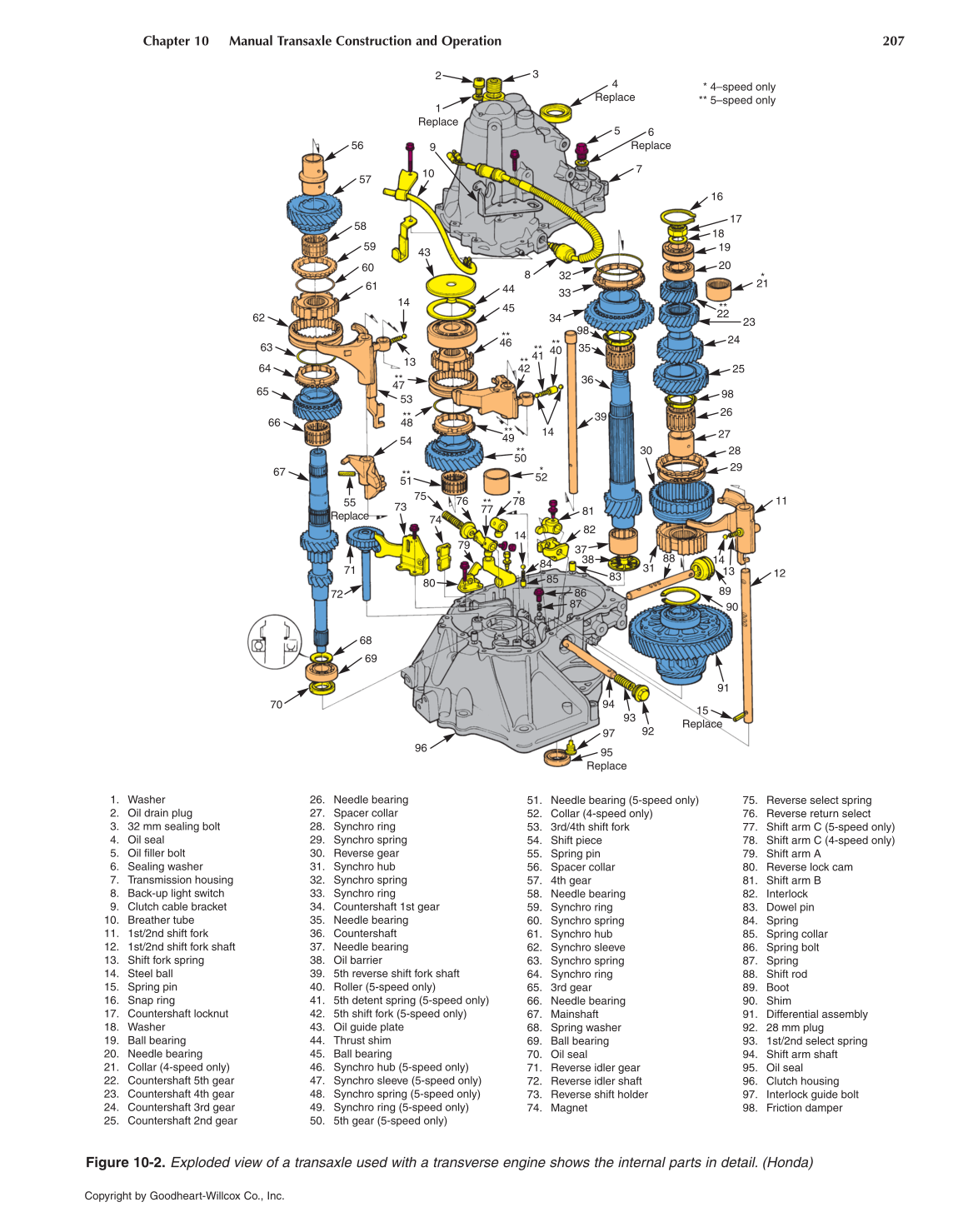

Figure 10-2. Exploded view of a transaxle used with a transverse engine shows the internal parts in detail. (Honda)
