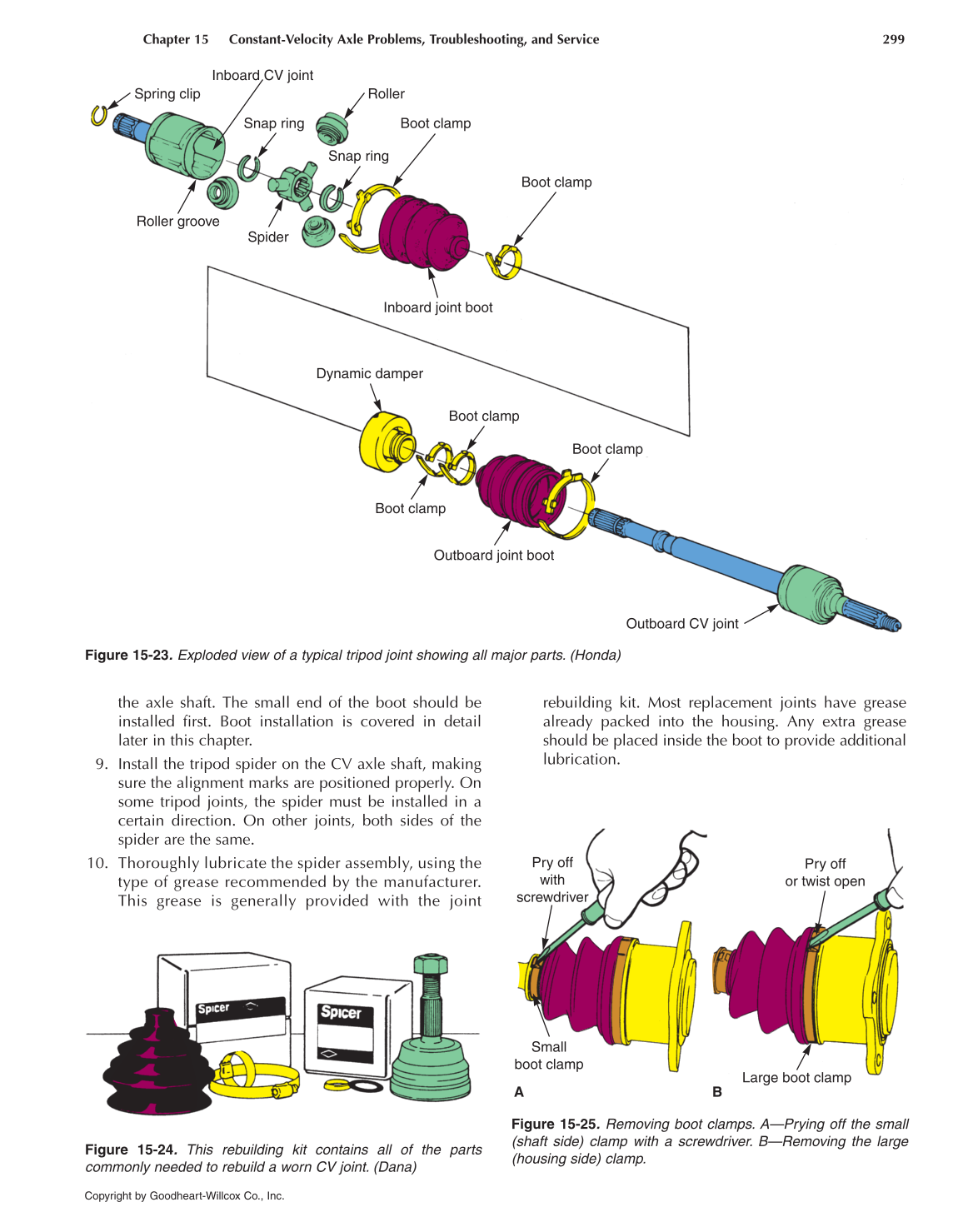

Figure 15-23. Exploded view of a typical tripod joint showing all major parts. (Honda)
Figure 15-24. This rebuilding kit contains all of the parts
commonly needed to rebuild a worn CV joint. (Dana)
the axle shaft. The small end of the boot should be
installed first. Boot installation is covered in detail
later in this chapter.
9. Install the tripod spider on the CV axle shaft, making
sure the alignment marks are positioned properly. On
some tripod joints, the spider must be installed in a
certain direction. On other joints, both sides of the
spider are the same.
10. Thoroughly lubricate the spider assembly, using the
type of grease recommended by the manufacturer.
This grease is generally provided with the joint
rebuilding kit. Most replacement joints have grease
already packed into the housing. Any extra grease
should be placed inside the boot to provide additional
lubrication.
