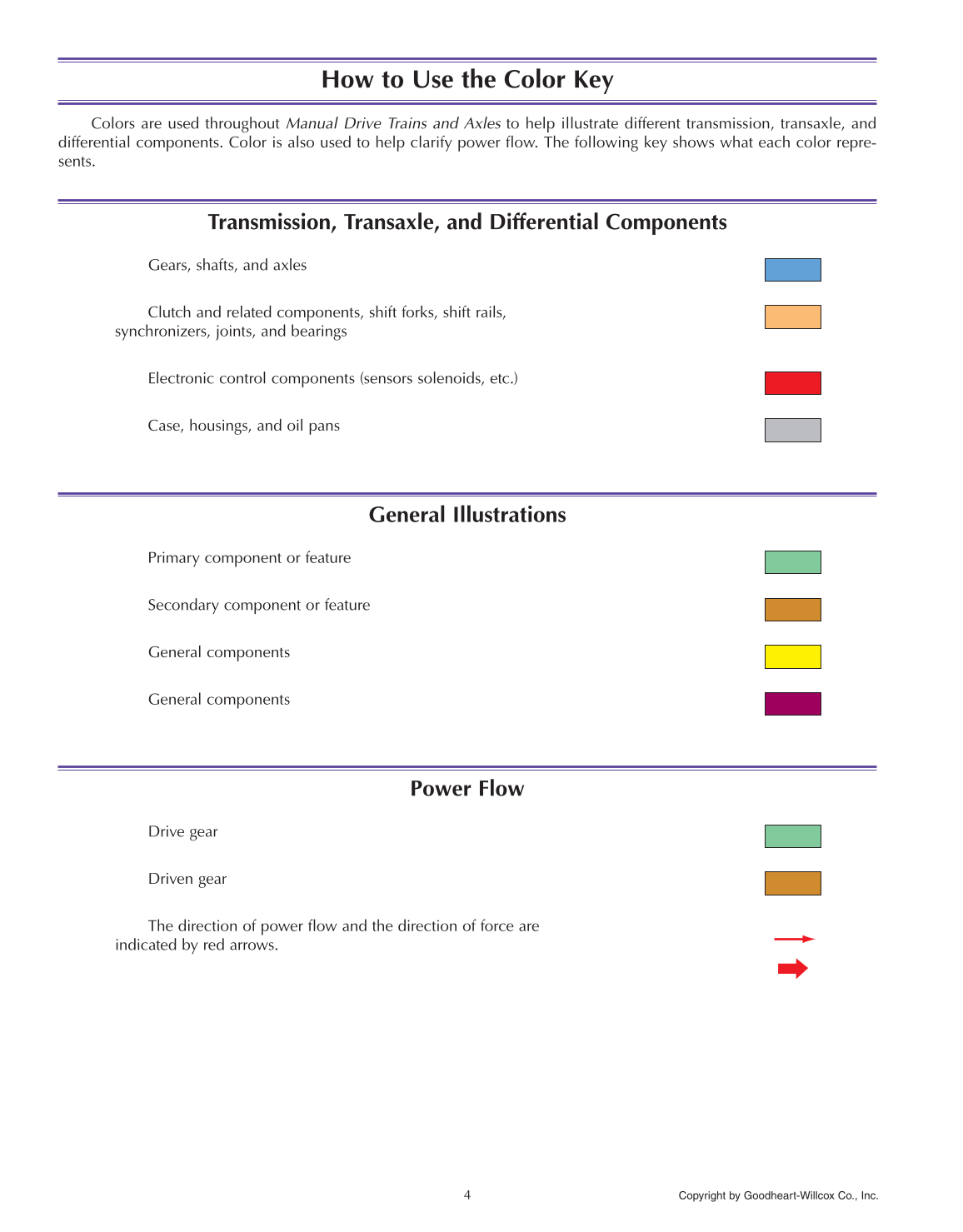

How to Use the Color Key
Colors are used throughout Manual Drive Trains and Axles to help illustrate different transmission, transaxle, and
differential components. Color is also used to help clarify power flow. The following key shows what each color repre-
sents.
Transmission, Transaxle, and Differential Components
Gears, shafts, and axles
Clutch and related components, shift forks, shift rails,
synchronizers, joints, and bearings
Electronic control components (sensors solenoids, etc.)
Case, housings, and oil pans
General Illustrations
Primary component or feature
Secondary component or feature
General components
General components
Power Flow
Drive gear
Driven gear
The direction of power flow and the direction of force are
indicated by red arrows.
