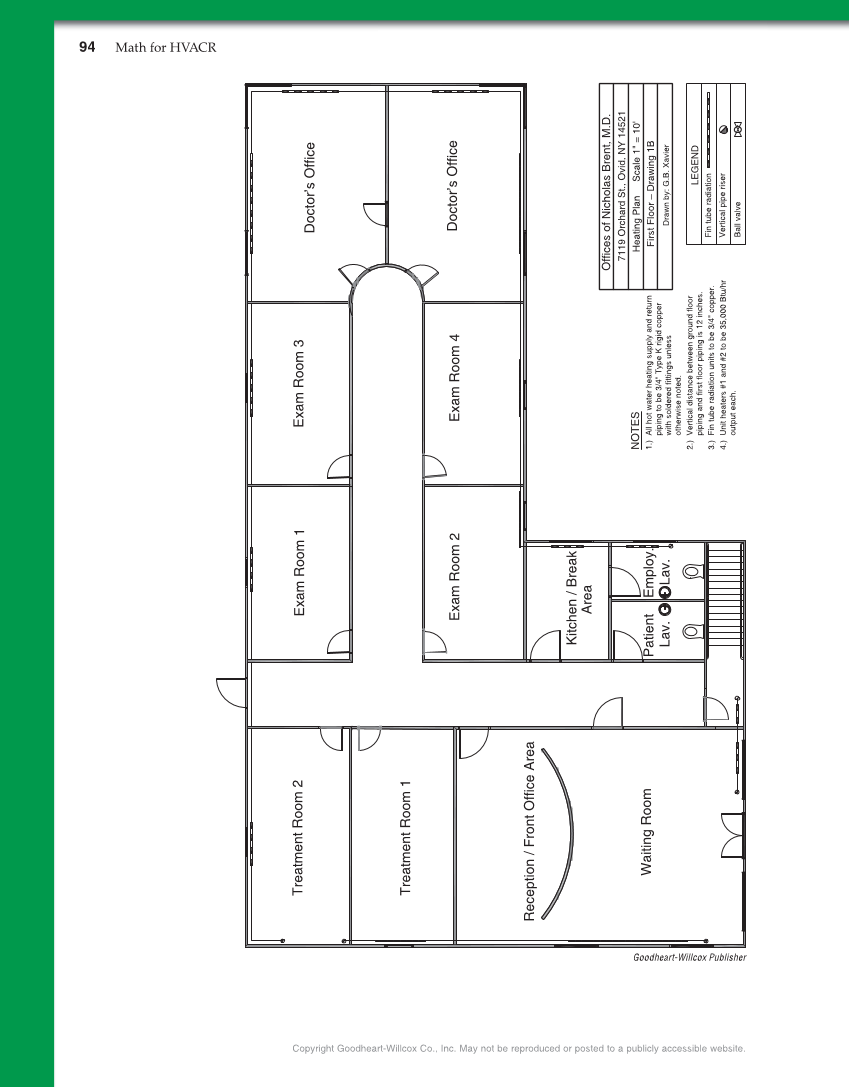

Waiting Room Treatment Room 1 Treatment Room 2 Reception / Front Office Area Exam Room 1 Exam Room 3 Exam Room 2 Exam Room 4 Doctor’s Office Doctor’s Office Patient Kitchen / Break LEGEND Fin tube radiation Vertical pipe riser Ball valve Offices of Nicholas Brent, M.D. 7119 Orchard St., Ovid, NY 14521 Heating Plan Scale 1" = 10' First Floor – Drawing 1B Drawn by: G.B. Xavier NOTES All hot water heating supply and return piping to be 3/4" Type K rigid copper with soldered fittings unless otherwise noted. Vertical distance between ground floor piping and first floor piping is 12 inches. Fin tube radiation units to be 3/4" copper. Unit heaters #1 and #2 to be 35,000 Btu/hr output each. Area Lav. Employ. Lav. 1.) 2.) 3.) 4.) Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website.. 94 Math for HVACR Goodheart-Willcox Publisher
