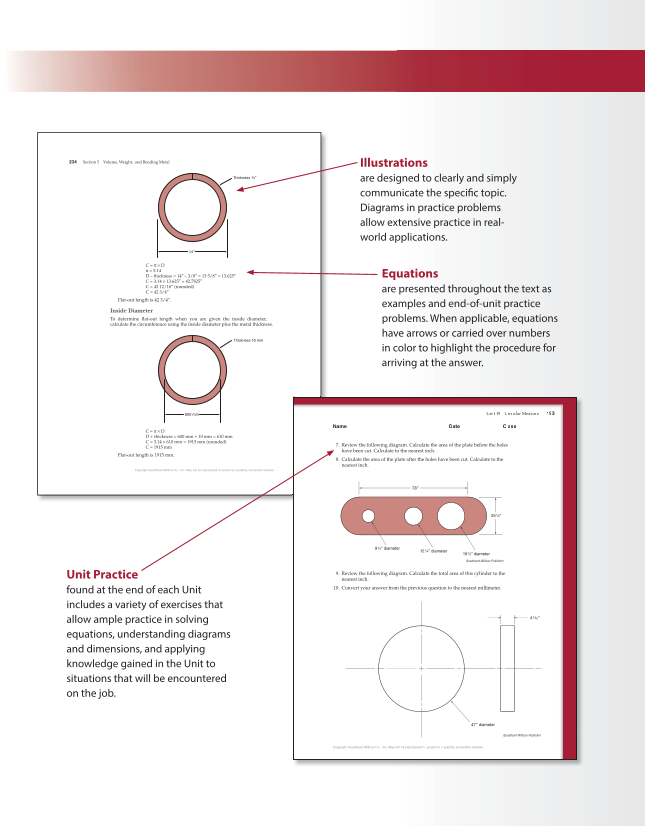

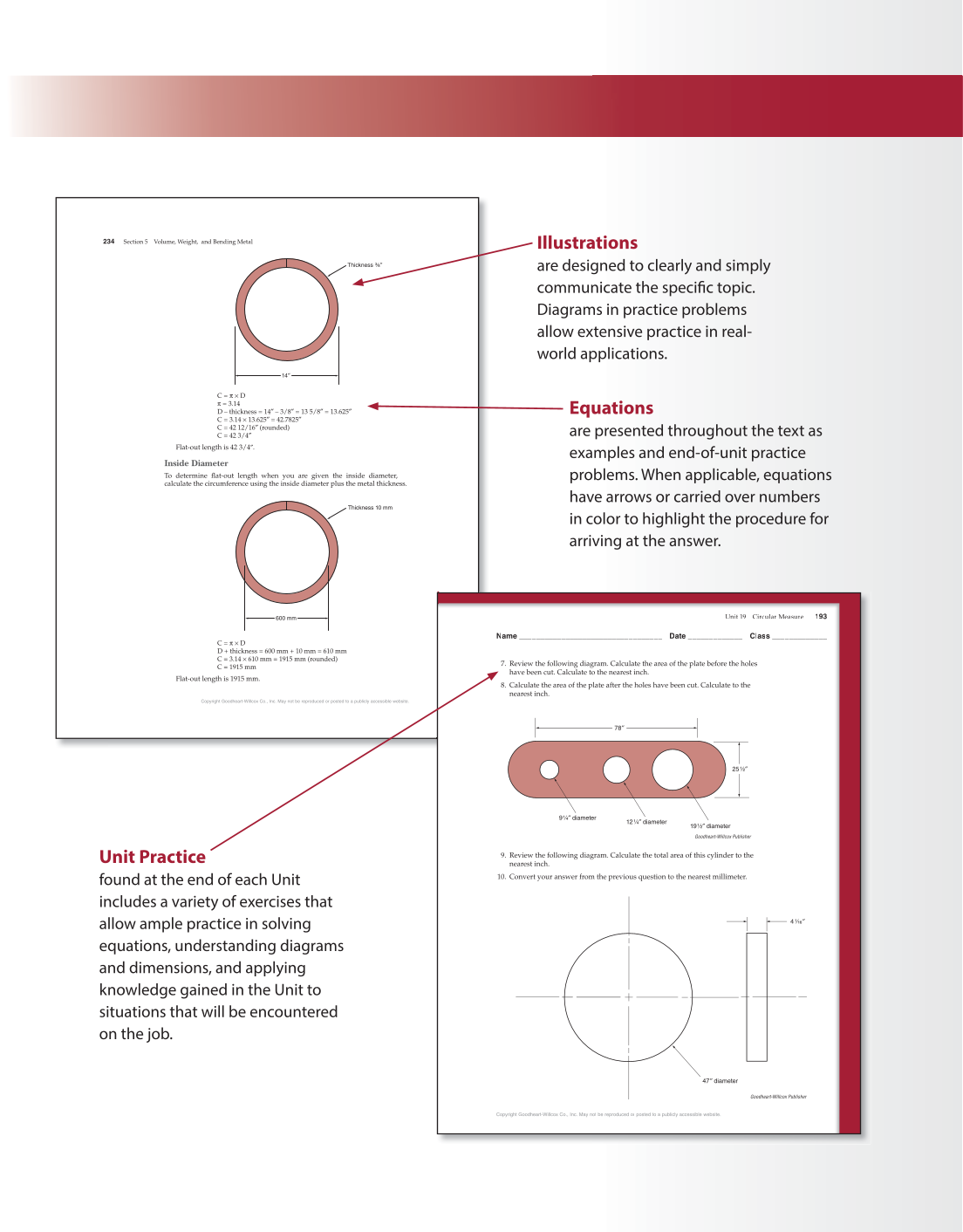

Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. 234 Section 5 Volume, Weight, and Bending Metal C = π × D π = 3.14 D – thickness = 14″ – 3/8″ = 13 5/8″ = 13.625″ C = 3.14 × 13.625″ = 42.7825″ C = 42 12/16″ (rounded) C = 42 3/4″ Flat-out length is 42 3/4″. Inside Diameter calculate the circumference using the inside diameter plus the metal thickness. C = π × D D + thickness = 600 mm + 10 mm = 610 mm C = 3.14 × 610 mm = 1915 mm (rounded) C = 1915 mm Flat-out length is 1915 mm. 14″ Thickness ⅜″ 600 mm Thickness 10 mm Copyright Goodheart-Willcox Co., Inc. May not reproduced or posted a publicly accessible website. Unit 19 Circular Measuree 1933 Name __________________________________ Date _____________ Class C opyright G oodheart-Willcox C o., Inc. M ay no t bbe e reproduced or posted tto o a publicly accessible website. U n it 1 9 Circular M eas u r 1 9 Na m e __________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ D at e _____________ _ _ _ _ _ _ _ _ _ _ Class __________________________ _ _ _ _ _ _ _ 9. Review the following diagram. Calculate the total area of this cylinder to the nearest inch. 10. Convert your answer from the previous question to the nearest millimeter. 7. Review the following diagram. Calculate the area of the plate before the holes have been cut. Calculate to the nearest inch. 8. Calculate the area of the plate after the holes have been cut. Calculate to the nearest inch. 9¼″ diameter 12¼″ diameter 19½″ diameter 78″ 25½″ 4 ″ 47″ diameter Goodheart-Willcox Publisher Goodheart-Willcox Publisher Illustrations are designed to clearly and simply communicate the specifi c topic. Diagrams in practice problems allow extensive practice in real- world applications. Equations are presented throughout the text as examples and end-of-unit practice problems. When applicable, equations have arrows or carried over numbers in color to highlight the procedure for arriving at the answer. Unit Practice found at the end of each Unit includes a variety of exercises that allow ample practice in solving equations, understanding diagrams and dimensions, and applying knowledge gained in the Unit to situations that will be encountered on the job.
