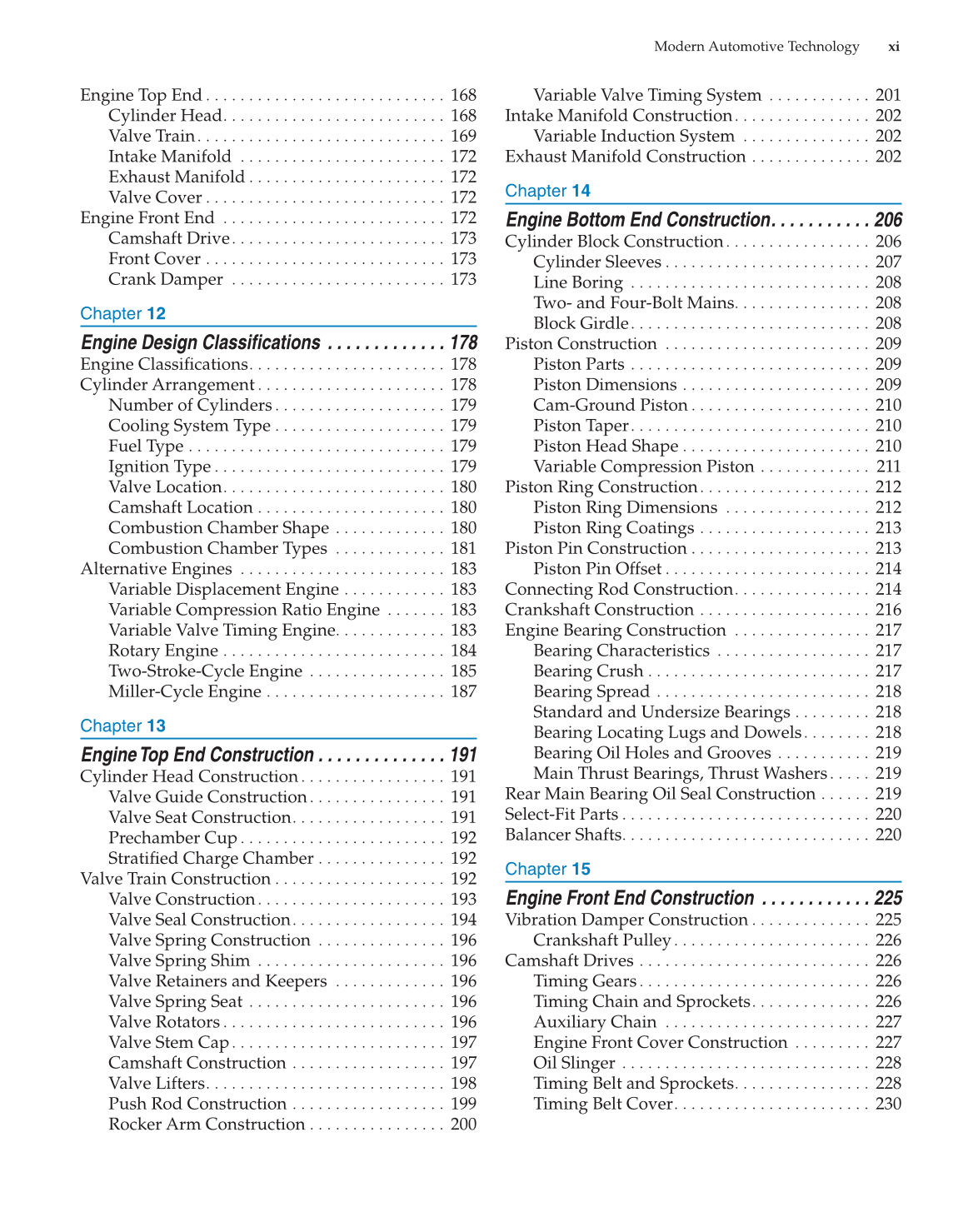

Modern Automotive Technology xi
Engine Top End . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Cylinder Head. . . . . . . . . . . . . . . . . . . . . . . . . . 168
Valve Train. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Intake Manifold . . . . . . . . . . . . . . . . . . . . . . . . 172
Exhaust Manifold . . . . . . . . . . . . . . . . . . . . . . . 172
Valve Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Engine Front End . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Camshaft Drive. . . . . . . . . . . . . . . . . . . . . . . . . 173
Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Crank Damper . . . . . . . . . . . . . . . . . . . . . . . . . 173
Chapter 12
Engine Design Classifi cations . . . . . . . . . . . . . 178
Engine Classifi cations. . . . . . . . . . . . . . . . . . . . . . . 178
Cylinder Arrangement . . . . . . . . . . . . . . . . . . . . . . 178
Number of Cylinders . . . . . . . . . . . . . . . . . . . . 179
Cooling System Type . . . . . . . . . . . . . . . . . . . . 179
Fuel Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Ignition Type . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Valve Location. . . . . . . . . . . . . . . . . . . . . . . . . . 180
Camshaft Location . . . . . . . . . . . . . . . . . . . . . . 180
Combustion Chamber Shape . . . . . . . . . . . . . 180
Combustion Chamber Types . . . . . . . . . . . . . 181
Alternative Engines . . . . . . . . . . . . . . . . . . . . . . . . 183
Variable Displacement Engine . . . . . . . . . . . . 183
Variable Compression Ratio Engine . . . . . . . 183
Variable Valve Timing Engine. . . . . . . . . . . . . 183
Rotary Engine . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Two-Stroke-Cycle Engine . . . . . . . . . . . . . . . . 185
Miller-Cycle Engine . . . . . . . . . . . . . . . . . . . . . 187
Chapter 13
Engine Top End Construction . . . . . . . . . . . . . . 191
Cylinder Head Construction. . . . . . . . . . . . . . . . . 191
Valve Guide Construction. . . . . . . . . . . . . . . . 191
Valve Seat Construction. . . . . . . . . . . . . . . . . . 191
Prechamber Cup . . . . . . . . . . . . . . . . . . . . . . . . 192
Stratifi ed Charge Chamber . . . . . . . . . . . . . . . 192
Valve Train Construction . . . . . . . . . . . . . . . . . . . . 192
Valve Construction. . . . . . . . . . . . . . . . . . . . . . 193
Valve Seal Construction. . . . . . . . . . . . . . . . . . 194
Valve Spring Construction . . . . . . . . . . . . . . . 196
Valve Spring Shim . . . . . . . . . . . . . . . . . . . . . . 196
Valve Retainers and Keepers . . . . . . . . . . . . . 196
Valve Spring Seat . . . . . . . . . . . . . . . . . . . . . . . 196
Valve Rotators . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Valve Stem Cap. . . . . . . . . . . . . . . . . . . . . . . . . 197
Camshaft Construction . . . . . . . . . . . . . . . . . . 197
Valve Lifters. . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Push Rod Construction . . . . . . . . . . . . . . . . . . 199
Rocker Arm Construction . . . . . . . . . . . . . . . . 200
Variable Valve Timing System . . . . . . . . . . . . 201
Intake Manifold Construction. . . . . . . . . . . . . . . . 202
Variable Induction System . . . . . . . . . . . . . . . 202
Exhaust Manifold Construction . . . . . . . . . . . . . . 202
Chapter 14
Engine Bottom End Construction. . . . . . . . . . . 206
Cylinder Block Construction. . . . . . . . . . . . . . . . . 206
Cylinder Sleeves . . . . . . . . . . . . . . . . . . . . . . . . 207
Line Boring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Two- and Four-Bolt Mains. . . . . . . . . . . . . . . . 208
Block Girdle. . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Piston Construction . . . . . . . . . . . . . . . . . . . . . . . . 209
Piston Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Piston Dimensions . . . . . . . . . . . . . . . . . . . . . . 209
Cam-Ground Piston . . . . . . . . . . . . . . . . . . . . . 210
Piston Taper. . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Piston Head Shape . . . . . . . . . . . . . . . . . . . . . . 210
Variable Compression Piston . . . . . . . . . . . . . 211
Piston Ring Construction. . . . . . . . . . . . . . . . . . . . 212
Piston Ring Dimensions . . . . . . . . . . . . . . . . . 212
Piston Ring Coatings . . . . . . . . . . . . . . . . . . . . 213
Piston Pin Construction . . . . . . . . . . . . . . . . . . . . . 213
Piston Pin Offset . . . . . . . . . . . . . . . . . . . . . . . . 214
Connecting Rod Construction. . . . . . . . . . . . . . . . 214
Crankshaft Construction . . . . . . . . . . . . . . . . . . . . 216
Engine Bearing Construction . . . . . . . . . . . . . . . . 217
Bearing Characteristics . . . . . . . . . . . . . . . . . . 217
Bearing Crush . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Bearing Spread . . . . . . . . . . . . . . . . . . . . . . . . . 218
Standard and Undersize Bearings . . . . . . . . . 218
Bearing Locating Lugs and Dowels. . . . . . . . 218
Bearing Oil Holes and Grooves . . . . . . . . . . . 219
Main Thrust Bearings, Thrust Washers. . . . . 219
Rear Main Bearing Oil Seal Construction . . . . . . 219
Select-Fit Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Balancer Shafts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Chapter 15
Engine Front End Construction . . . . . . . . . . . . 225
Vibration Damper Construction . . . . . . . . . . . . . . 225
Crankshaft Pulley. . . . . . . . . . . . . . . . . . . . . . . 226
Camshaft Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Timing Gears. . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Timing Chain and Sprockets. . . . . . . . . . . . . . 226
Auxiliary Chain . . . . . . . . . . . . . . . . . . . . . . . . 227
Engine Front Cover Construction . . . . . . . . . 227
Oil Slinger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Timing Belt and Sprockets. . . . . . . . . . . . . . . . 228
Timing Belt Cover. . . . . . . . . . . . . . . . . . . . . . . 230
