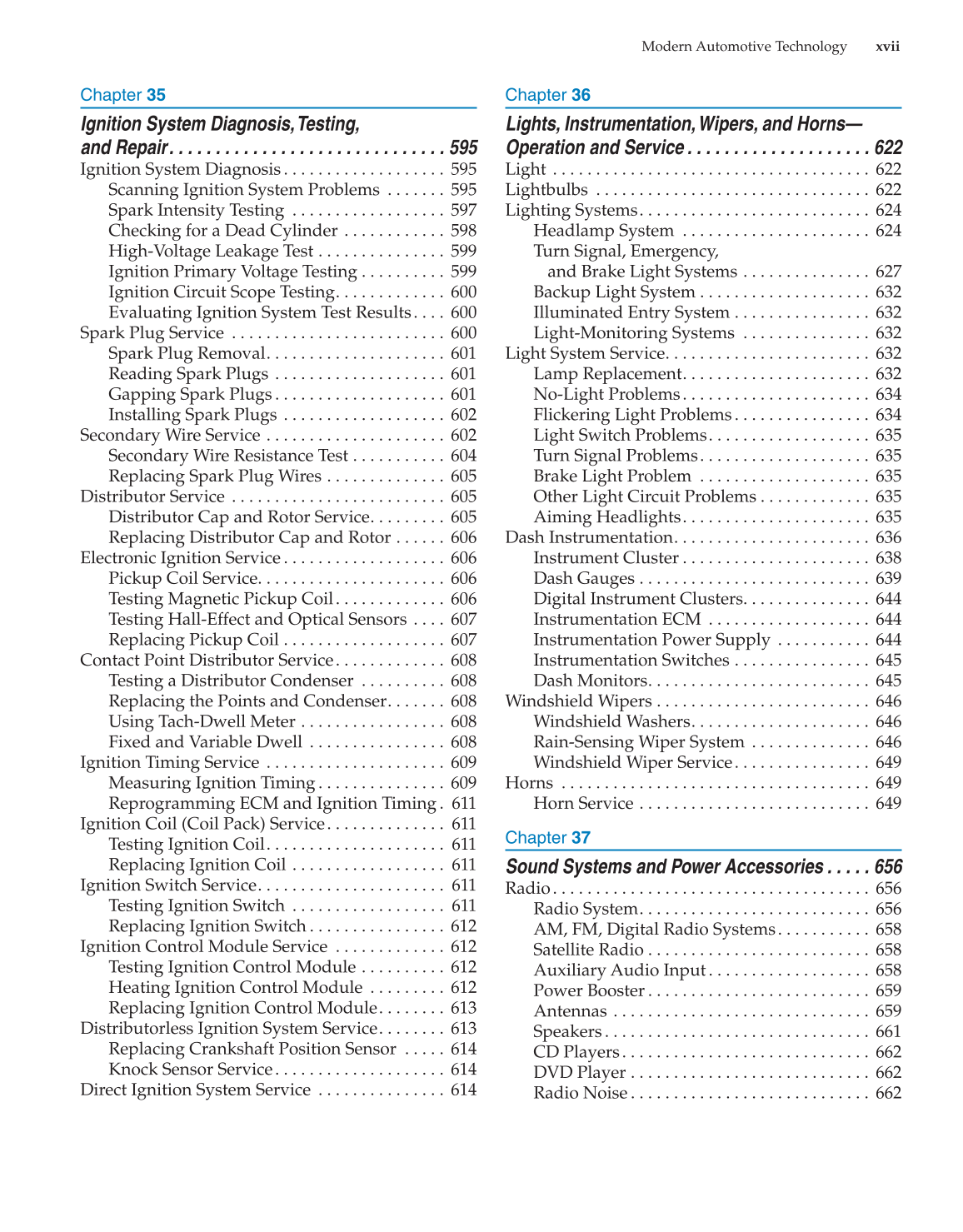

Modern Automotive Technology xvii
Chapter 35
Ignition System Diagnosis, Testing,
and Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 595
Ignition System Diagnosis . . . . . . . . . . . . . . . . . . . 595
Scanning Ignition System Problems . . . . . . . 595
Spark Intensity Testing . . . . . . . . . . . . . . . . . . 597
Checking for a Dead Cylinder . . . . . . . . . . . . 598
High-Voltage Leakage Test . . . . . . . . . . . . . . . 599
Ignition Primary Voltage Testing . . . . . . . . . . 599
Ignition Circuit Scope Testing. . . . . . . . . . . . . 600
Evaluating Ignition System Test Results. . . . 600
Spark Plug Service . . . . . . . . . . . . . . . . . . . . . . . . . 600
Spark Plug Removal. . . . . . . . . . . . . . . . . . . . . 601
Reading Spark Plugs . . . . . . . . . . . . . . . . . . . . 601
Gapping Spark Plugs . . . . . . . . . . . . . . . . . . . . 601
Installing Spark Plugs . . . . . . . . . . . . . . . . . . . 602
Secondary Wire Service . . . . . . . . . . . . . . . . . . . . . 602
Secondary Wire Resistance Test . . . . . . . . . . . 604
Replacing Spark Plug Wires . . . . . . . . . . . . . . 605
Distributor Service . . . . . . . . . . . . . . . . . . . . . . . . . 605
Distributor Cap and Rotor Service. . . . . . . . . 605
Replacing Distributor Cap and Rotor . . . . . . 606
Electronic Ignition Service . . . . . . . . . . . . . . . . . . . 606
Pickup Coil Service. . . . . . . . . . . . . . . . . . . . . . 606
Testing Magnetic Pickup Coil. . . . . . . . . . . . . 606
Testing Hall-Effect and Optical Sensors . . . . 607
Replacing Pickup Coil . . . . . . . . . . . . . . . . . . . 607
Contact Point Distributor Service. . . . . . . . . . . . . 608
Testing a Distributor Condenser . . . . . . . . . . 608
Replacing the Points and Condenser. . . . . . . 608
Using Tach-Dwell Meter . . . . . . . . . . . . . . . . . 608
Fixed and Variable Dwell . . . . . . . . . . . . . . . . 608
Ignition Timing Service . . . . . . . . . . . . . . . . . . . . . 609
Measuring Ignition Timing . . . . . . . . . . . . . . . 609
Reprogramming ECM and Ignition Timing . 611
Ignition Coil (Coil Pack) Service. . . . . . . . . . . . . . 611
Testing Ignition Coil. . . . . . . . . . . . . . . . . . . . . 611
Replacing Ignition Coil . . . . . . . . . . . . . . . . . . 611
Ignition Switch Service. . . . . . . . . . . . . . . . . . . . . . 611
Testing Ignition Switch . . . . . . . . . . . . . . . . . . 611
Replacing Ignition Switch . . . . . . . . . . . . . . . . 612
Ignition Control Module Service . . . . . . . . . . . . . 612
Testing Ignition Control Module . . . . . . . . . . 612
Heating Ignition Control Module . . . . . . . . . 612
Replacing Ignition Control Module. . . . . . . . 613
Distributorless Ignition System Service. . . . . . . . 613
Replacing Crankshaft Position Sensor . . . . . 614
Knock Sensor Service. . . . . . . . . . . . . . . . . . . . 614
Direct Ignition System Service . . . . . . . . . . . . . . . 614
Chapter 36
Lights, Instrumentation, Wipers, and Horns—
Operation and Service . . . . . . . . . . . . . . . . . . . . 622
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622
Lightbulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 622
Lighting Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . 624
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 624
Turn Signal, Emergency,
and Brake Light Systems . . . . . . . . . . . . . . . 627
Backup Light System . . . . . . . . . . . . . . . . . . . . 632
Illuminated Entry System . . . . . . . . . . . . . . . . 632
Light-Monitoring Systems . . . . . . . . . . . . . . . 632
Light System Service. . . . . . . . . . . . . . . . . . . . . . . . 632
Lamp Replacement. . . . . . . . . . . . . . . . . . . . . . 632
No-Light Problems. . . . . . . . . . . . . . . . . . . . . . 634
Flickering Light Problems . . . . . . . . . . . . . . . . 634
Light Switch Problems. . . . . . . . . . . . . . . . . . . 635
Turn Signal Problems. . . . . . . . . . . . . . . . . . . . 635
Brake Light Problem . . . . . . . . . . . . . . . . . . . . 635
Other Light Circuit Problems . . . . . . . . . . . . . 635
Aiming Headlights. . . . . . . . . . . . . . . . . . . . . . 635
Dash Instrumentation. . . . . . . . . . . . . . . . . . . . . . . 636
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . 638
Dash Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
Digital Instrument Clusters. . . . . . . . . . . . . . . 644
Instrumentation ECM . . . . . . . . . . . . . . . . . . . 644
Instrumentation Power Supply . . . . . . . . . . . 644
Instrumentation Switches . . . . . . . . . . . . . . . . 645
Dash Monitors. . . . . . . . . . . . . . . . . . . . . . . . . . 645
Windshield Wipers . . . . . . . . . . . . . . . . . . . . . . . . . 646
Windshield Washers. . . . . . . . . . . . . . . . . . . . . 646
Rain-Sensing Wiper System . . . . . . . . . . . . . . 646
Windshield Wiper Service. . . . . . . . . . . . . . . . 649
Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 649
Horn Service . . . . . . . . . . . . . . . . . . . . . . . . . . . 649
Chapter 37
Sound Systems and Power Accessories . . . . . 656
Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 656
Radio System. . . . . . . . . . . . . . . . . . . . . . . . . . . 656
AM, FM, Digital Radio Systems. . . . . . . . . . . 658
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 658
Auxiliary Audio Input . . . . . . . . . . . . . . . . . . . 658
Power Booster . . . . . . . . . . . . . . . . . . . . . . . . . . 659
Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 659
Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 661
CD Players. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 662
DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . 662
Radio Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . 662
