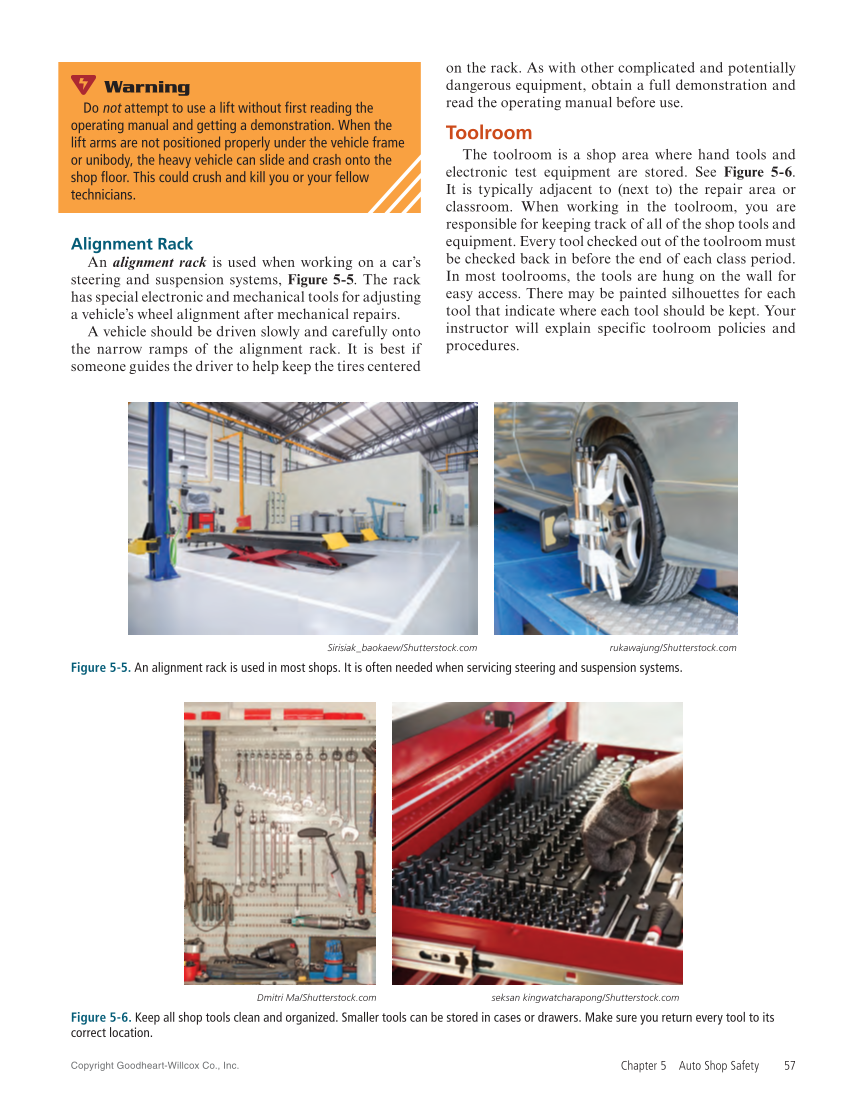

Chapter 5 Auto Shop Safety 57 Copyright Goodheart-Willcox Co., Inc. Alignment Rack An alignment rack is used when working on a car’s steering and suspension systems, Figure 5‑5. The rack has special electronic and mechanical tools for adjusting a vehicle’s wheel alignment after mechanical repairs. A vehicle should be driven slowly and carefully onto the narrow ramps of the alignment rack. It is best if someone guides the driver to help keep the tires centered Warning Do not attempt to use a lift without first reading the operating manual and getting a demonstration. When the lift arms are not positioned properly under the vehicle frame or unibody, the heavy vehicle can slide and crash onto the shop floor. This could crush and kill you or your fellow technicians. on the rack. As with other complicated and potentially dangerous equipment, obtain a full demonstration and read the operating manual before use. Toolroom The toolroom is a shop area where hand tools and electronic test equipment are stored. See Figure 5‑6. It is typically adjacent to (next to) the repair area or classroom. When working in the toolroom, you are responsible for keeping track of all of the shop tools and equipment. Every tool checked out of the toolroom must be checked back in before the end of each class period. In most toolrooms, the tools are hung on the wall for easy access. There may be painted silhouettes for each tool that indicate where each tool should be kept. Your instructor will explain specific toolroom policies and procedures. rukawajung/Shutterstock.com Figure 5-5. An alignment rack is used in most shops. It is often needed when servicing steering and suspension systems. Sirisiak_baokaew/Shutterstock.com seksan kingwatcharapong/Shutterstock.com Figure 5-6. Keep all shop tools clean and organized. Smaller tools can be stored in cases or drawers. Make sure you return every tool to its correct location. Dmitri Ma/Shutterstock.com
