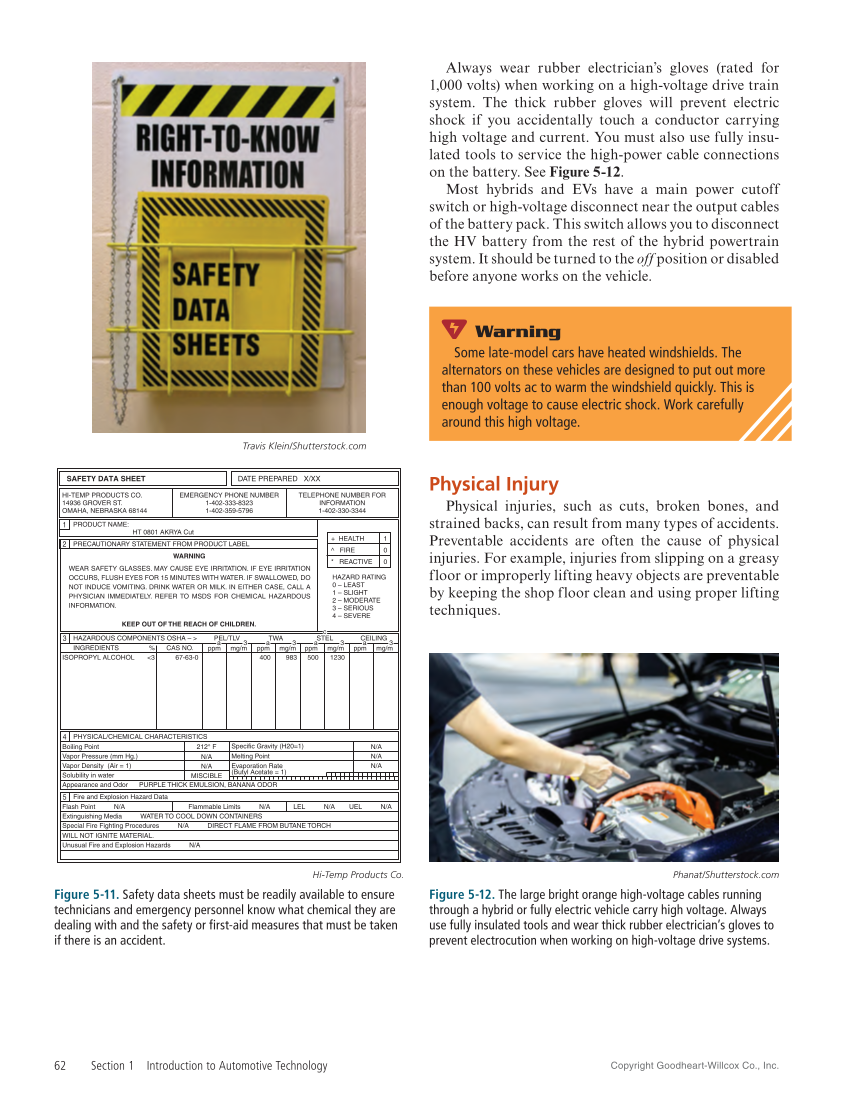

Copyright Goodheart-Willcox Co., Inc. 62 Section 1 Introduction to Automotive Technology Always wear rubber electrician’s gloves (rated for 1,000 volts) when working on a high-voltage drive train system. The thick rubber gloves will prevent electric shock if you accidentally touch a conductor carrying high voltage and current. You must also use fully insu- lated tools to service the high-power cable connections on the battery. See Figure 5‑12. Most hybrids and EVs have a main power cutoff switch or high-voltage disconnect near the output cables of the battery pack. This switch allows you to disconnect the HV battery from the rest of the hybrid powertrain system. It should be turned to the off position or disabled before anyone works on the vehicle. Physical Injury Physical injuries, such as cuts, broken bones, and strained backs, can result from many types of accidents. Preventable accidents are often the cause of physical injuries. For example, injuries from slipping on a greasy floor or improperly lifting heavy objects are preventable by keeping the shop floor clean and using proper lifting techniques. Warning Some late-model cars have heated windshields. The alternators on these vehicles are designed to put out more than 100 volts ac to warm the windshield quickly. This is enough voltage to cause electric shock. Work carefully around this high voltage. +HEALTH ^FIRE *REACTIVE 1 0 0 HAZARD RATING 0 – LEAST 1 – SLIGHT 2 – MODERATE 3 – SERIOUS 4 – SEVERE PRODUCT NAME: HT 0801 AKRYA Cut 1 2 PRECAUTIONARY STATEMENT FROM PRODUCT LABEL WEAR SAFETY GLASSES. MAY CAUSE EYE IRRITATION. IF EYE IRRITATION OCCURS, FLUSH EYES FOR 15 MINUTES WITH WATER. IF SWALLOWED, DO NOT INDUCE VOMITING. DRINK WATER OR MILK. IN EITHER CASE, CALL A PHYSICIAN IMMEDIATELY. REFER TO MSDS FOR CHEMICAL HAZARDOUS INFORMATION. WARNING KEEP OUT OF THE REACH OF CHILDREN. 3 HAZARDOUS COMPONENTS OSHA – PEL/TLV TWA CEILING STEL c INGREDIENTS %CAS NO. ISOPROPYL ALCOHOL 3 67-63-0 a ppm 3 mg/m a ppm 3 mg/m a ppm 3 mg/m a ppm 3 mg/m 400 983 500 1230 SAFETY DATA SHEET DATE PREPARED X/XX HI-TEMP PRODUCTS CO. 14936 GROVER ST. OMAHA, NEBRASKA 68144 EMERGENCY PHONE NUMBER 1-402-333-8323 1-402-359-5796 TELEPHONE NUMBER FOR INFORMATION 1-402-330-3344 4 PHYSICAL/CHEMICAL CHARACTERISTICS Boiling Point Vapor Pressure (mm Hg.) Vapor Density (Air =1) Solubility in water Appearance and Odor PURPLE THICK EMULSION, BANANA ODOR Specific Gravity (H20=1) Melting Point Evaporation Rate (Butyl Acetate =1) 212 F N/A N/A MISCIBLE ° N/A N/A N/A 5 Fire and Explosion Hazard Data Flash Point N/A Flammable Limits N/A LEL N/A UEL N/A Extinguishing Media WATER TO COOL DOWN CONTAINERS Special Fire Fighting Procedures N/A DIRECT FLAME FROM BUTANE TORCH WILL NOT IGNITE MATERIAL. Unusual Fire and Explosion Hazards N/A Hi-Temp Products Co. Figure 5-11. Safety data sheets must be readily available to ensure technicians and emergency personnel know what chemical they are dealing with and the safety or first-aid measures that must be taken if there is an accident. Travis Klein/Shutterstock.com Phanat/Shutterstock.com Figure 5-12. The large bright orange high-voltage cables running through a hybrid or fully electric vehicle carry high voltage. Always use fully insulated tools and wear thick rubber electrician’s gloves to prevent electrocution when working on high-voltage drive systems.
