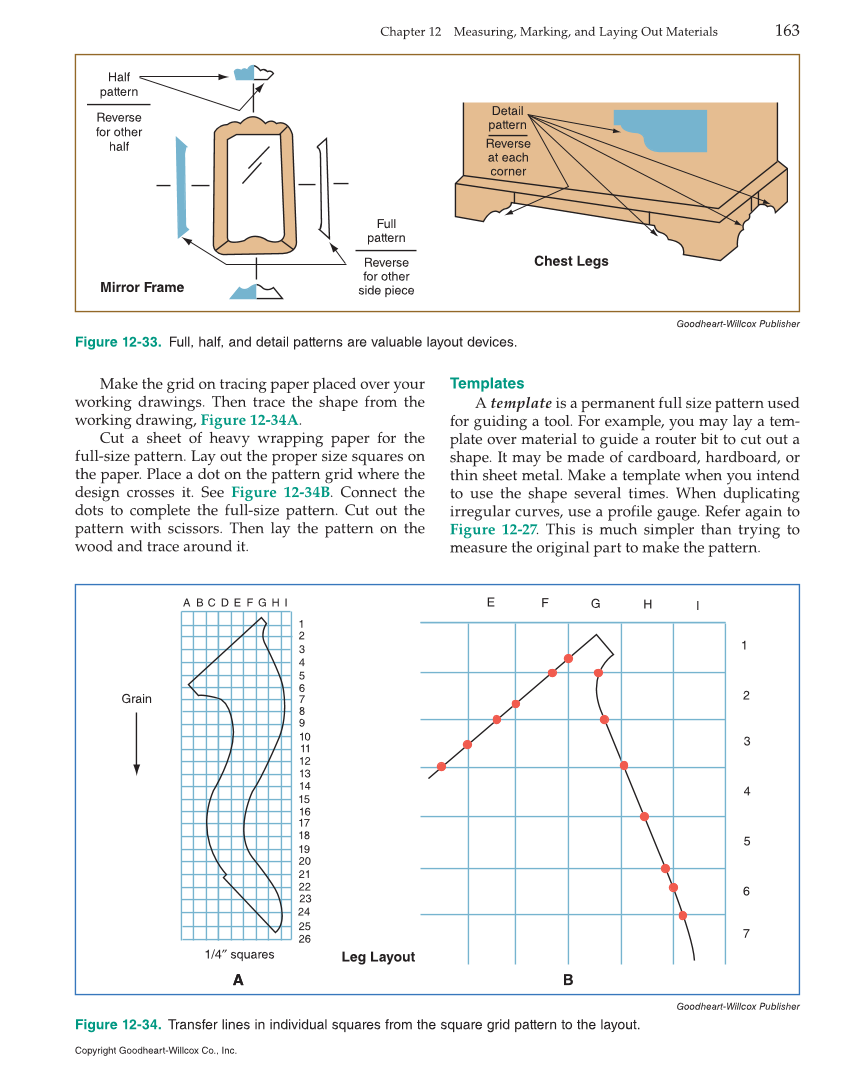

Make the grid on tracing paper placed over your working drawings. Then trace the shape from the working drawing, Figure 12-34A. Cut a sheet of heavy wrapping paper for the full-size pattern. Lay out the proper size squares on the paper. Place a dot on the pattern grid where the design crosses it. See Figure 12-34B. Connect the dots to complete the full-size pattern. Cut out the pattern with scissors. Then lay the pattern on the wood and trace around it. Templates A template is a permanent full size pattern used for guiding a tool. For example, you may lay a tem- plate over material to guide a router bit to cut out a shape. It may be made of cardboard, hardboard, or thin sheet metal. Make a template when you intend to use the shape several times. When duplicating irregular curves, use a profile gauge. Refer again to Figure 12-27. This is much simpler than trying to measure the original part to make the pattern. Goodheart-Willcox Publisher Figure 12-33. Full, half, and detail patterns are valuable layout devices. Goodheart-Willcox Publisher Figure 12-34. Transfer lines in individual squares from the square grid pattern to the layout. Detail pattern Reverse at each corner Half pattern Reverse for other half Full pattern Reverse for other side piece Mirror Frame Chest Legs A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 E F G H I 1 2 3 4 5 6 7 Grain 1/4″ squares Leg Layout A A B Chapter 12 Measuring, Marking, and Laying Out Materials 163 Copyright Goodheart-Willcox Co., Inc.
